OpenLNS CT User’s Guide
163
11. Select an application image and set the options for the initial application state and source of
configuration property values. See Loading a Device Application Image and Setting the Initial
Application Device State and Source of Configuration Property Values for information on setting
these options. Click OK.
12. Click Finish. OpenLNS CT commissions the devices in the Devices to be Commissioned list
and sets the state of their applications. When OpenLNS CT is done commissioning, it returns to

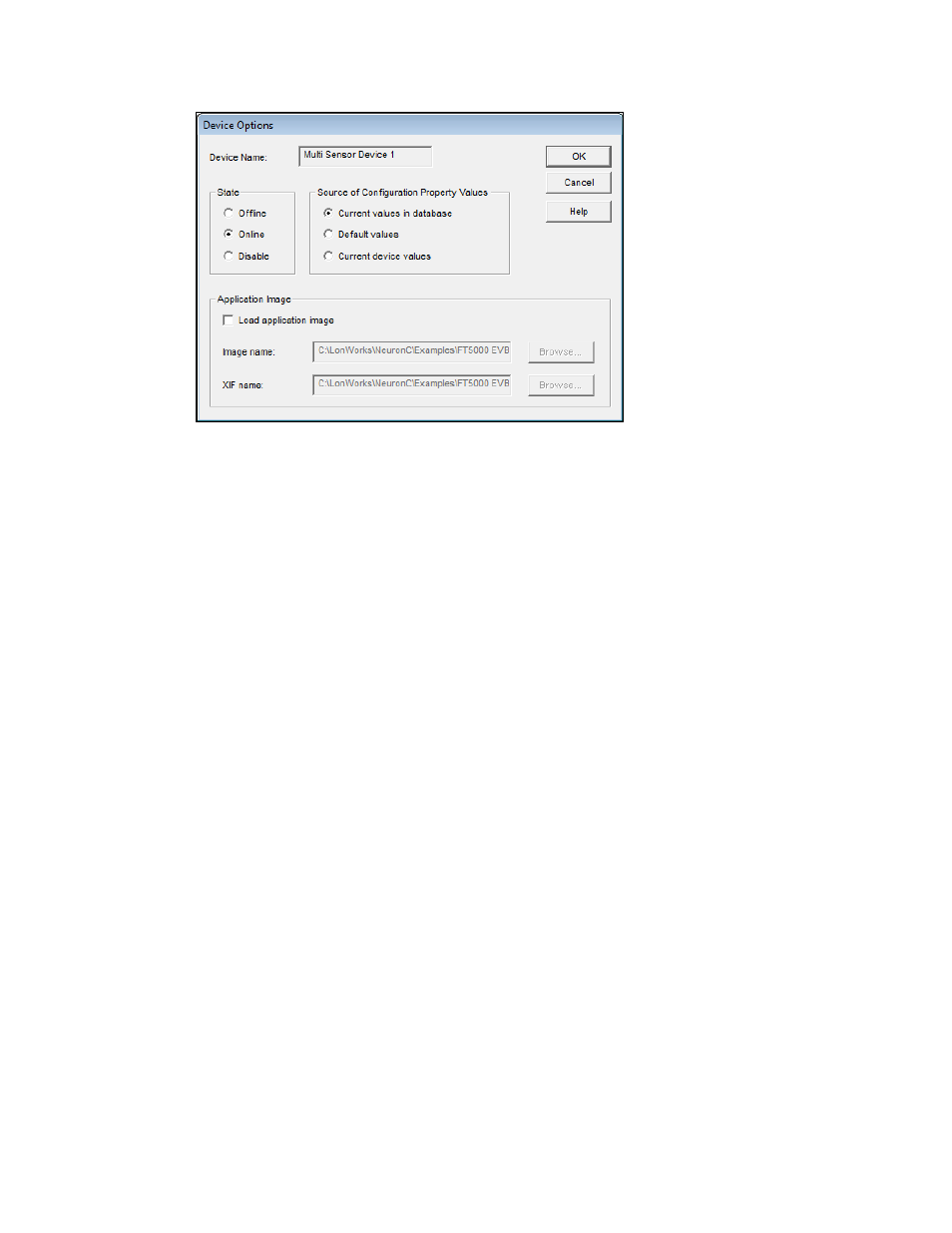

the OpenLNS CT drawing. The device applications will be in a soft offline state, unless you
specified the application state in the Device Options dialog box. The device SmartShapes will be
green indicating that the devices have been commissioned, or crosshatched green if an application
state was not specified or the device application was set offline.
