Initial Set Up and Navigation

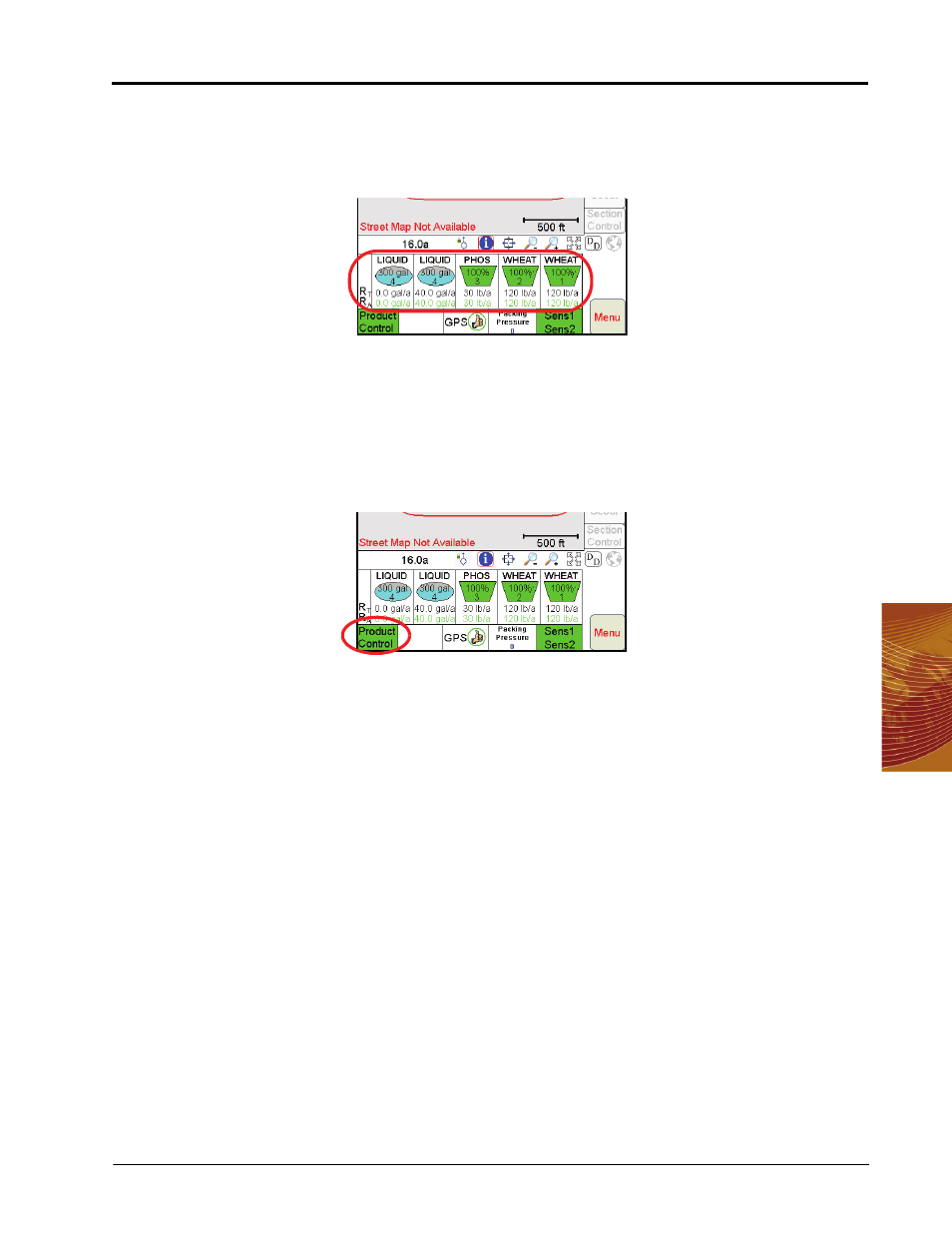

Product Rates Area
The current target (R
T
) and actual (R
A
) application rate is displayed for each product node or control channel in
the product rates area. The product rates area also displays a bin or tank level for each product currently
detected on the CANbus.
Note:
Only products detected on the CANbus will appear in the application rates area. Refer to the Bin
Level Sensor Calibration section on page 34 to calibrate the air cart bin level sensors. See the
Tank Volume section on page 136 for more information on setting the tank or bin levels for
additional products.
Product Control Status Display
The Product Control Status of the CAN system is displayed in this area.
The status indicator displays red if communication with the CANbus system is not available. The status area
will display in yellow symbol if the Viper Pro detects a problem with the CANbus system such as an alarm
condition. The status indicator will display in green during normal operation.
Touch the Product Control Status or indicator to view the CAN Controller Status screen and access the Node
Setup screens when connected to a Raven CANbus system.
Note:
See the Controller Status Screen section on page 58 for an overview of the settings and
information areas displayed on the CAN Controller Status screen. Refer to Review Chapter 8,
Advanced Settings and Features, for more information on the Product Control status and using the
CAN Controller Status screens on the Viper Pro field computer.
