Pressure Transducer
Calibrating the Pressure Transducer
1.
Read the pressure on an analog gauge connected in line with the pressure transducer.
Note:
If no pressure gauge is installed in line with the pressure transducer, bleed or relieve any pressure
applied to the transducer and enter a value of ‘0’ for the pressure value in the procedure below.
2.

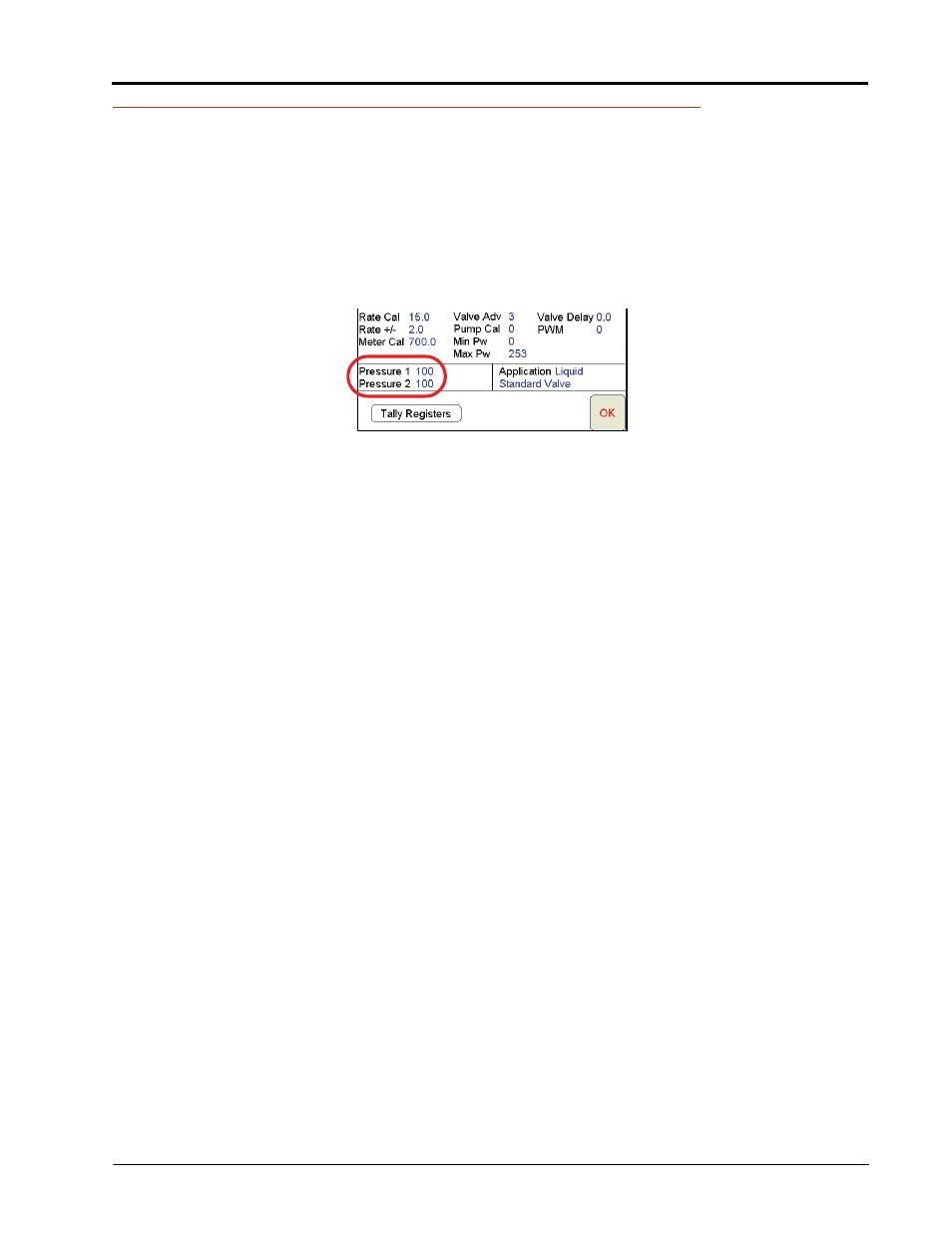

Touch the Pressure area on the CAN Controller Status screen.
Note:
Each product node or control channel has two pressure settings. Use the Next or Prev buttons to
display the correct pressure transducer to calibrate before proceeding.
3.
Touch the Pressure value and use the on-screen keyboard to enter the pressure gauge reading
4.
Touch Set to calibrate the pressure transducer.
5.
Touch OK to return to the CAN Controller Status screen.
