Chapter 9
180 Seed Hawk® Viper Pro™ Installation & Operation Manual

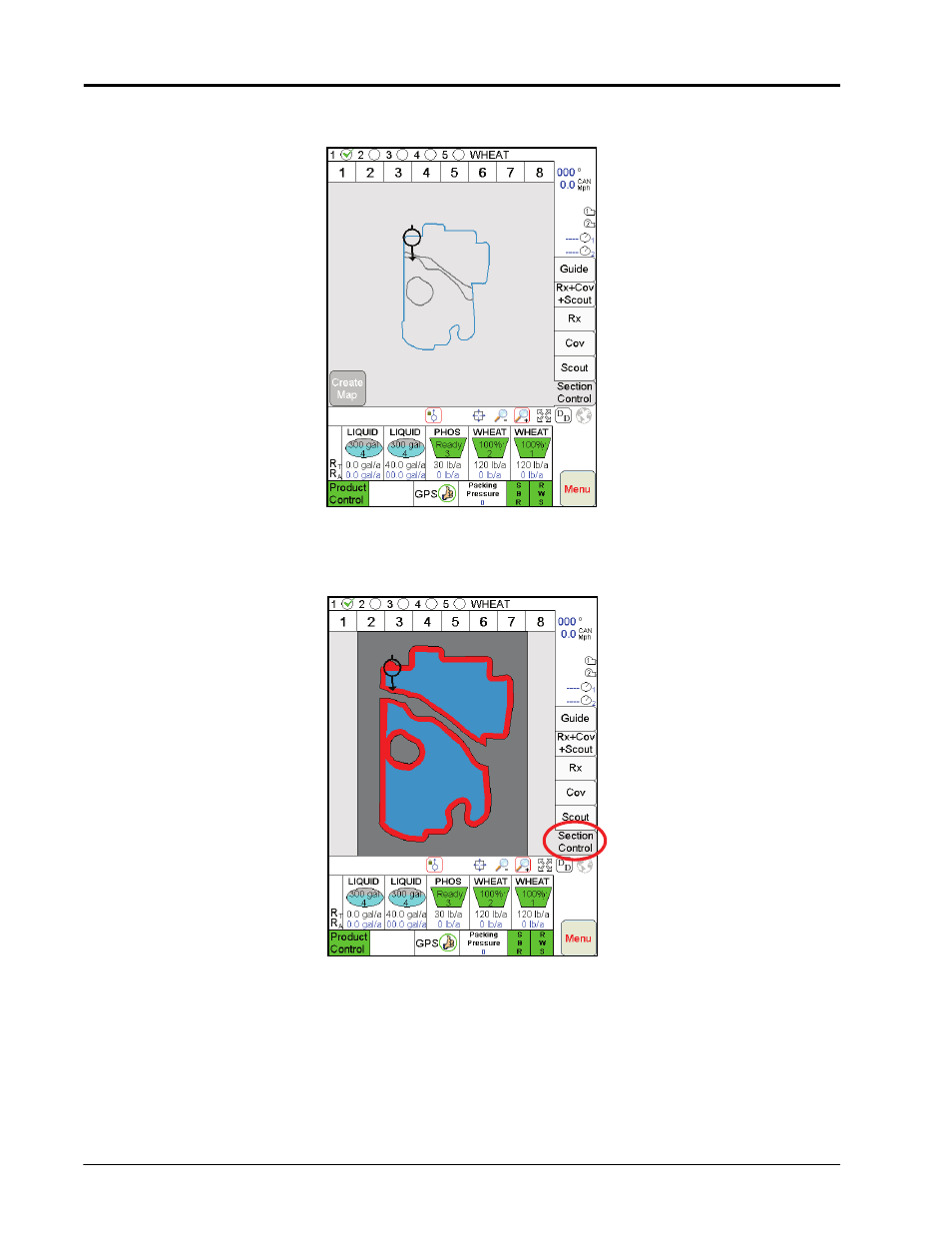

Once all the apply and no-apply zones are created, select the Section Control tab and press the Create
Map button.
The apply and no-apply zones previously created will be converted to an SCT apply/no-apply zone map.
The previously created apply and no-apply zones will be removed from the Scout tab and will appear as an
SCT apply/no-apply map. This map is now available by selecting the Section Control tab. The zones will be
colored according to their type and the default colors previously selected for apply and no-apply zones.
Note:
The Create Map button will only appear when at least one zone has been defined and when there
are no zones in the process of being defined.
