Initial Set Up and Navigation

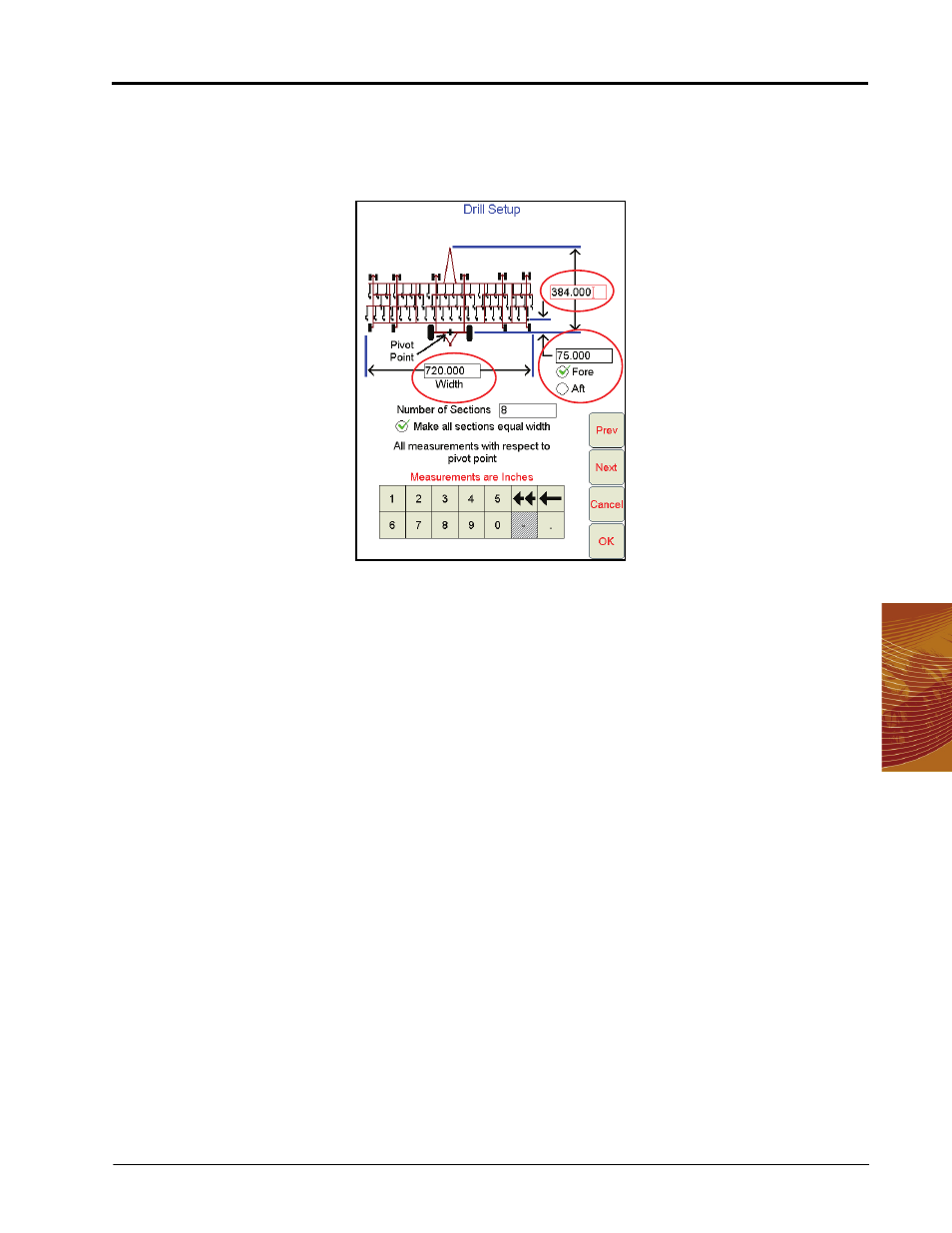

Drill Setup
The Drill Setup screen configures the Viper Pro for the specific drill used with the Seed Hawk system.
Note:
The pivot point of the drill is located between the implement wheels.
1. Enter the total width of the drill as specified by the manufacturer.
2. Measure the distance from the implement hitch to the drill pivot point (center of the implement axle).
3. Measure the fore/aft offset of the drill pivot point (center of implement axle) to the rear most row of openers.
The fore/aft offset must be measured parallel with the direction of forward travel.
4. Select the direction of the opener offset from the implement pivot point. To determine the offset direction, at
the drill pivot point and facing toward the front of the vehicle, are the openers in front (fore) or behind (aft) of
the drill pivot position? Select the direction of the fore/aft offset.
5. Enter the number of sections on the drill.
Note:
When operating a Base system, the number of configured sections must be set to 1, 2, or 5
sections.
6. If the sections on the drill are equal width, select the Make all Sections Equal Width option to divide the
implement width equally between the number of sections.
7. Touch the Next button to proceed to the Section Width Setup screen.
