Chapter 2
10 Seed Hawk® Viper Pro™ Installation & Operation Manual

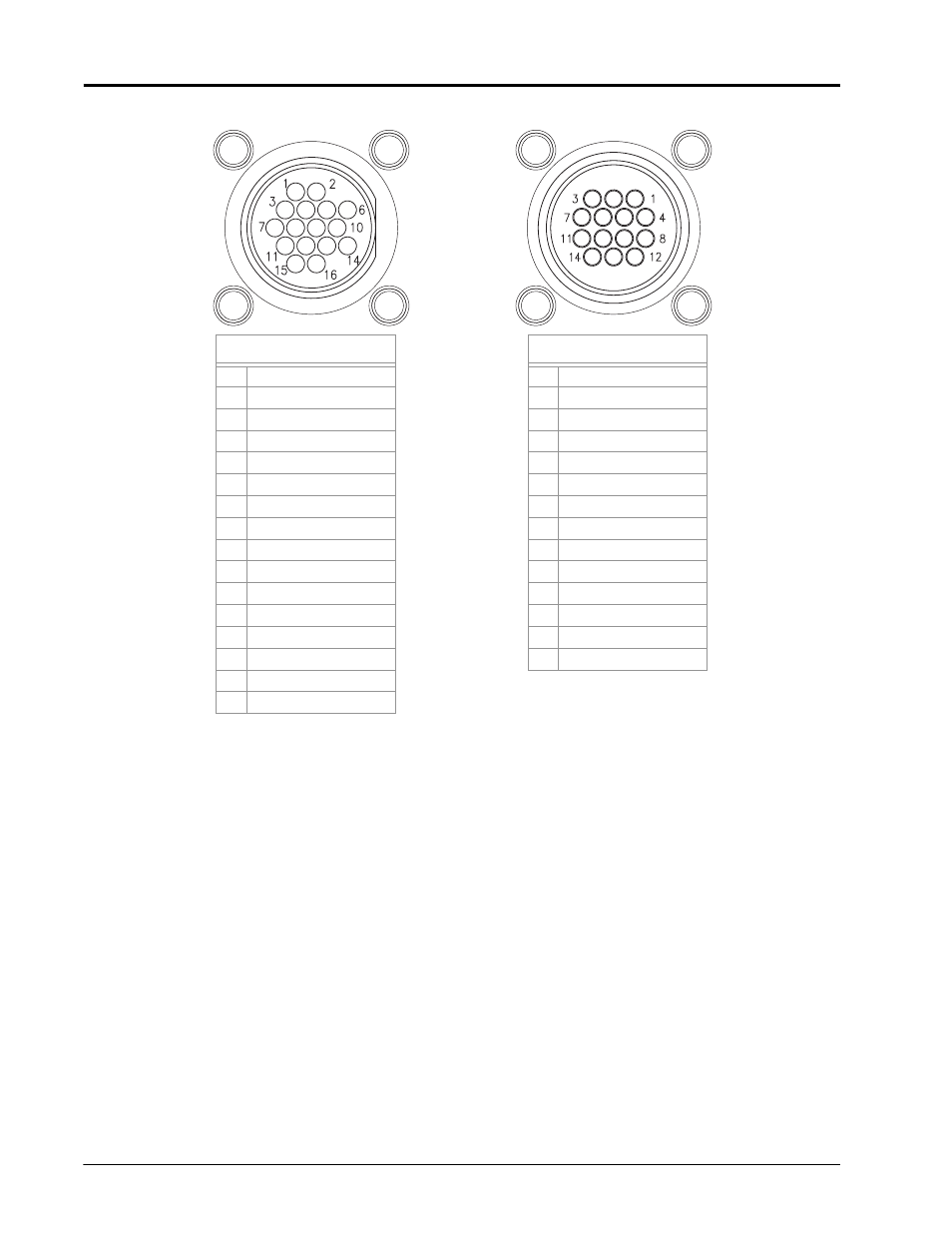

Amp Connector Pin Definitions
Main Amp Connector Auxiliary Amp Connector
1. Battery Negative 1. Auxiliary DSR
2. Ext. Switch 2. Ext. Switch
3. CAN Hi 3. CAN Hi
4. CAN Lo 4. CAN Lo
5. DGPS Receive 5. Auxiliary DCD
6. DGPS Transmit 6. Not Used
7. DGPS CTS 7. Auxiliary Receive
8. DGPS RTS 8. Auxiliary Transmit
9. Console Transmit 9. Auxiliary CTS
10. Console Receive 10. DTR
11. RS232 Ground 11. Auxiliary RTS
12. Console CTS 12. RS232 Ground
13. Console RTS 13. Not Used
14. + 12 V Ignition 14. Radar Out
15. + 12 V Switched
16. Battery Positive
Auxiliary Amp
Connection
Main Amp
Connection
