Configuring the Lightbar Display
When the on-screen or external lightbar options are enabled, the Viper Pro field computer may be used to
configure the lightbar display. These settings can help the operator set the accuracy of the lightbar for different
operations or display preferences.

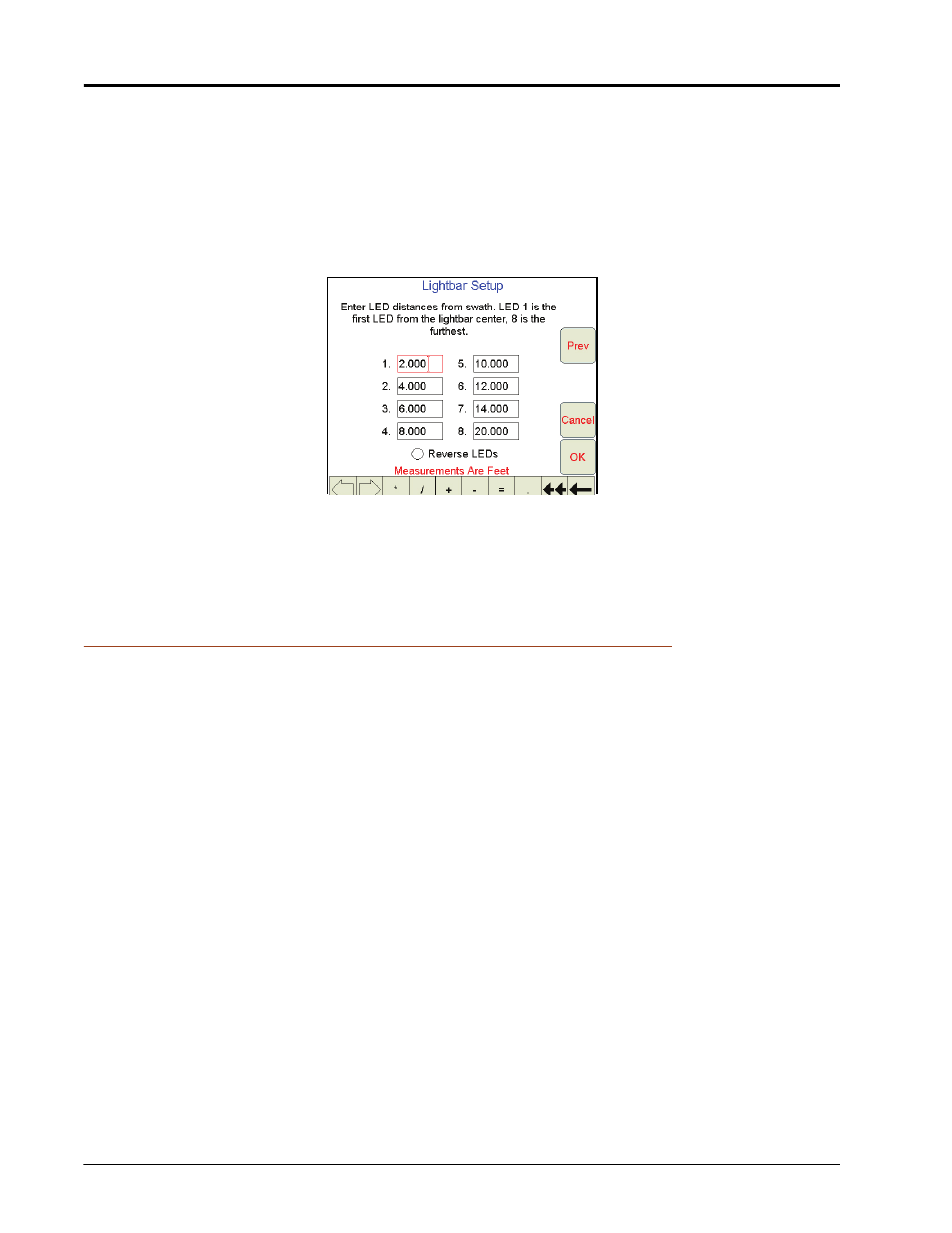

1. To configure the lightbar guidance features from the Viper Pro, touch Menu, then Setup, and Lightbar.
Touch the Next button. Review the on-screen description of the LED values and enter the desired distances
from the swath required to illuminate the lightbar.
2. Standard lightbar operation will illuminate the lightbar in the direction of the guidance path from the current
vehicle position. In this mode, the operator will need to steer toward the lights to get back onto the guidance
path. To reverse the lightbar display, select the Reverse LEDs option. This mode will require the operator to
steer away from the illuminated lights. Select the option that best suited for the operator.
Section Setup Wizard
The applicator boom or implement section configuration is required to set up the Viper Pro system to monitor or
control product application. Refer to the Section Setup section on page 39 for a detailed description of the
boom or implement setup procedure.
