Chapter 4
50 Seed Hawk® Viper Pro™ Installation & Operation Manual

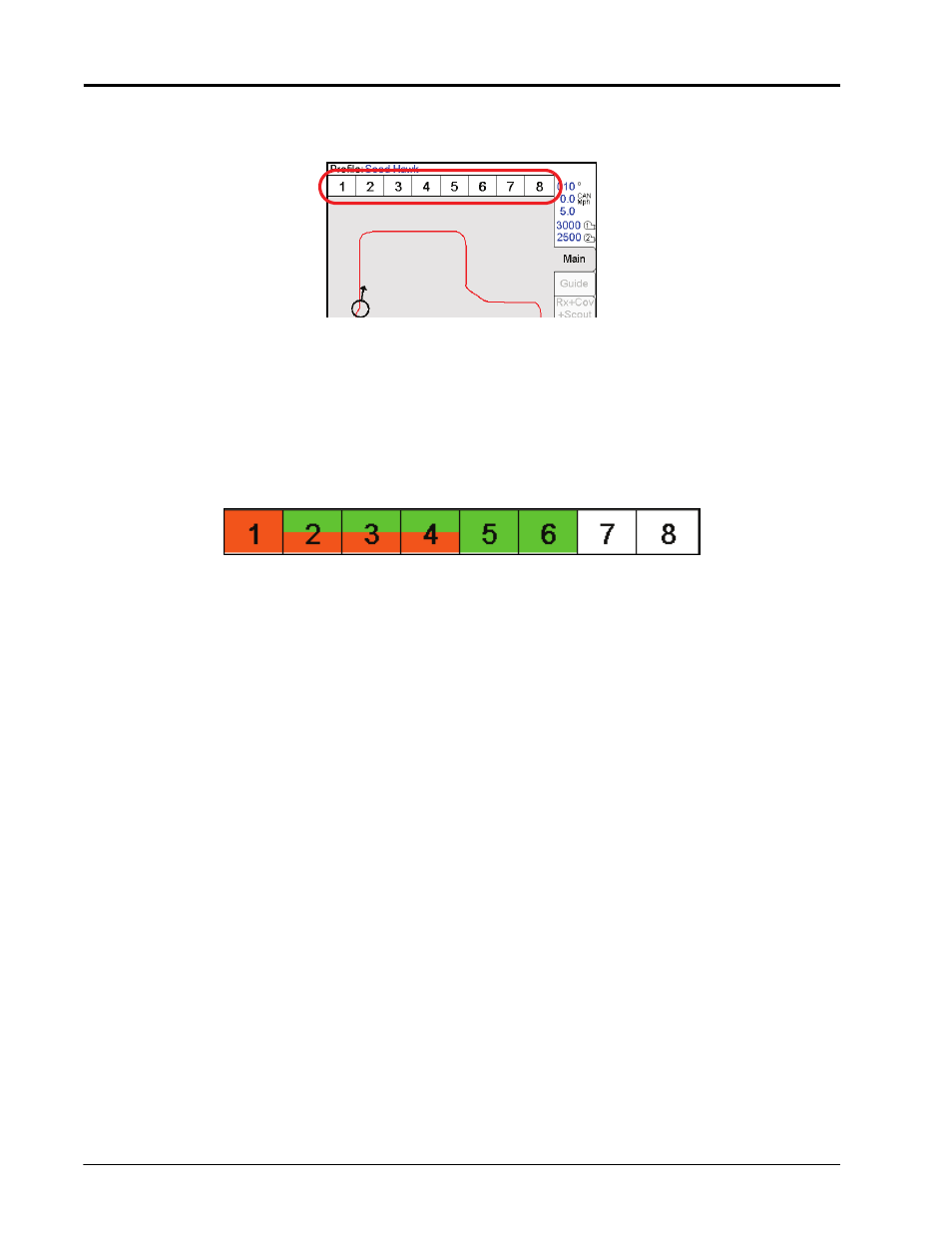

Section Status Indicators
The Section Status area displays the configured sections and their current status.
Note:
For more information on configuring the sections and vehicle, see Section Setup section on
page 39. Touch within the Section status area to configure the section control settings and Seed
Hawk switch box. Refer to Chapter 9, Sectional Control Technology™ (SCT), for detailed
configuration instructions.
The status indicators display the current status of the meter gates and openers for each section.
Section Off. Any sections switches toggled to the off position will display a white background for that section
(sections 7 and 8 above). This indicates that, for this section, all meter gates are closed and the openers are
up.
Section On. A green section display (sections 5 and 6 above) indicates that the section switch is in either the
on or SCT position and that the meter gates are open and the openers are in the ground.
Note:
Sectional Control will not automatically control meter gates and openers unless the section switch
is in the SCT position. See Chapter 9, Sectional Control Technology™ (SCT) for more information
on the status indicators with the SCT and Base systems.
Meter Gates. The upper half of each section indicator displays the status of the meter gates for that section. If
any one of the meter gates for product 1, 2, or 3 is open for that section, this area will appear green. If the
section switch is in the SCT position, and the SCT system is enabled, the meter gates indicator displays red for
any sections for which all gates are closed.
Openers. The lower half of the section status display shows the current status of the openers. When the
opener is in the ground, the lower half will display green. If the section switch is in the SCT position, and the
SCT system is enabled, the openers indicator will display red if the openers for that section are out of the
ground, or in the process of lowering or lifting.
Gates
Openers
Section
Switch Off Section On
SCT Position
(Section Enabled/
Not Active)
