8
Manual No. 016-3001-003 159
Advanced Settings and Features
2. Select the appropriate preset to begin configuration of the GPS communication port.
Note:
Touch the View Data button to display the actual NMEA strings received by the field computer.
NMEA strings will not be displayed if the GPS Comm Port Setup does not match the
communication settings of the connected DGPS receiver.
3. Refer to the following sections for details on completing the GPS Comm Port Setup for the available preset
settings.
Generic (Non-Raven) GPS Setup
Select the Generic GPS option to configure the Viper Pro to communicate with the following receivers:
• Raven RPR 410
• Raven Phoenix 300
• a non-Raven DGPS receiver
Note:
The DGPS receiver must be powered up and connected to the ‘GPS Receiver/DGPS’ connector
on the Viper Pro main interface cable (P/N 115-3001-011). The receiver must also output the GGA,
VTG, and either the RMC or ZDA NMEA messages to communicate properly with the Viper Pro.

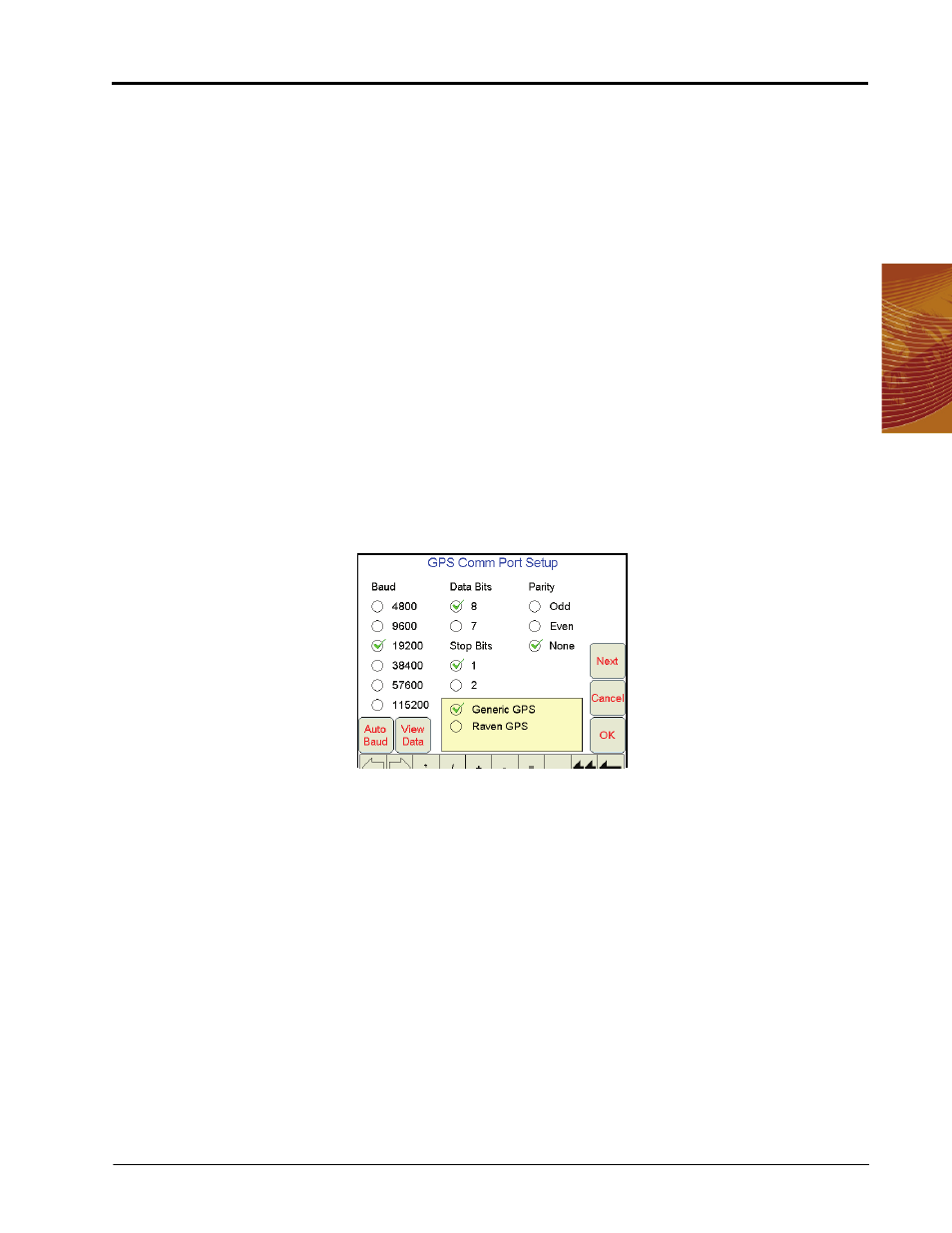

1. To configure the Generic GPS preset from the Viper Pro main screen, touch Menu, then Setup, and Comm
Ports. The GPS Comm Port Setup screen displays.
2. Select the Generic GPS option.
3. Touch the Auto Baud button to allow the Viper Pro to attempt to establish communication with the DGPS
receiver automatically.
a. If the field computer is able to receive messages from the connected receiver, touch OK to finish the
GPS Comm Port Setup.
b. If no communication is established, the Viper Pro will display a ‘Not Found’ message. Touch OK and
re-check the receiver and cables and repeat step 3.
If the Viper Pro is still unable to communicate with the receiver, refer to Chapter 13, Troubleshooting
the Viper Pro System, or contact the receiver manufacturer for additional assistance.
c. If an optional SmarTrax or SmartSteer, automated steering system, will be used with the Viper Pro, for
SmarTrax software versions:
• 3.2 and lower, set the baud rate to 38400.
• higher than 3.2, set the baud rate to 115200.
