Manual No. 016-3001-003 241
PWM Calibration Assistance

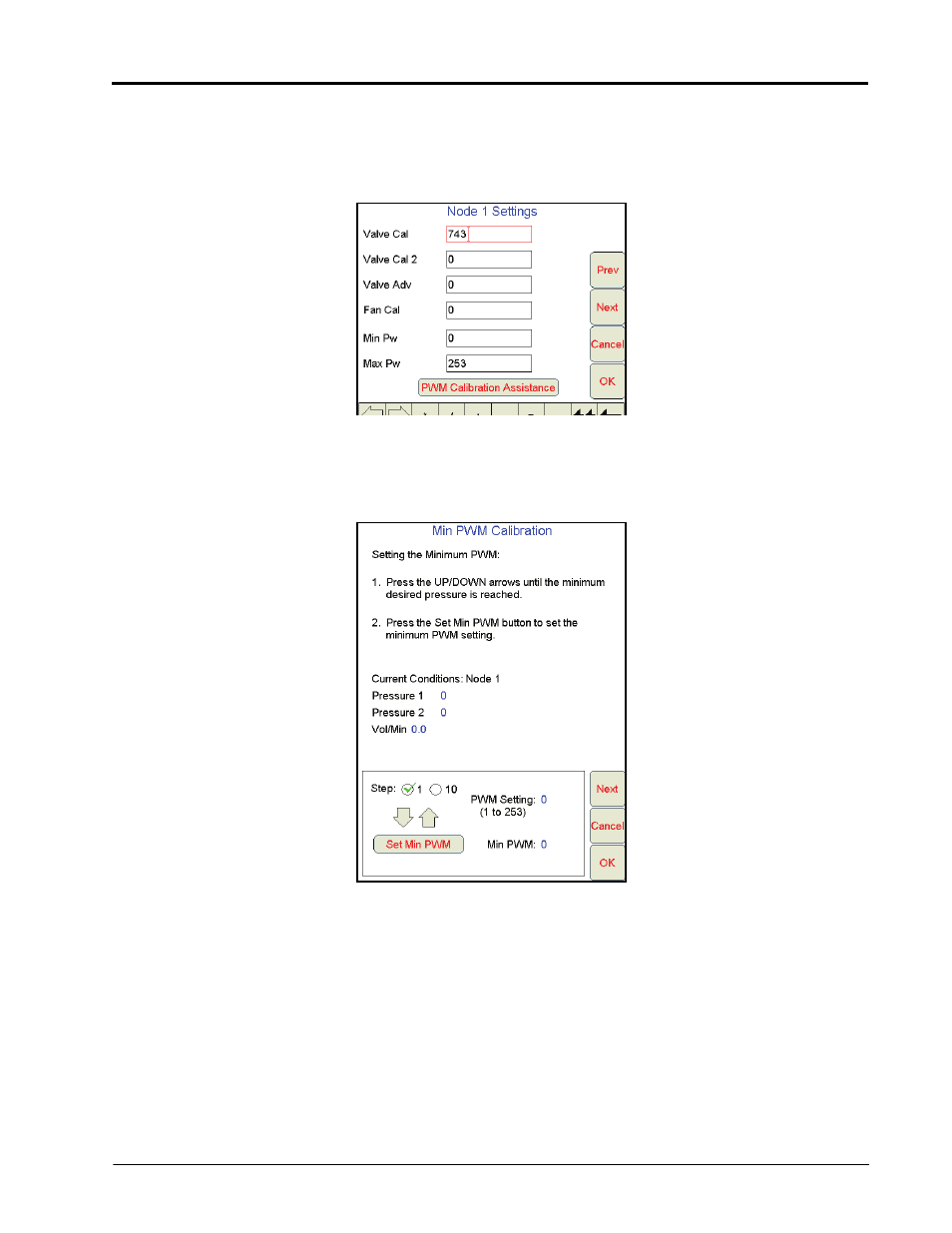

1. Touch within the Product Control Settings area on the CAN Controller Status screen. The first Node 1
Settings screen will display.
2. Touch Next.
Note:
The PWM Calibration Assistance button will only appear if either PWM or PWM Close is the
selected valve type. See the Application and Control Valve Type(s) section on page 32 for more
information on the valve type selection.
3. Press the PWM Calibration Assistance button. The Min PWM Calibration screen will be displayed.
Note:
The PWM Calibration Assistance wizard screens are displayed with the field computer in liquid
mode.
