Auto Point Entry. The Viper Pro automatically records points along the driven path to create the boundary in
real-time. The field computer will also automatically close the field boundary when the vehicle comes within
one boom or implement width of the starting point. The operator may also close the boundary manually if
desired.
Note:
Before closing a boundary manually, check the current vehicle position in relation to the point
where recording of the boundary was started.
The Viper Pro will create a straight line from the boundary starting point to the current vehicle
location. The field area within the marked boundary will be included in the zone while area outside
of this boundary will not be included.
Manual Point Entry: Rubber Banded Zone. This method allows the operator to set boundary points as the
machine drives along the boundary. When the operator closes the boundary, the Viper Pro will automatically
connect and smooth the boundary line when completing the boundary path.
5. Select an offset for the boundary.
a. Selecting the Left offset places the reference point for the boundary at the left boom tip or the left side
of the implement.
b. Selecting the Right offset places the reference point at the right of the boom or implement.
c. Select the Do Not Shift option to record the boundary at the center of the boom or implement.
6. Touch OK. The Viper Pro will begin plotting points or recording manually input points for the boundary
based upon the selected Point Entry mode.
Note:
Refer to Chapter 9, Sectional Control Technology™ (SCT), for detailed SCT setup and operation
and for detailed information on creating apply/no-apply zones.
7. Drive the perimeter of the field while keeping the selected reference point at or near the field boundary.
8. To close the field boundary, select one of the following options:
• Continue driving the field boundary until the Viper Pro automatically closes the boundary. Viper
Pro will automatically close the boundary if the vehicle returns to a position within one boom or
implement width of the boundary start point.

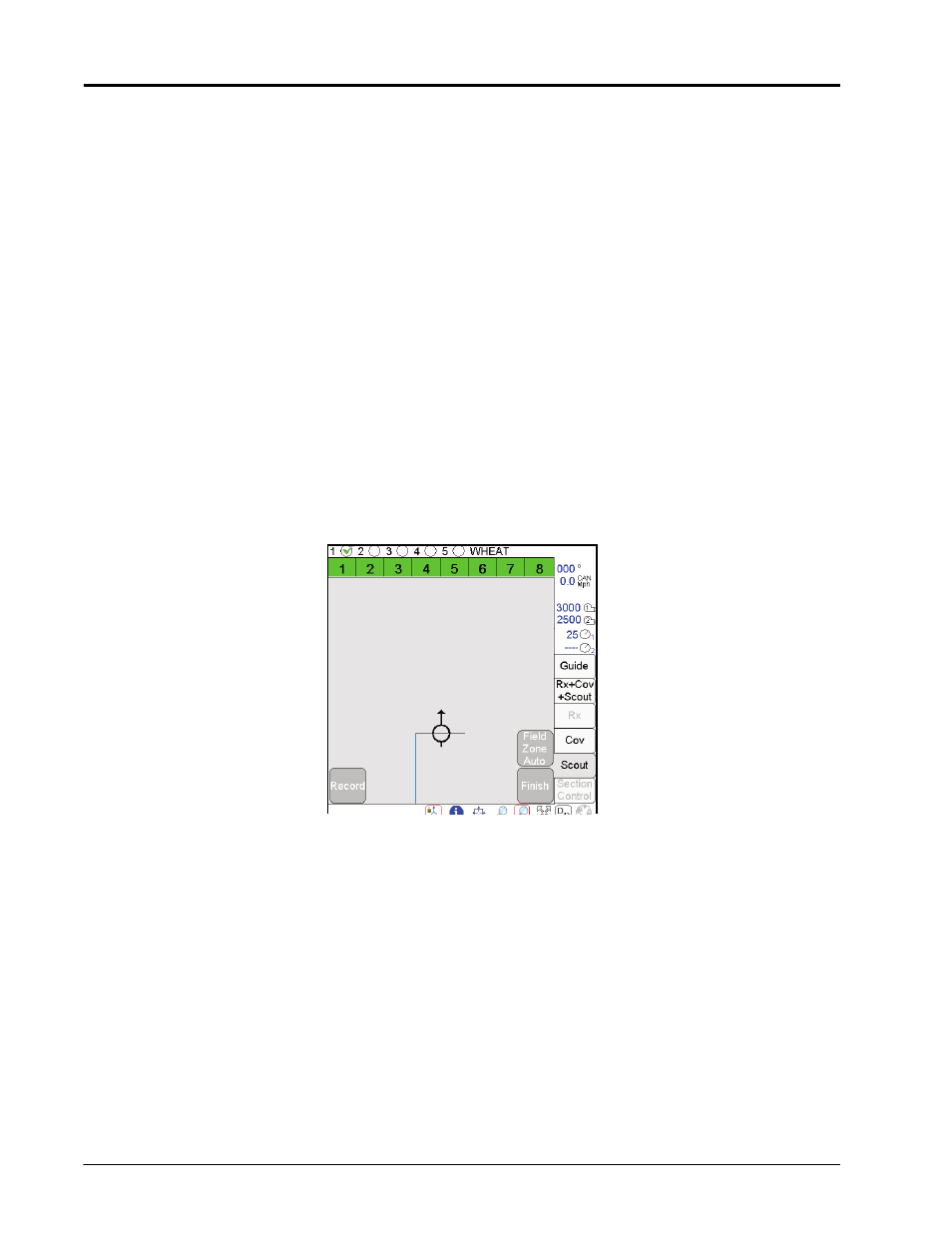

• Touch the Finish button in the map area and select the ‘Field Zone Auto’ button to manually
close the field boundary. Viper automatically connects the boundary line from the current
position to the boundary starting point.
