10
Manual No. 016-3001-003 185
Remote Calibration Console
4. Press the Start key.
5. Continue dispensing product until a sufficient weight is in the weight box or the weight box is full.
6. Press the End key to complete the calibration.
Note:
Press the Stop key during the calibration process to pause the calibration and stop the metering
rollers if necessary. While paused, press Start key to resume the catch test. It is recommended to
run the catch test without pausing the calibration to get the most accurate results.
Press the Cancel key to stop the calibration process and return to the calibration screen without
entering a cal weight.
7. Weigh the product dispensed (minus the weight box) and proceed to the Cal Weight section to complete the
calibration process.
Cal Weight

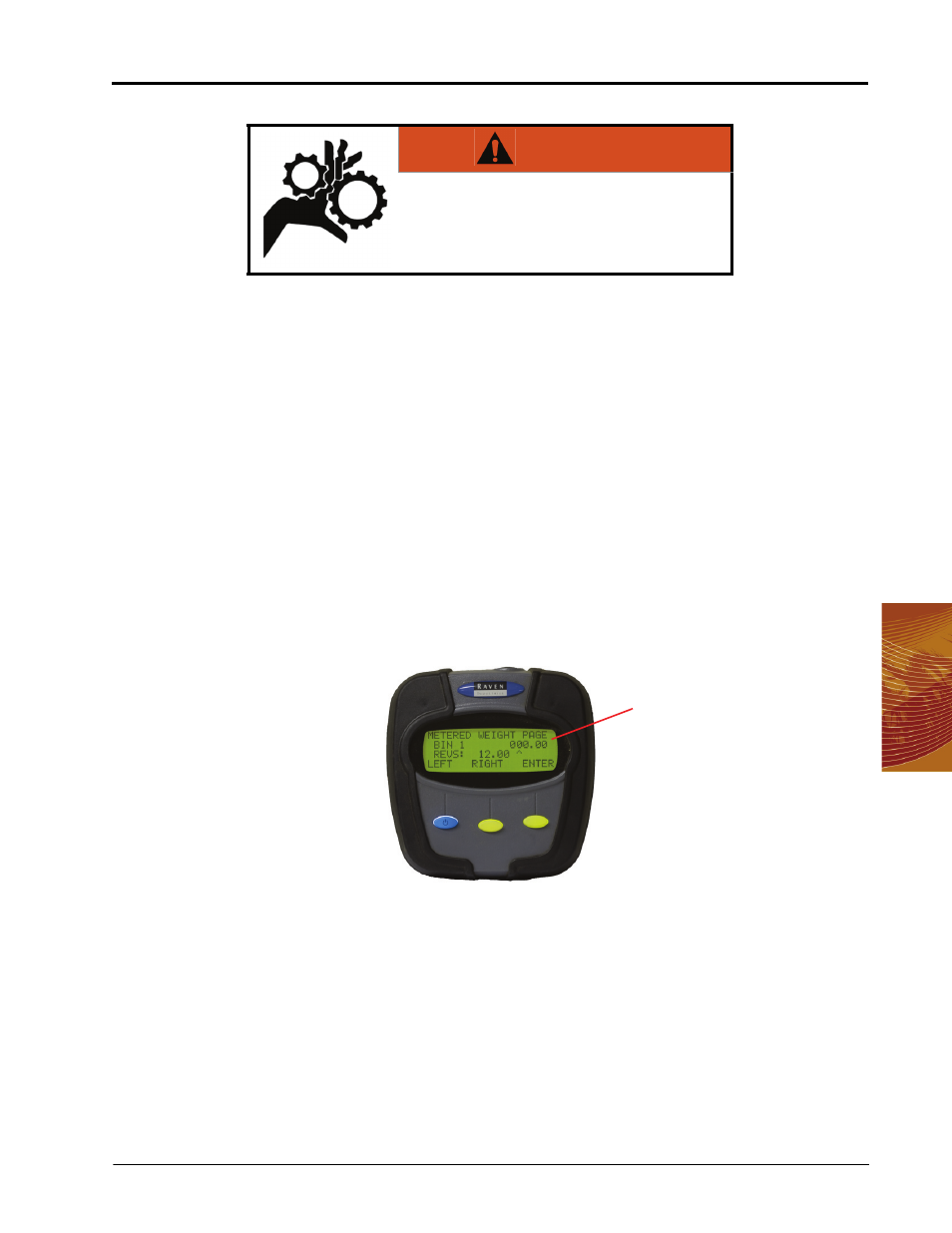

The Metered Weight Page will display automatically at the end of the catch test procedure. This screen
displays the number of metering roller revolutions detected during the catch test and allows the operator to
enter the weight of product dispensed to calibrate the Seed Hawk system. To enter the cal weight value:
1. Use the Left and Right keys to move the cursor below the bin cal weight value to the first digit of the
measured cal weight and press the Enter key.
WARNING
The metering rollers will begin turning during
the calibration procedure. Keep away from
moving components and alert anyone around
the air cart when performing the calibration
process.
Product or Cal
Weight Value
