Seed Hawk Raven 2012 - Manual (Page 103)

5
Manual No. 016-3001-003 91
Using the Seed Hawk® Viper Pro System
Importing a Field Boundary
If a boundary has been recorded previously and is in the shapefile format (.shp), the boundary may be
imported into the current job.
Note:
Shapefiles must contain only one polygon. For help using the File Maintenance feature, see
Chapter 12, File Maintenance and Editing Reports.

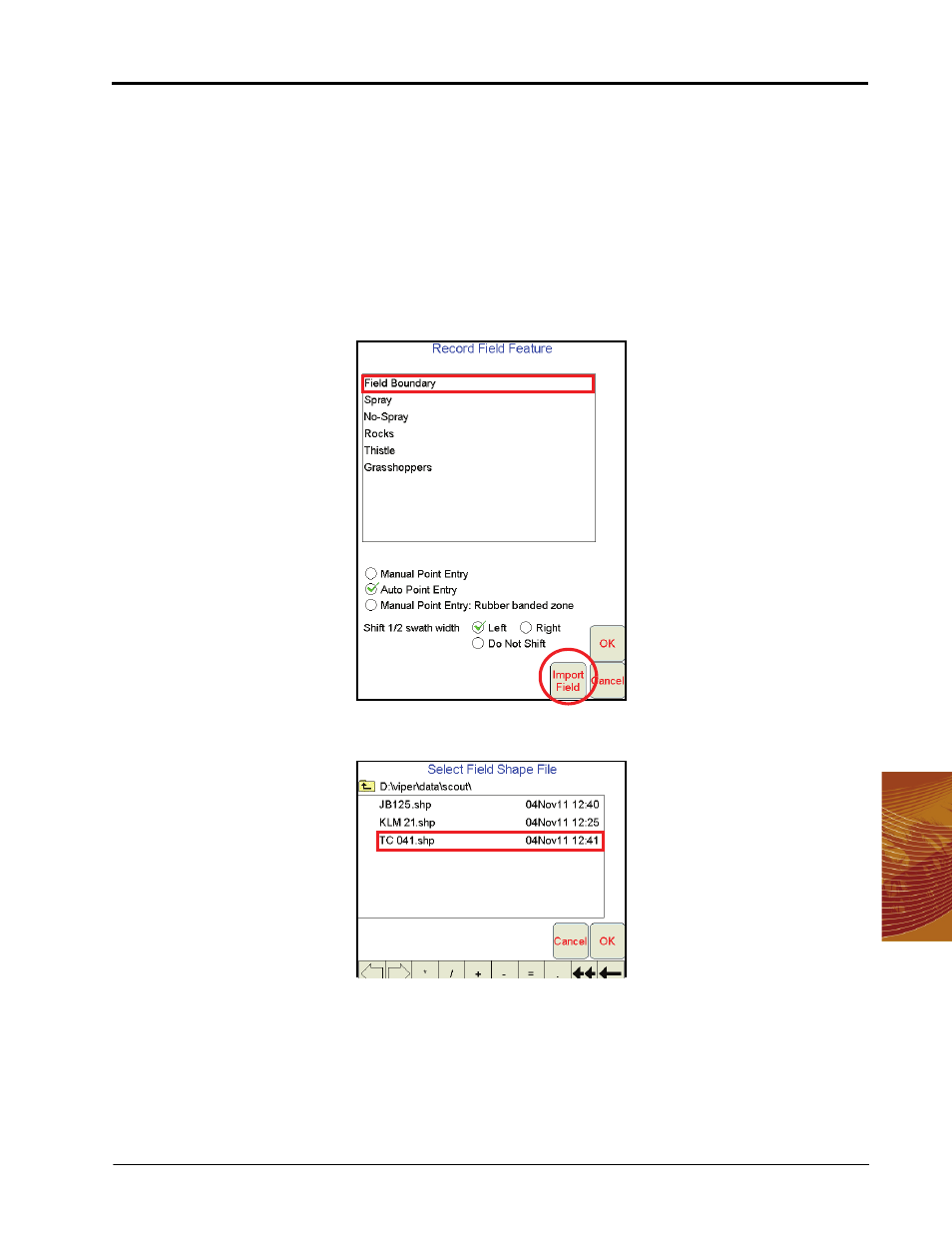

How to Import a Field Boundary
1. Select the Scout tab.
2. Touch Record, then Zone. The Record Field Feature screen displays.
3. Select ‘Field Boundary’ and then touch the Import Field button. The Select Field Shape File screen
displays.
