Chapter 7
118 Seed Hawk® Viper Pro™ Installation & Operation Manual
Using Product Chaining
Note:
If starting an AgX job using the product chaining feature, a multiproduct VRA key will be required.

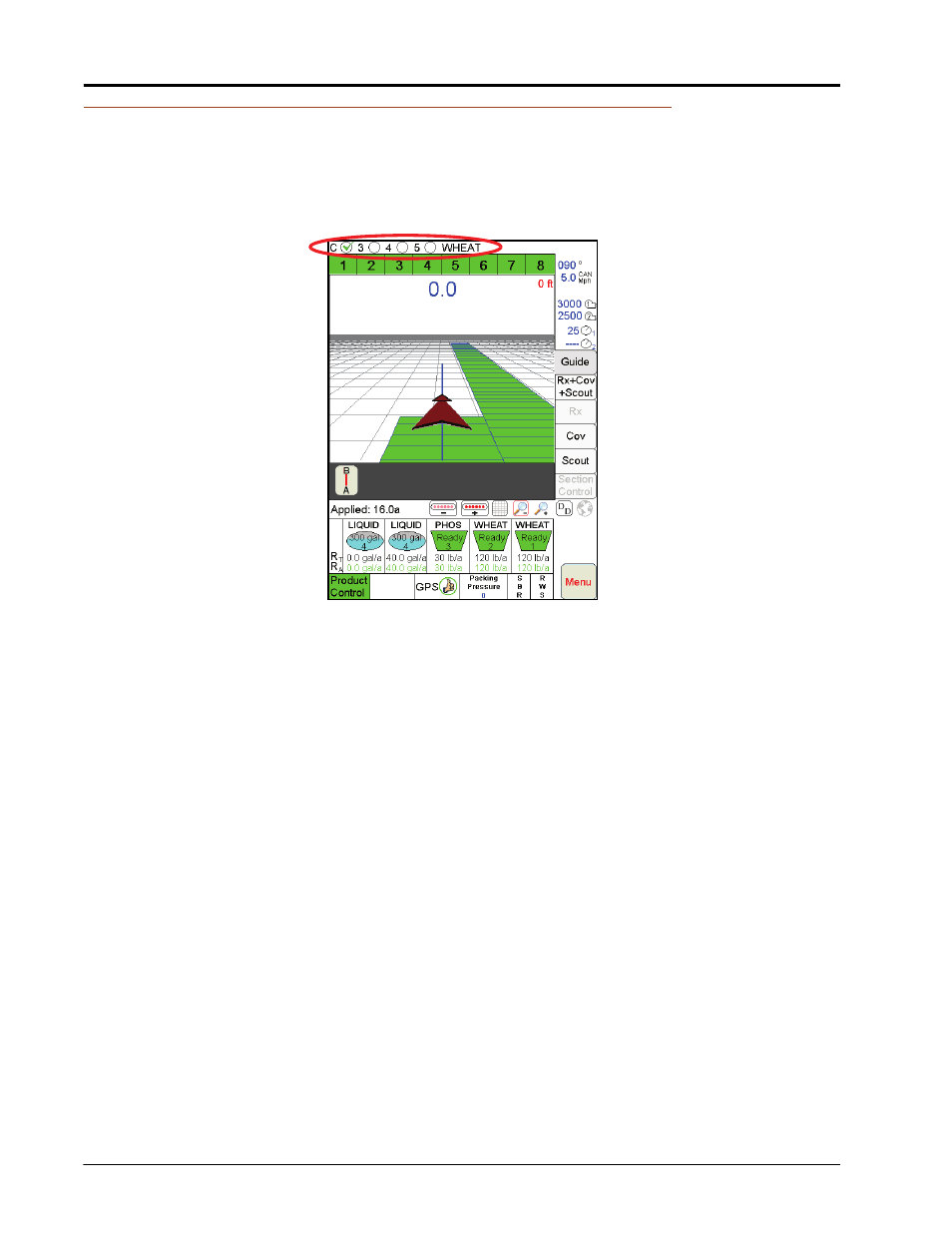

Chained products will be displayed in the Application Rates area and by the radio buttons at the top of the
Viper Pro main screen.
The product chain is denoted by the letter ‘C’ in the above areas. The superscript type indicates the active
product node or control channel in the chain. The letter ‘C’ will change color if the ‘Enable Auto Advance’
option has been selected. If so, the ‘C’ will be black. If not, the ‘C’ will be red.
Note:
The “Application Rates” heading will be hidden if multiple product nodes or control channels are
enabled to allow all information to be displayed on the main screen.
Application Rates Area
The target rate and control mode for each product in a product chain may be adjusted using the same tools
available for nodes or channels controlled individually. Review the Application Rates Area section on page 81
for details on the information displayed in this area and on setting the target rate for product nodes or control
channels.
Note:
Touching the “Chain” button in the Application Control prompt will display the settings screen for
the first node in the chain. Each node must be set up separately for the chained product
application.
