Watlow EZ-ZONE ® RMC Module • 33 • Chapter 2 Install and Wire
D E
A B
D E
A B
S M
1 9
2 10
3 11
4 12
5 13
6 14
7 15
8 16
RM
1
EZ ZONE R
S
lo
t C
98 99 CC CA CB CZ CX CY
98 99 CC CA CB CZ CX CY
Use twisted pair wires such as Cat 5 cabling.
Do not route with power carrying conductors.
LINX
Model 485TB-2W
U
S
B
A(-)
A(-)
B(+)
B(+)
GND B B electronics &
TM U
USB Serial Conversion
0847-0326-0000

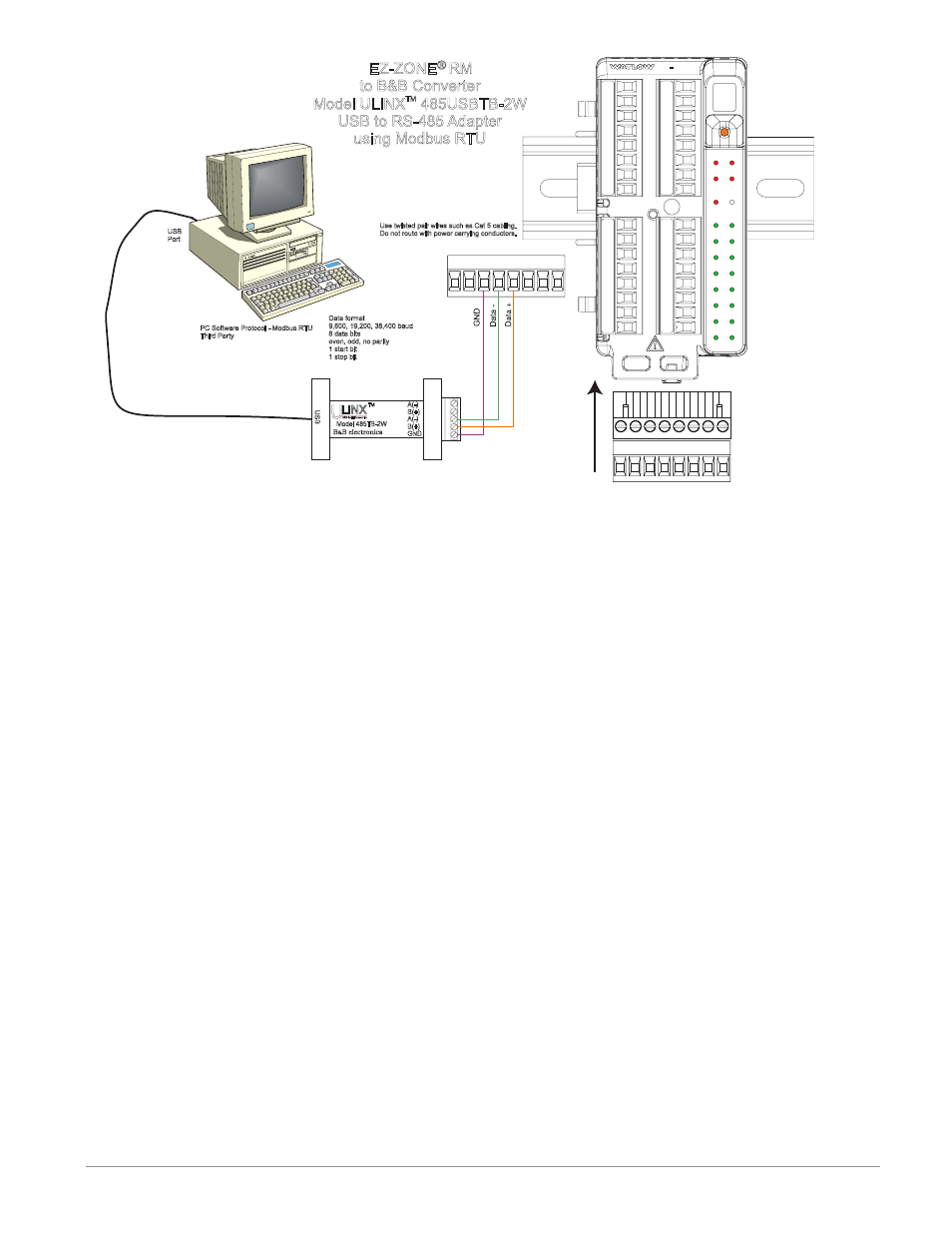

EZ-ZONE ® RM
to B&B Converter
Model ULINX 485USBTB-2W
USB to RS-485 Adapter
using Modbus RTU
TM
USB
Port
Data format
9,600, 19,200, 38,400 baud
8 data bits
even, odd, no parity
1 start bit
1 stop bit
PC Software Protocol - Modbus RTU
Third Party
Note:
Do not leave a USB to EIA-485 converter connected to Standard Bus without power (i.e., disconnecting the USB
end from the computer while leaving the converter connected on Standard Bus). Disturbance on the Standard
Bus may occur.
Note:
When connecting the USB converter to the PC it is suggested that the Latency Timer be changed from the de-
fault of 16 msec to 1 msec. Failure to make this change may cause communication loss between the PC running
ZE-ZONE Configurator software and the control.
