Watlow EZ-ZONE ® RMC Module • 170 • Chapter 7 Features
In the previous screen shot the RMC is shown high-
lighted to bring greater clarity to the control in focus.
Any EZ-ZONE device on the network will appear in
this window and would be available for the purpose
of configuration or monitoring. After clicking on the
control of choice simply click the next button once
again. The next screen appears below.

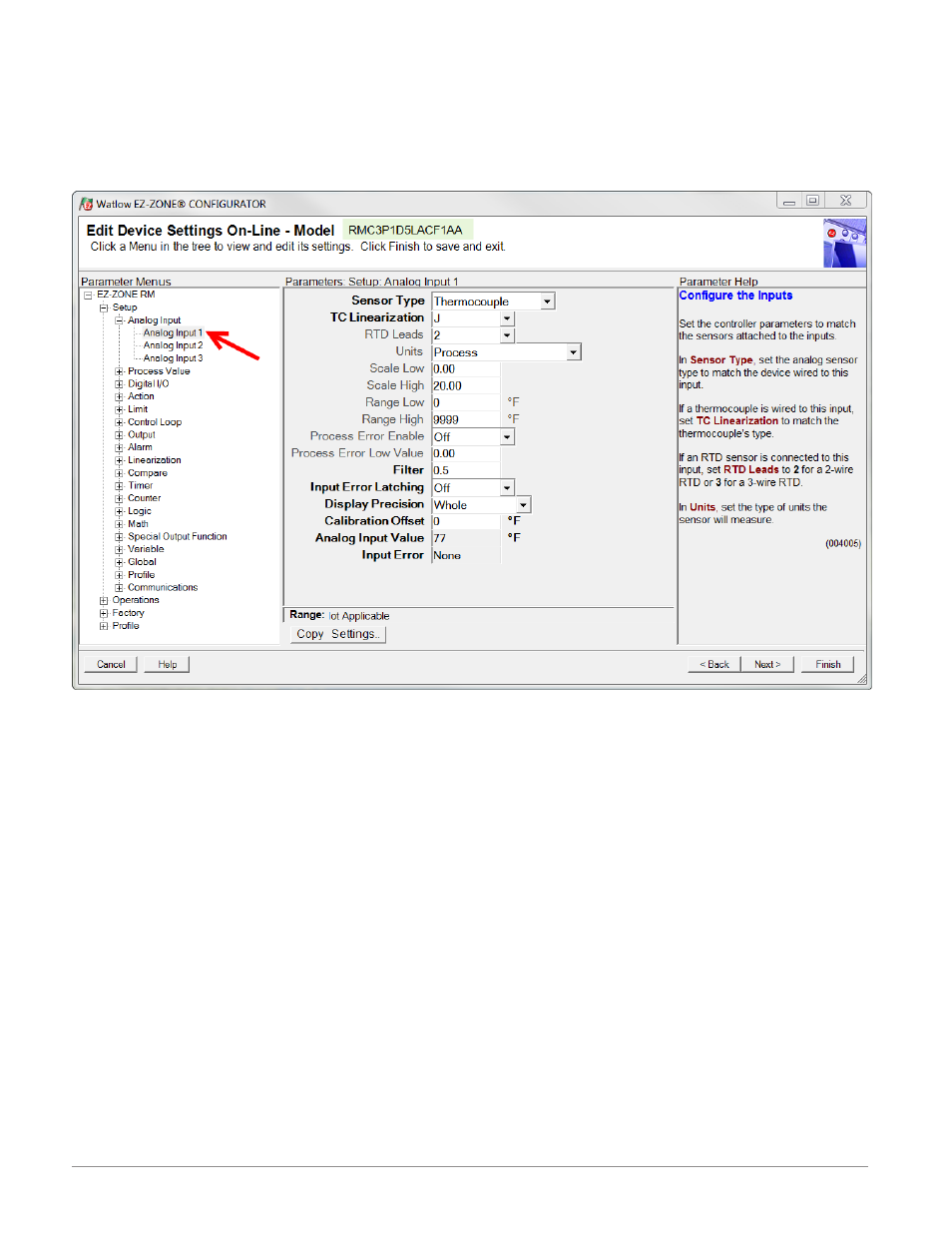

In the screen shot above notice that the device part
number is clearly displayed at the top of the page
(green highlight added for emphasis). When multiple
EZ-ZONE devices are on the network it is important
that the part number be noted prior to configuring so
as to avoid making unwanted configuration changes
to another control.
Looking closely at the left hand column (Parameter
Menus) notice that it displays all of the available
menus and associated parameters within the control.
The menu structure as laid out within this software
follows:
- Setup
- Operations
- Factory
- Profile
Navigating from one menu to the next is easy and
clearly visible. Simply slide the scroll bar up or down
to display the menu and parameter of choice. As an
alternative, clicking on the negative symbol next to
Setup will collapse the Setup Menu where the Op-
erations Menu will appear next and perhaps deliver
more clarity for the area of focus by not displaying
unwanted menus and parameters. Once the focus is
brought to an individual parameter (single click of
mouse) as is the case for Analog Input 1 in the left
column, all that can be setup related to that param-
eter will appear in the center column. The grayed out
fields in the center column simply mean that this
does not apply for the type of sensor selected. As an
example, notice that when TC Linearization is select
-ed, RTD Leads does not apply and is therefore
grayed out. To speed up the process of configuration
notice that at the bottom of the center column there
is an option to copy settings. If Analog Input 1, 2 and
3 are the same type of sensor click on "Copy Settings"
where a copy from/to dialog box will appear allowing
for quick duplication of all settings.
Notice too, that by clicking on any of those items in
the center column that context sensitive help will ap-
pear for that particular item in the right hand col-
umn.
