Watlow EZ-ZONE ® RMC Module • 14 • Chapter 2 Install and Wire
Dimensions
51.56 mm
( 2.03 in )
16.76 mm
( 0.67 in )
58.67 mm
( 2.31 in )
17.53 mm
( 0.69 in )
60.45 mm
( 2.38 in )
35.81 mm
( 1.41 in )
35.05 mm
( 1.38 in )
32.77 mm
( 1.29 in )

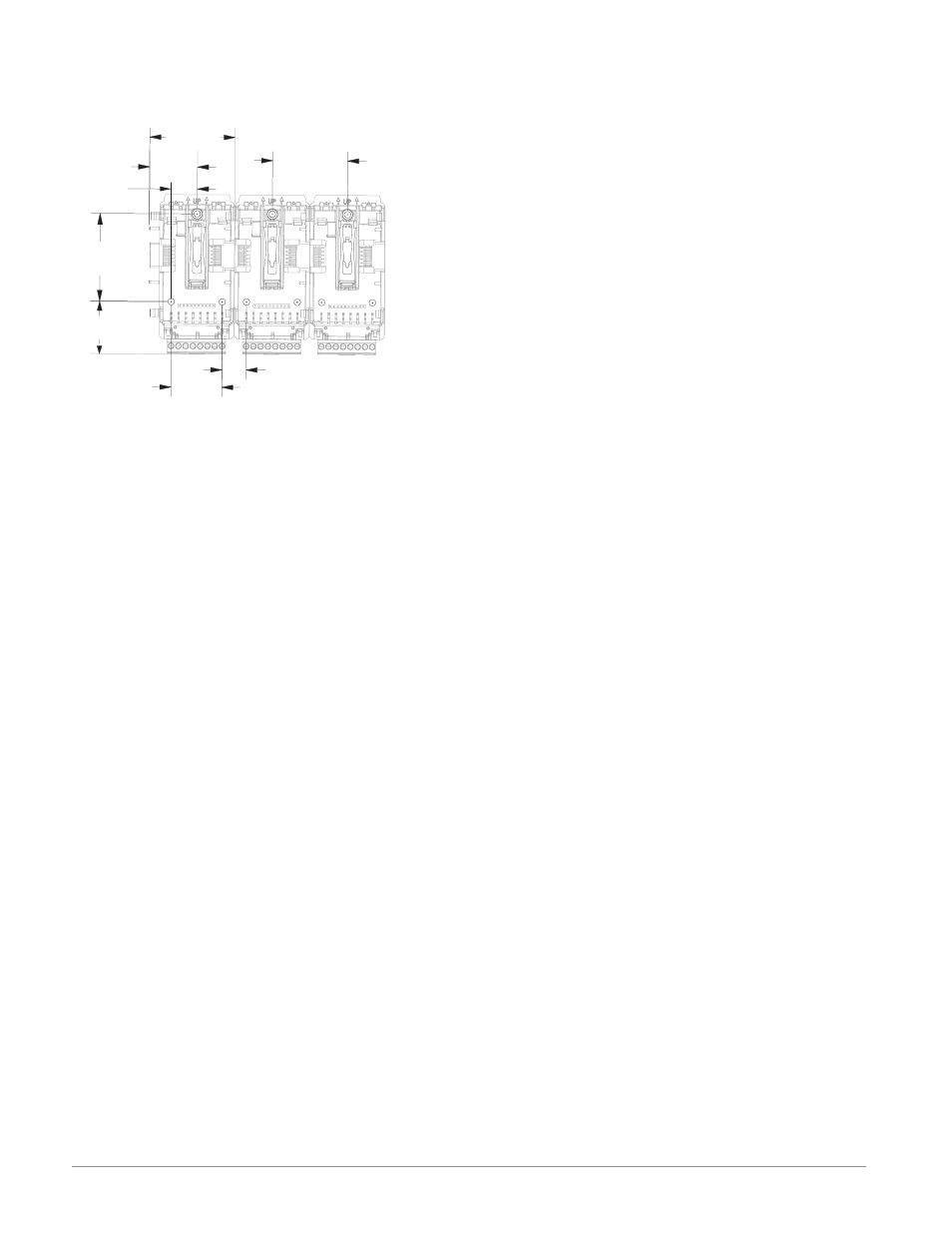

Chassis Mount Front View (Module Removed) - Screw Connection Pattern
Recommended chassis mount hardware:
1. #8 screw, 3/4" long
2. Torque to 10 -15 in-lb
3. No washers of any kind
The view above is representative of the modular backplane without the module.
