Watlow EZ-ZONE ® RMC Module • 29 • Chapter 2 Install and Wire
Warning:
ç
Use National Electric (NEC) or other
country-specific standard wiring and
safety practices when wiring and
connecting this controller to a power
source and to electrical sensors or pe-
ripheral devices. Failure to do so may
result in damage to equipment and
property, and/or injury or loss of life.
Note:
Maximum wire size termination and
torque rating:
• 0.0507 to 3.30 mm2 (30 to 12 AWG)
single-wire termination or two 1.31
mm2 (16 AWG)
• 0.8 Nm (7.0 in-lb.) torque
Note:
Adjacent terminals may be labeled
differently, depending on the model
number.
Note:
To prevent damage to the controller,
do not connect wires to unused ter-
minals.
Note:
Maintain electrical isolation between
digital input-outputs, switched dc/open
collector outputs and process outputs
to prevent ground loops.
Note:
If the last two digits of the part number
are "12", this equipment is suitable for
use in CLASS I, DIVISION 2, Groups A,
B, C and D or Non-Hazardous locations
only. Temperature Code T4
Warning:
ç
Explosion Hazard – Substitution of
component may impair suitability for
CLASS I, DIVISION 2.
Warning:
ç
Explosion Hazard - Do not disconnect
while the circuit is live or unless the
area is known to be free of ignitable
concentrations of flammable sub-
stances.

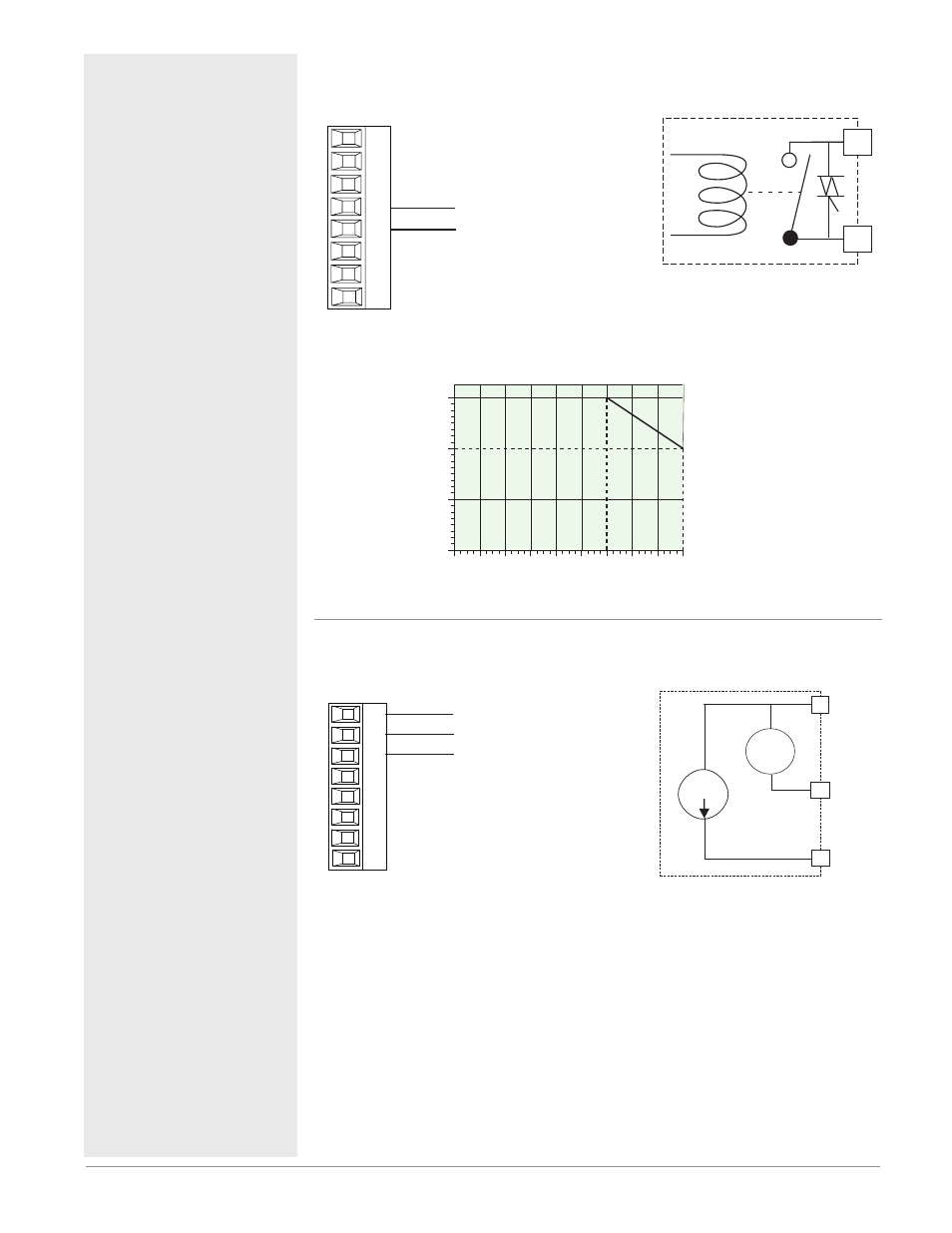

Output 2, 4, 6, 8 NO-ARC Relay, Form A
RMC Part # Digit 5, 7, 9, 11 is D, J or Y
normally open
common
L_
K_
Slot A, B, D, E • 15 A at 85 to 264VÅ (ac)
resistive load only
• 2,000,000 cycle rating
for NO-ARC circuit (pre-
liminary)
• 100 mA minimum load
• 2 mA maximum off state
leakage
• Do not use on dc loads.
• Output does not supply
power.
• Do not drive another re-
lay or solenoid with this
output type.
L_
K_
15
10
5
0
20 55 50 45 40 35 30 25 60 65
O
utput A
mps
Ambient Temperature ( o C)
Output 1, 3, 5, 7 Universal Process
RMC Part # Digit 5, 7, 9, 11 is N, P, R, or S
volts or current -
current +
volts +
F_
G_
H_
Slot A, B, D, E
• 0 to 20 mA into 800 Ω
maximum load
• 0 to 10VÎ (dc) into 1 kΩ
minimum load
• scalable
• output supplies power
• cannot use voltage and
current outputs at same
time
• Output may be used as
retransmit or control.
negative
volts +
current +
4 to 20 mA
0 to 10 V
F_
G_
H_
