Chapter 8
8-18 Respironics V200 Ventilator Operator’s Manual REF 1057983 A
Operating Instructions

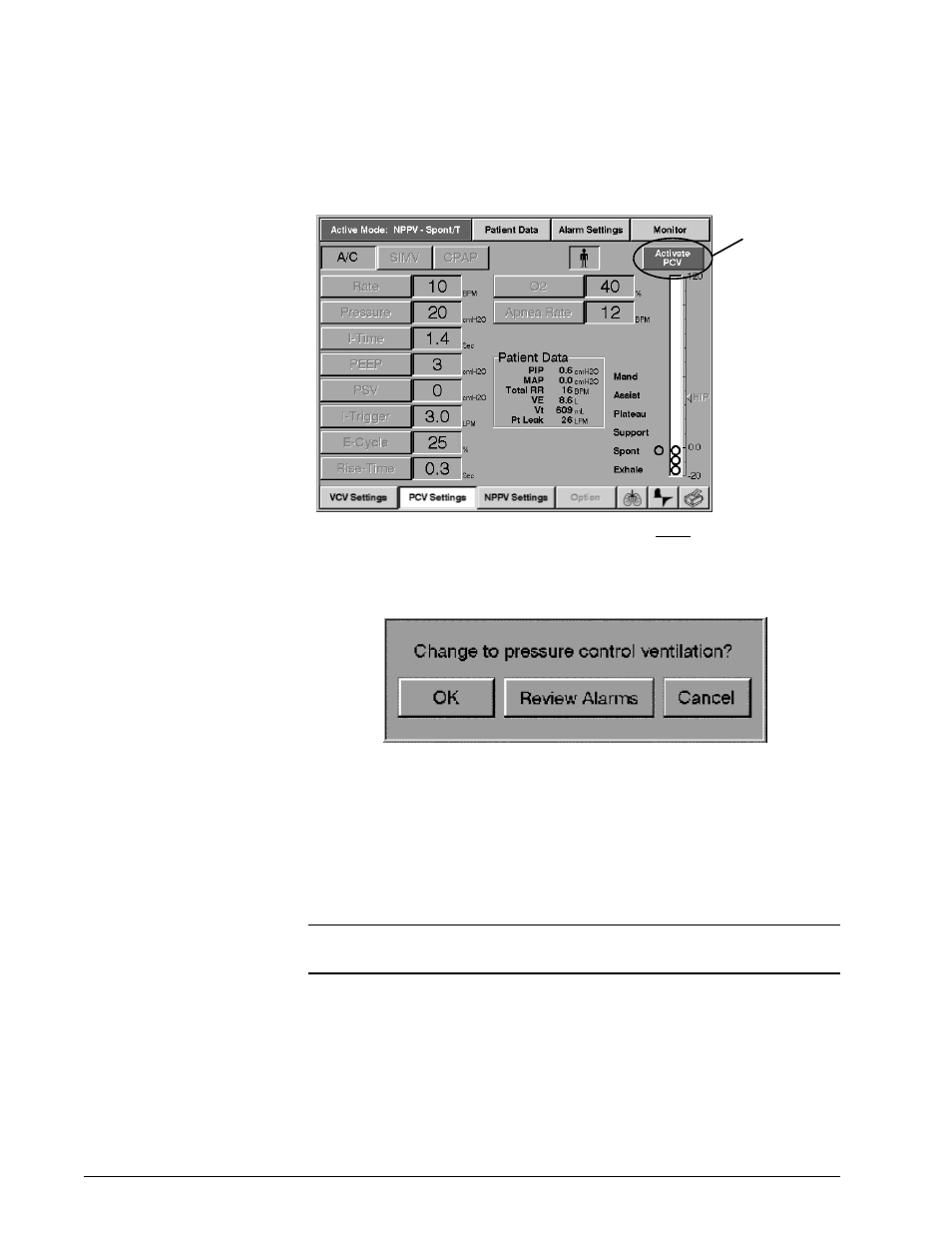

Figure 8-16: PCV Setting while NPPV is the active breath type
2. From the control settings screen, push the ACTIVATE button. Refer to
Figure 8-16. The ventilator displays a prompt insert (Figure 8-17).
Figure 8-17: Change Breath Type Insert Window for PCV
3. Select the REVIEW ALARMS button to display the alarm settings for
PCV (Figure 8-18).
4. Notice that all the alarm buttons (Figure 8-18) are grayed out,
indicating that the alarm limits are not currently active. The ventilator
displays the current value for that set of alarm limits. Push the button
for the alarm limit you want to adjust.
5. Press the bar or use the front panel knob to adjust the value (as shown
in Figure 8-14).
6. Press ACCEPT to activate the new alarm limit or CANCEL to leave it
unchanged.
NOTE: The ventilator keeps a distinct set of alarm limits for each
ventilation breath type (VCV, PCV and NPPV).
ACTIVATE
button
