Chapter 4
4-10 Respironics V200 Ventilator Operator’s Manual REF 1057983 A
Getting Started
8. Position the D ring on the straps as shown below.
NOTE: If the D rings are not positioned properly, the excess strap will interfere
with the tray’s channel guide.

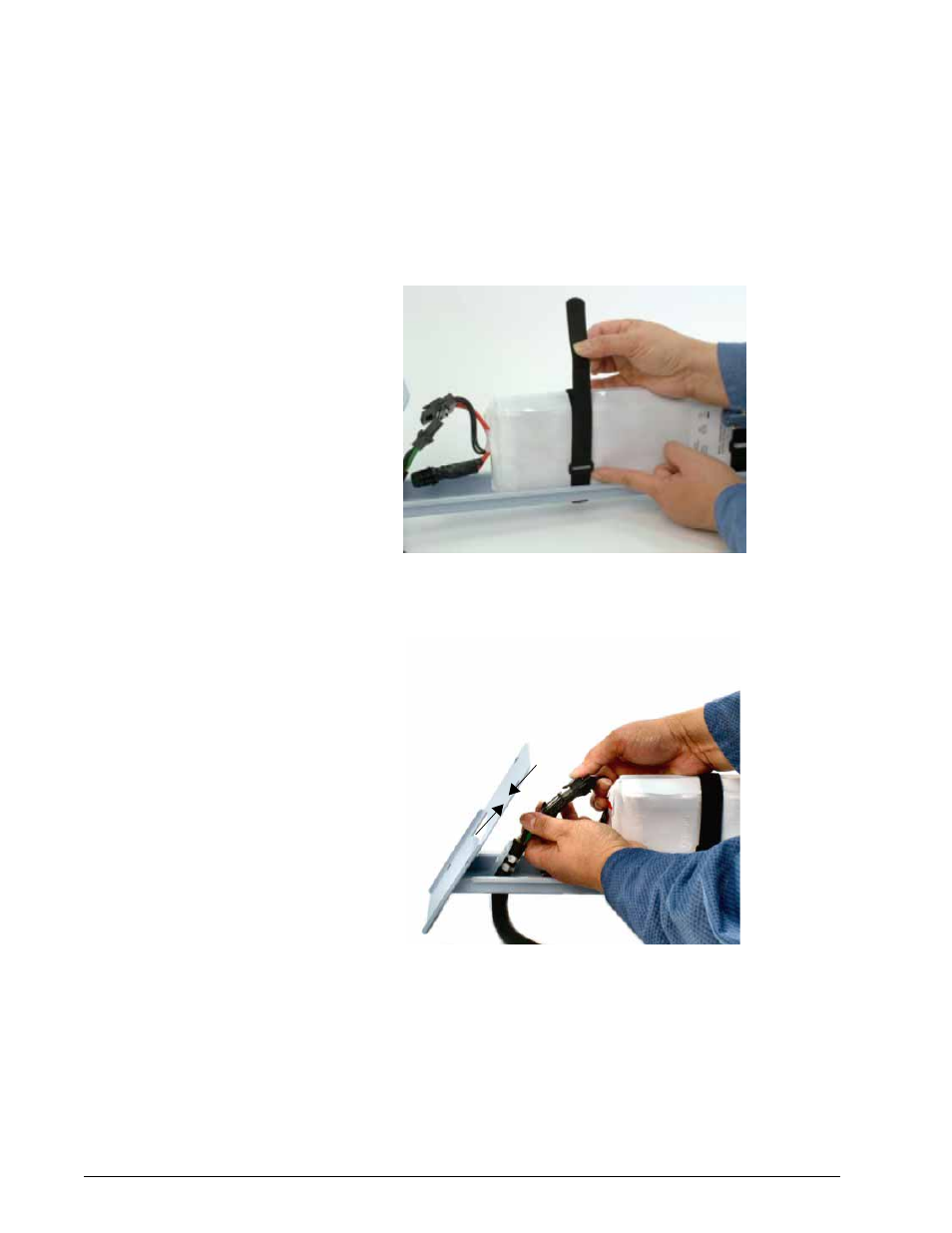

Figure 4-11: Positioning the D Rings on the Battery Straps
9. Connect the battery to the battery tray’s cable.
Figure 4-12: Connecting the Battery to the Battery Tray’s Cable
10. Insert the battery tray into the cart’s center column by mating the
battery tray’s channel guide to the tray’s channel guide of the center
column.
CAUTION: When inserting the battery tray into the cart’s center column, make sure
not to crimp cable connections between the battery tray and cart.
