Chapter 13
13-30 Respironics V200 Ventilator Operator’s Manual REF 1057983 A
Options and Accessories

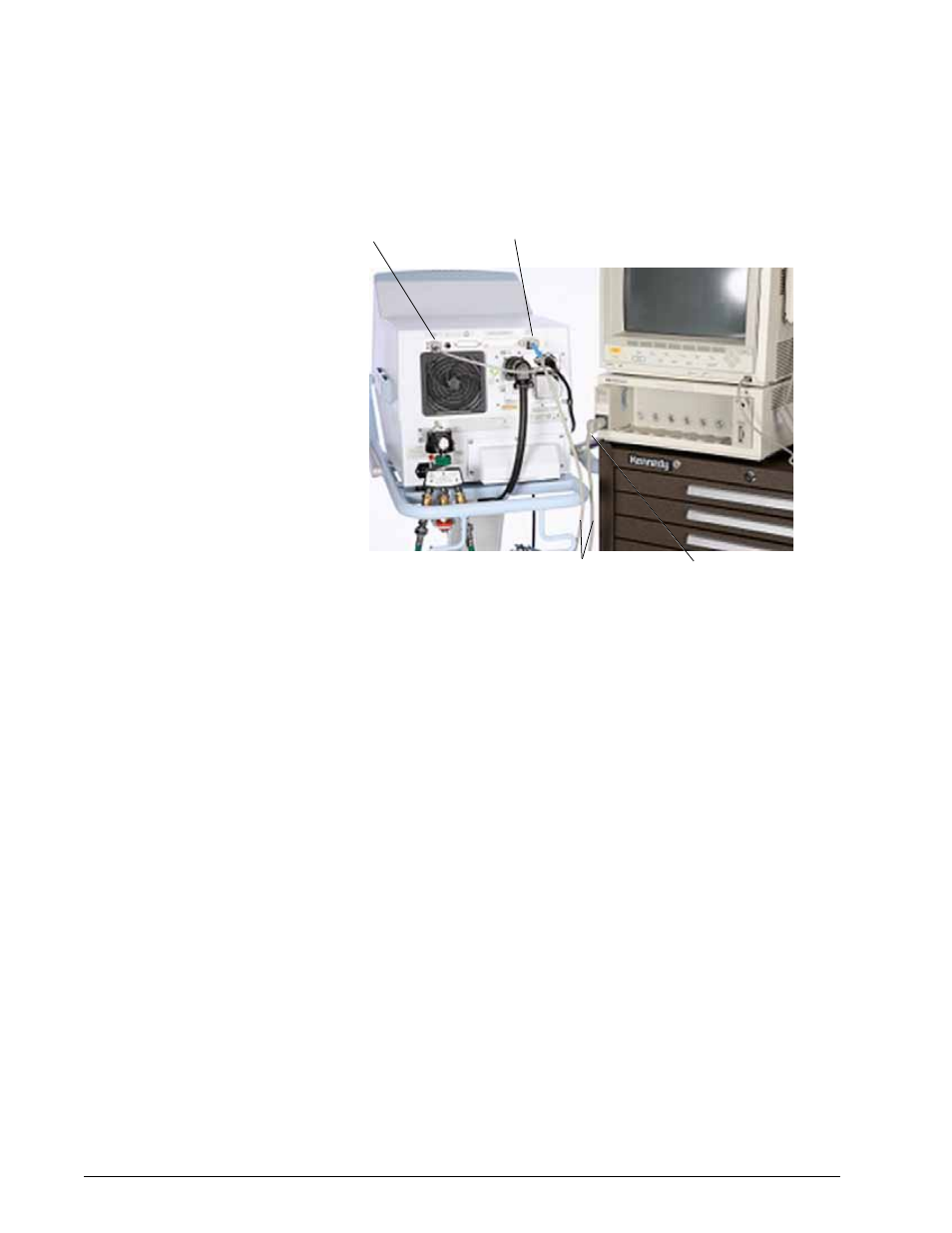

Figure 13-25: Connecting a Ventilator to a VueLink Module
Configuring the
VueLink Module
A VueLink Ventilator Module M1032A #A02, is required for communication
with the ventilator. The VueLink Module can communicate to three different
protocols for external devices: VueLink Interface, Analog Interface, or VueLink
Open Interface. The ventilator uses the VueLink Open Interface. Refer to the
VueLink Handbook provided with the VueLink module for configuration
directions for an Open Interface device. For reference purposes only, below are
configuration directions from the "Agilent M1032A VueLink Module
Handbook", Fourth Edition, 08/2000.
Configuration Overview
The VueLink Module must be configured during installation. Additional
configuration will be required whenever a new device driver is preselected for
availability in Monitoring Mode. The VueLink Module can be configured for up
to three preselected device drivers.
Changing modes
The CMS must be in Configuration Mode to preselect devices. To do this,
follow the steps below.
1. Turn on the ventilator in ventilation mode and connect it to a VueLink
Module as shown in Figure 13-23.
Analog Port RS-232 Serial Port
VueLink cable VueLink module
CMS
Ventilator (Back Panel)
