Chapter 8
8-12 Respironics V200 Ventilator Operator’s Manual REF 1057983 A
Operating Instructions

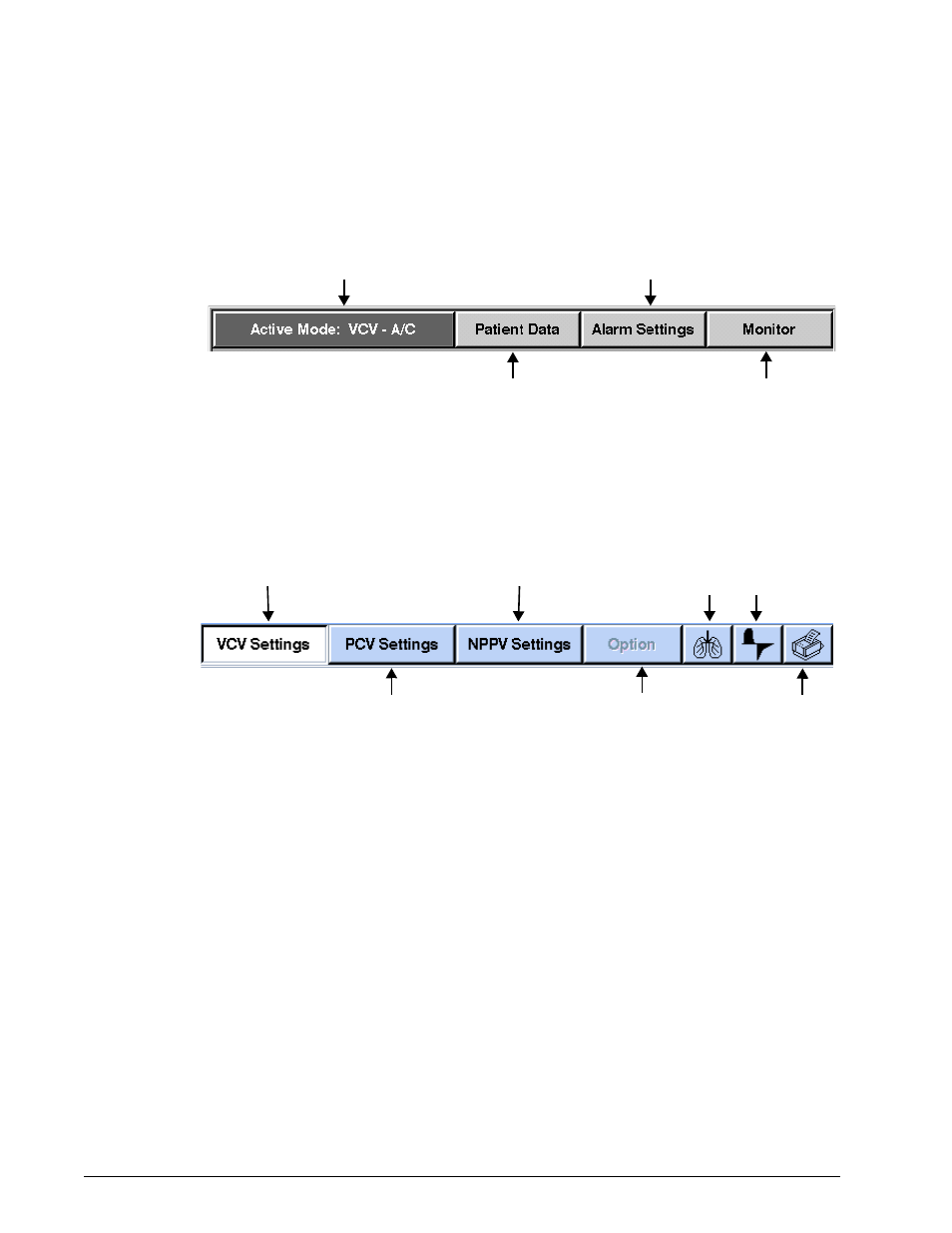

Figure 8-10 shows the top bar and describes its buttons.
Figure 8-10: Top Bar (common to all operational screens)
Figure 8-11 shows the bottom bar and describes its buttons.
Figure 8-11: Bottom Bar (common to all operational screens)
Buttons in the bottom bar have two states, “selected” and “not selected”. In
the “selected” state, the button has a white background and black letters (see
VCV SETTINGS in Figure 8-11). In the “not-selected” state the button has a
gray background and black letters (see PCV SETTINGS, and NPPV SETTINGS
in Figure 8-11). In the upper bar the buttons PATIENT DATA, ALARM
SETTINGS, and
MONITOR are also the “selected/not-selected” type.
When one of these “selected/not-selected” buttons is selected, it indicates
that the screen is being used to display the information described by the name
of the button on the screen. Making a setting screen “selected” (for a breath
type that is not active), is the first step to activate that ventilation breath type
(Refer to “Selecting a New Ventilation Breath Type (VCV, PCV, or NPPV)” on
page 8-23.)
Active Mode: push to display the
settings for the active ventilation mode
and breath type. Active Alarms: push to show current alarm
settings for the active ventilation mode and
breath type.
Patient Data: push to show
the Patient Data screen. Monitor: push to display the monitor
screen (ventilator settings and
patient data).
PCV Settings: push to display PCV settings
screen, which allows you to view and
change settings for pressure controlled
ventilation.
Graphics
button: selects
option if
installed. VCV Settings: push to display VCV
settings screen, which allows you to
view and change settings for volume
controlled ventilation.
Option: for use in the
future.
NPPV Settings: push to display NPPV
settings screen, which allows you to
view and change settings for
noninvasive positive pressure
ventilation.
Printer: Available if
Communications
option is installed.
Respiratory
Mechanics
button: selects
option if
installed.
