Chapter 13
13-88 Respironics V200 Ventilator Operator’s Manual REF 1057983 A
Options and Accessories
Communications
When the respiratory profile monitor interface (NICO-Esprit) option is installed,
the RS-232 communications port is configured for all communications
functions in the following manner:
Hardware Setup
Once the software is loaded on the ventilator, the necessary hardware can be
attached.
1. Attach the respiratory profile monitor to the mounting bracket, and
then attach the assembly to the ventilator. Assembly instructions are
included with the bracket.

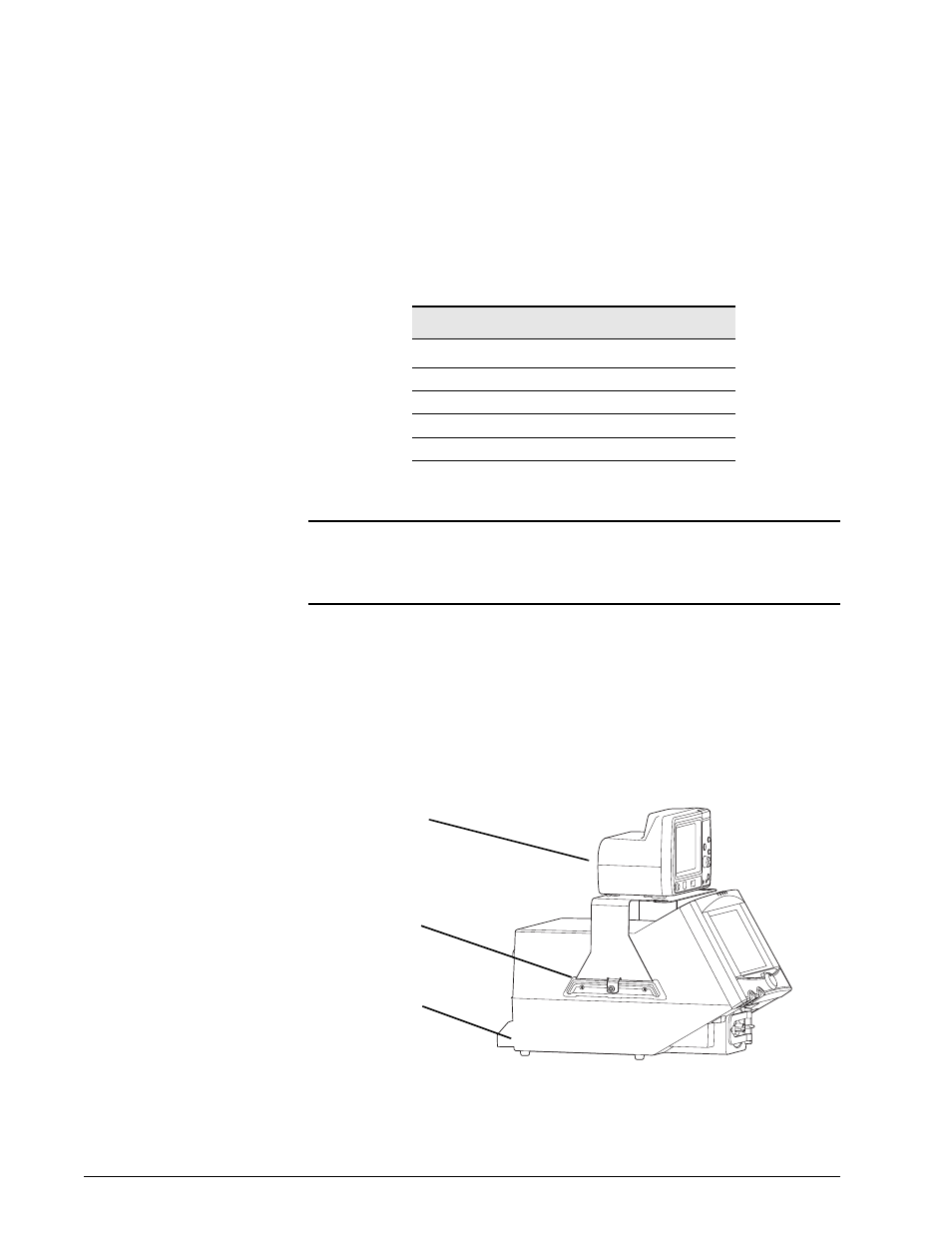

Figure 13-43: Assembled Monitor, Bracket, and Ventilator
Ventilator RS-232 Communications Port Settings
Specification Setting
Baud Rate 19200
Data Bits 8
Parity None
Stop Bits 1
Table 13-17: Ventilator RS-232 Communications Port Settings
NOTE: The respiratory profile monitor interface (NICO-Esprit) option uses the
communications port on the ventilator exclusively. The respiratory
profile monitor interface (NICO-Esprit) option and the RS-232
Communications Option 2 cannot be installed on the same ventilator.
Respiratory profile
monitor
Mounting bracket
Ventilator
