Chapter 4
Getting Started
REF 1057983 A Respironics V200 Ventilator Operator’s Manual 4-11

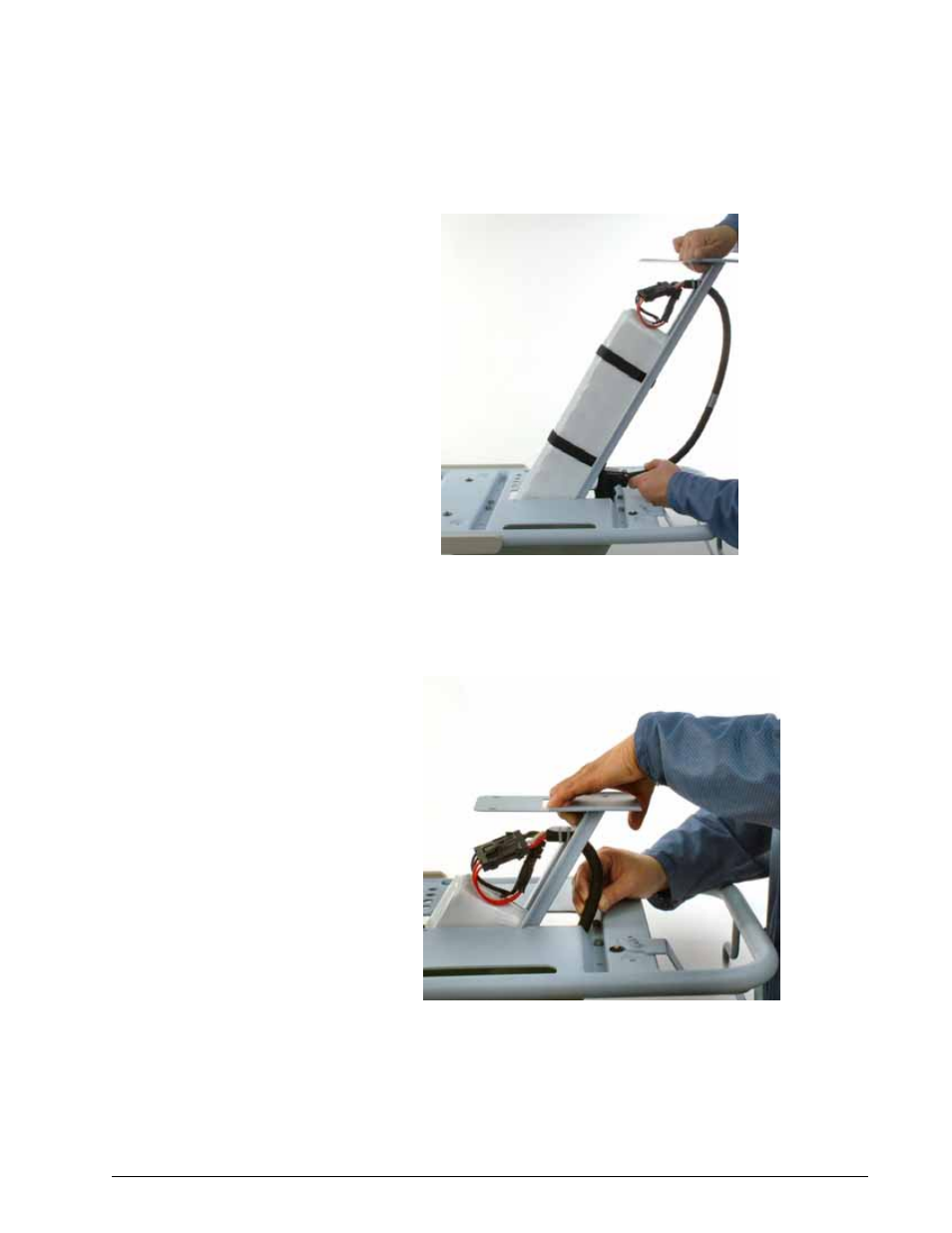

Figure 4-13: Installing the Battery Tray
11. Slide the battery halfway down the center column, and insert the
circular right angle battery connector into the cutout. Pull the cable
downward as the tray is fully inserted into the cart's center column.
Figure 4-14: Inserting the Circular Right Angle Battery Connector Into the Cutout
