Page 44
Chapter 4
4-16
Respironics V200 Ventilator Operator’s Manual
REF 1057983 A
Getting Started
Inspiratory Bacteria
Filter Installation
The inspiratory bacteria filter (4) in Figure 4-19
,
mounts on the gas outlet port
(1) located in the lower right corner on the front of the ventilator. If the
optional O
2
sensor (2) will be used, it will be connected to the gas outlet port
(1) before the inspiratory bacteria filter is connected. For more information
regarding the optional O
2
sensor, refer to Chapter 13, “Options and

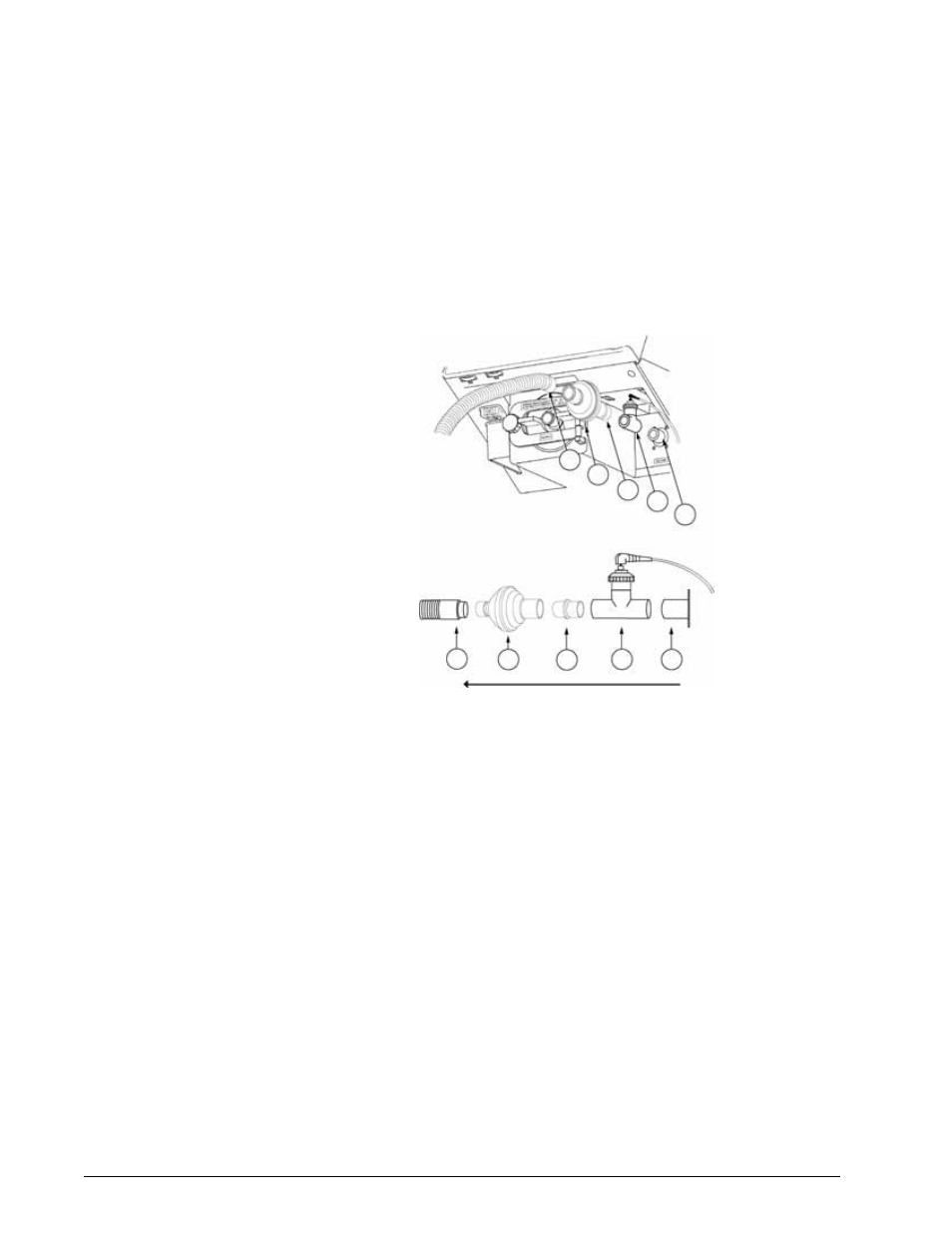

Figure 4-19: Inserting Disposable Inspiratory Bacteria Filter
Flow
1
2
3
4
4
3
2
1
5
5
