REF 1057983 A Respironics V200 Ventilator Operator’s Manual 5-1
Chapter 5. Setup
Back Panel
Connections and
Controls

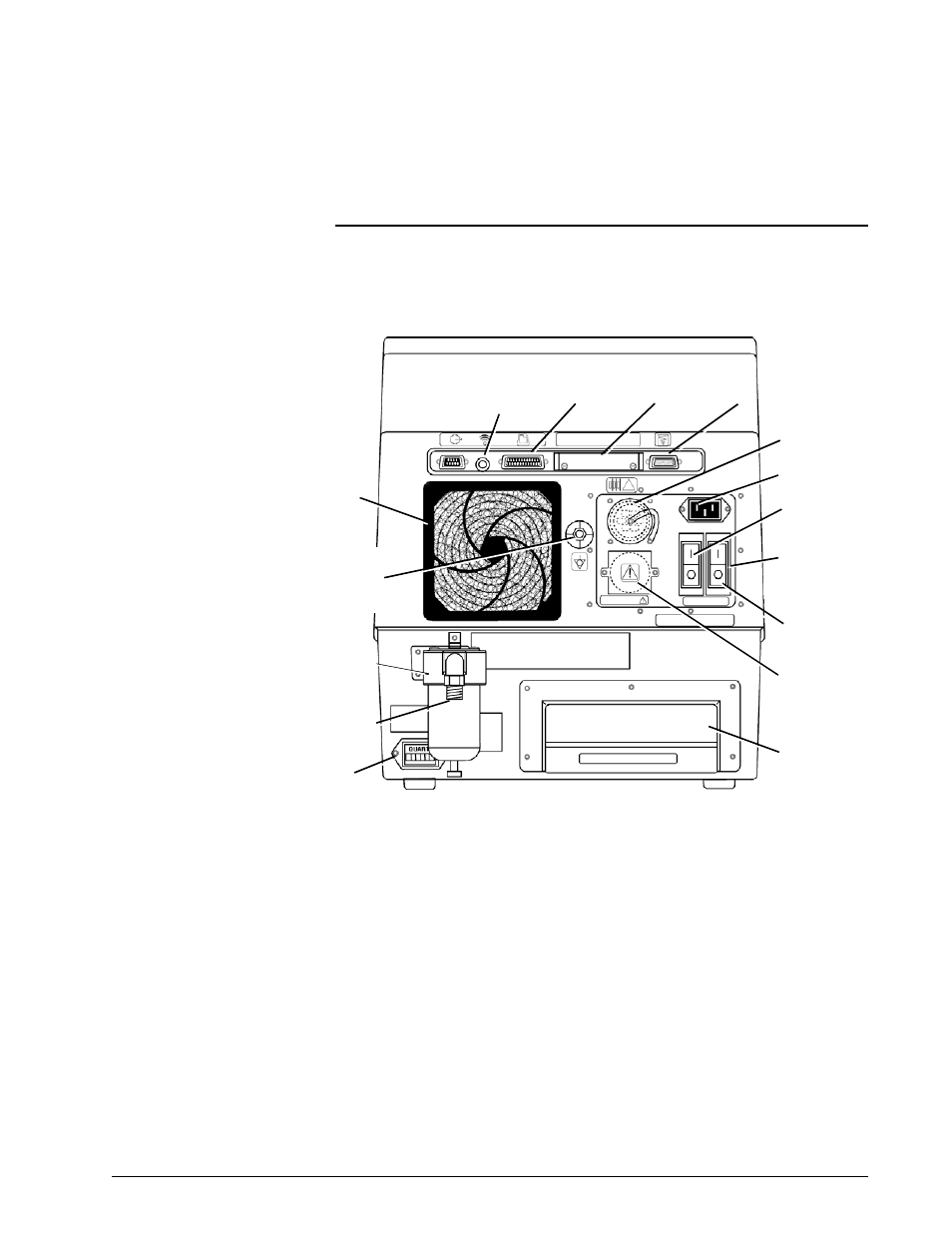

Figure 5-1: Back Panel
1. 232 Serial Port: Connection source for devices capable of serial
communication. Refer to Chapter 6, “Connecting Additional
Equipment”.
2. Remote Alarm Nurse Call: Connection source for remote alarm devices.
3. Parallel Printer Port: For use with the Communications Option. Refer to
Chapter 13, “Options and Accessories”.
4. PCMCIA Card Slot: (PC Card) For use with the Trending Option. Refer to
Chapter 13, “Options and Accessories”.
11. Humidifier
AC Outlet
12. Air Inlet
Duct and Filter
14. O
2
Inlet
Connector
15. O
2
Inlet
Filter and
Water Trap
2. Remote
Alarm Nurse
Call 3. Parallel
Printer Port 4. PCMCIA
Card Slot
8 Humidifier AC
Circuit Breaker
10. Mains
Circuit
Breaker
1.RS-232
Serial Port
6. DC Battery
Connector
7. AC Inlet
17. Cooling
Fan
Inlet
5. Analog Port
13. Elapsed
Time Meter
16. Potential
Equalization
Connection
9. Circuit
Breaker
Cover
(not shown)
