OPERATOR’S STATION

3.18

Cab Display Module (CDM)

3.18.1

Engine and Windrower Functions

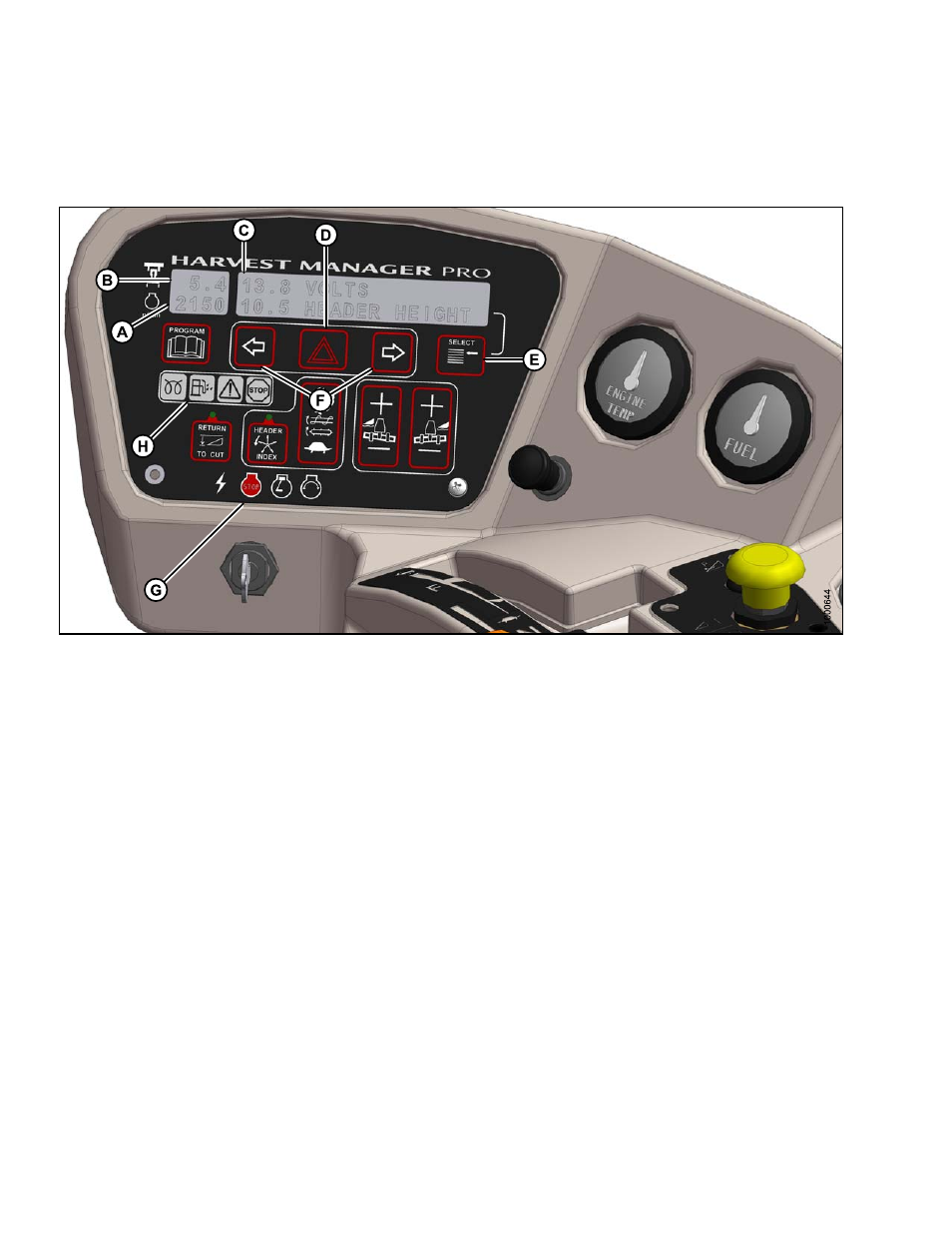

Figure 3.61: CDM Engine and Windrower Functions

A

– Engine rpm

B

– Ground Speed: mph or kph

C

– DISPLAY: Engine/windrower functions.

D

– HAZARD WARNING LIGHTS switch: Activates hazard warning lights, cancels turn signal.

E

– SELECT switch: Allows operator to select display item on lower line. Push to SELECT.

F

– TURN SIGNAL switches: Activates turn signals on windrower and header Push-ON / Push-OFF.

G

– IGNITION switch positions: Accessory / Stop / Run / Start.

H

– Engine warning lights: Engine Pre-Heat / Water In Fuel / CAUTION / Stop Engine.
