OPERATOR’S STATION
Header Position Switches
Press and hold switch at location shown to move header
up or down and to change the angle of the header relative
to the ground. Release switch at desired position.
NOTE: Refer to the section in this manual that is
specific to your header for detailed switch
operating modes.

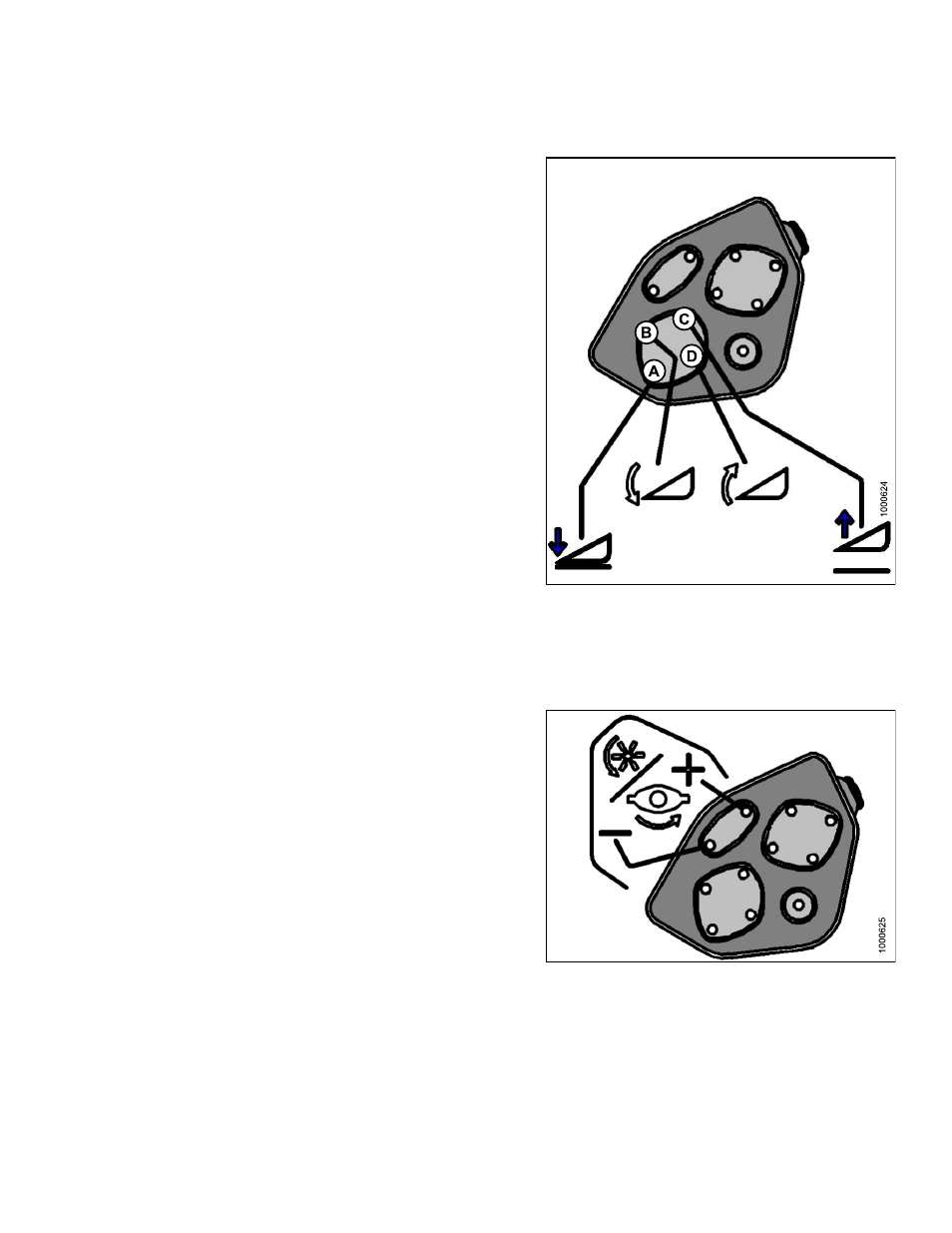

Figure 3.56: Ground Speed Lever
A - Header Down B - Header Tilt Down
C - Header Up D - Header Tilt Up
Reel and Disc Speed Switches
Press and hold switch at location shown to change reel or
disc speed. Release switch at desired speed.
Auger Header
• A-30 header: Not applicable
• A-40 header: Auger speed is automatically maintained
when reel speed is changed
IMPORTANT:
Reel speed on auger header MUST NOT
EXCEED
85 rpm. Auger speed MUST NOT
EXCEED 320 rpm.
Figure 3.57: Ground Speed Lever
Draper Header
• Reel speed is limited in INDEX HEADER SPEED mode
Rotary Disc Header
• Conditioner speed automatically adjusts when DISC
SPEED is changed
169883
69
Revision A
