OPERATION
4.4.8 Swath Roller Operation
The swath roller is raised and lowered with the DWA
UP (A) and DWA DOWN (B) switches on the ground speed
lever (GSL) or with the rocker switch on the operator’s
console, depending on how the windrower cab display
module (CDM) is programmed during the installation of
the Swath Roller kit.
To swap controls from the console to the GSL, refer to
Detailed Programming Menu Flow Chart, page 88 .
Refer to the operating instructions that are provided with an
Swath Roller kit. Refer to
7.1.20 Swath Roller, page 408
for more information.

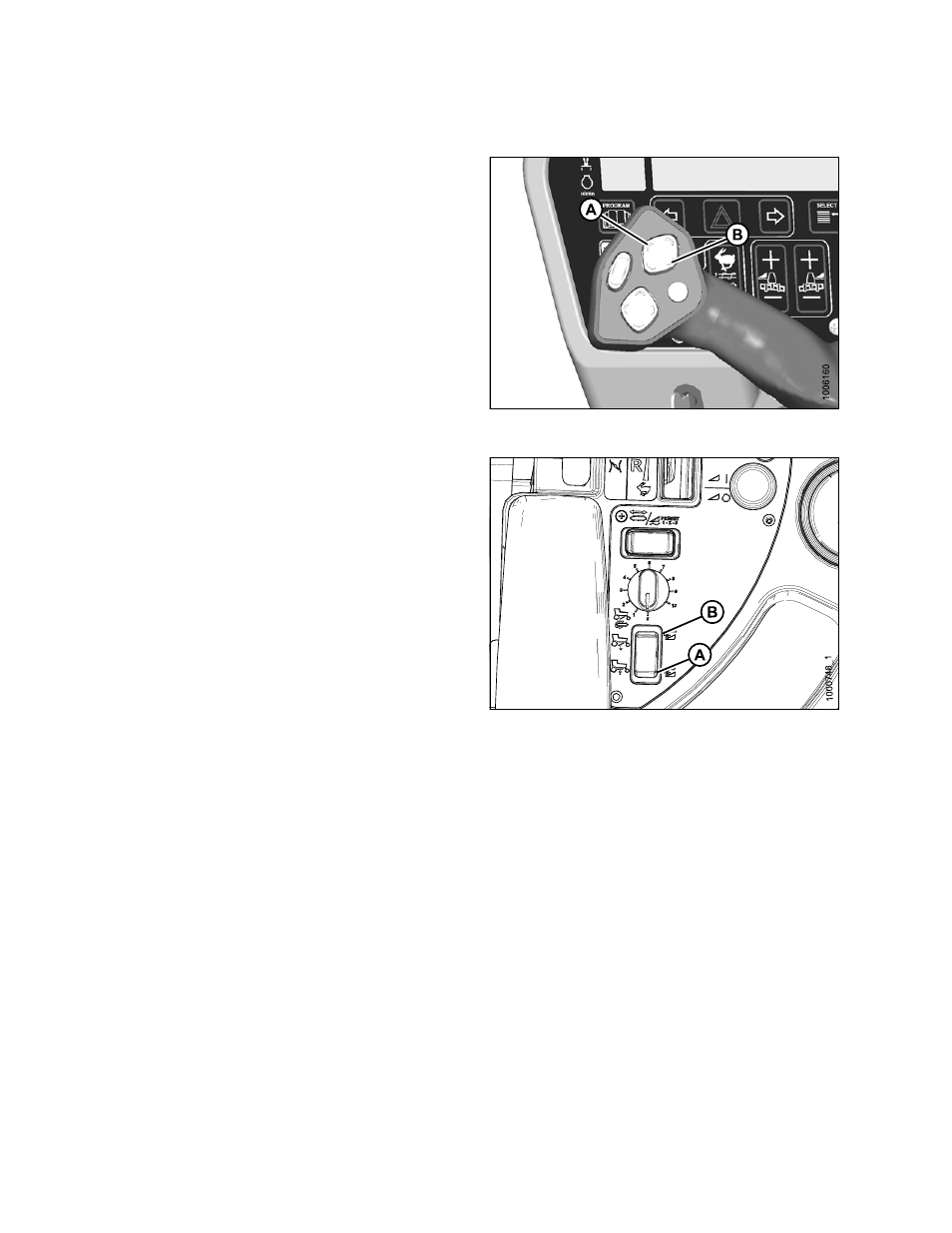

Figure 4.96: GSL
Figure 4.97: Rocker Switch
169883
156
Revision A
