Page 236: Danger

15. Connect header drive hoses (A) and electrical

harness (B) to header. Refer to the rotary disc header
operator’s manual.

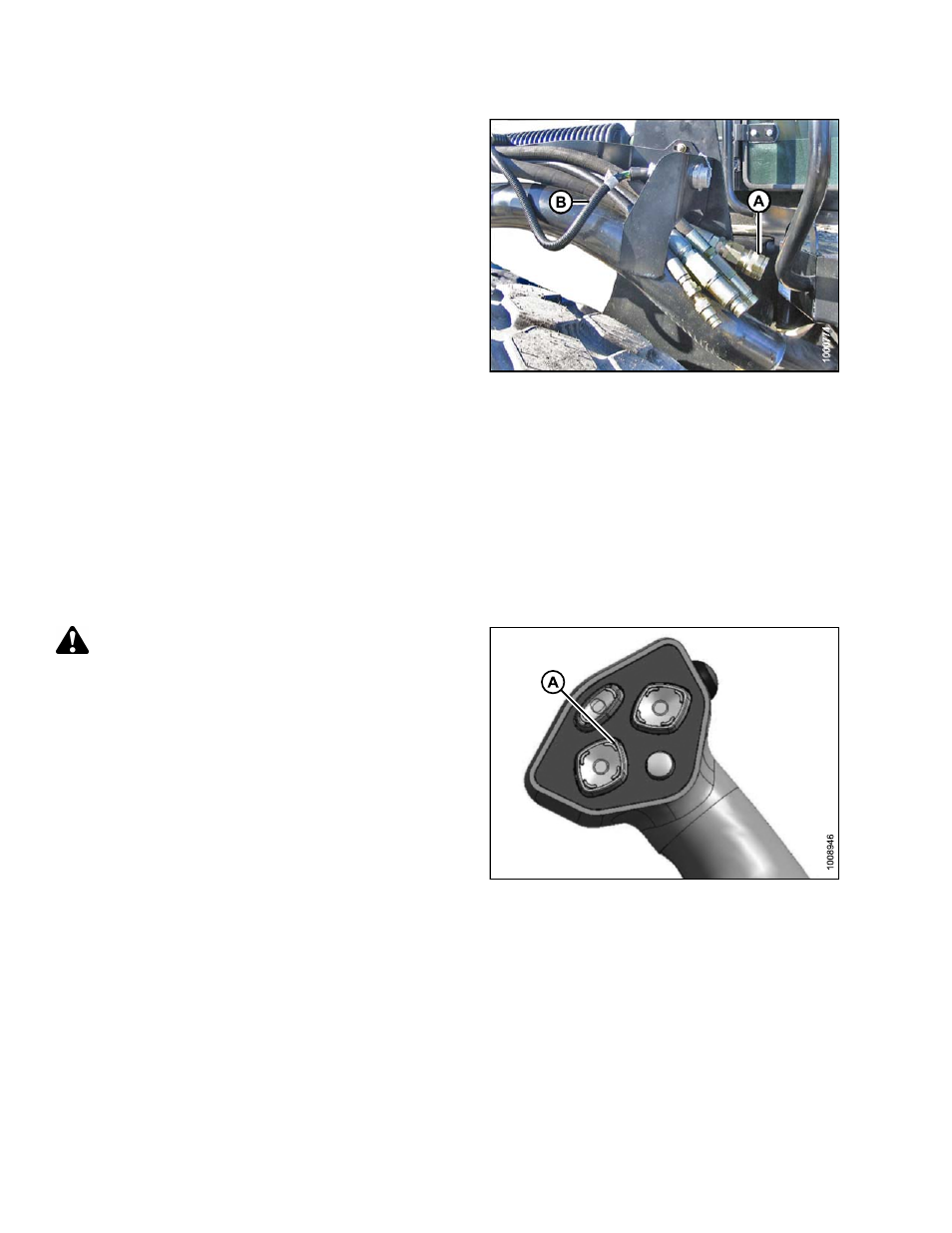

Figure 4.259: Header Drive Hoses and Harness

4.5.6

Detaching an R-Series Header

Refer to the procedure that is appropriate for the center-link installed on the windrower:

•

•

Detaching an R-Series Header: Hydraulic Center-Link

To detach an R-Series header from an M-Series windrower equipped with a hydraulic center-link, follow these steps:

DANGER

Stop engine and remove key from ignition before
leaving operator's seat for any reason. A child or
even a pet could engage an idling machine.

1. Start engine and press HEADER UP (A) switch to raise

header to maximum height.

2. Rephase cylinders if one end of the header does not

raise fully. If rephasing is needed, proceed as follows:

a. Press and hold the HEADER UP (A switch until

both cylinders stop moving.

b. Continue to hold the switch for 3–4 seconds.

Cylinders are phased.

Figure 4.260: Ground Speed Lever (GSL)

169883

220

Revision A
