Battery Main Disconnect Switch
A battery main disconnect switch is located on the
right cab-forward side frame rail, just behind the
batteries, and can be easily accessed by moving the
maintenance platform.
Ensure switch is switched to POWER OFF position when
performing major servicing to electrical components, or
for periods of non-use to prevent inadvertent loss of
battery charge.

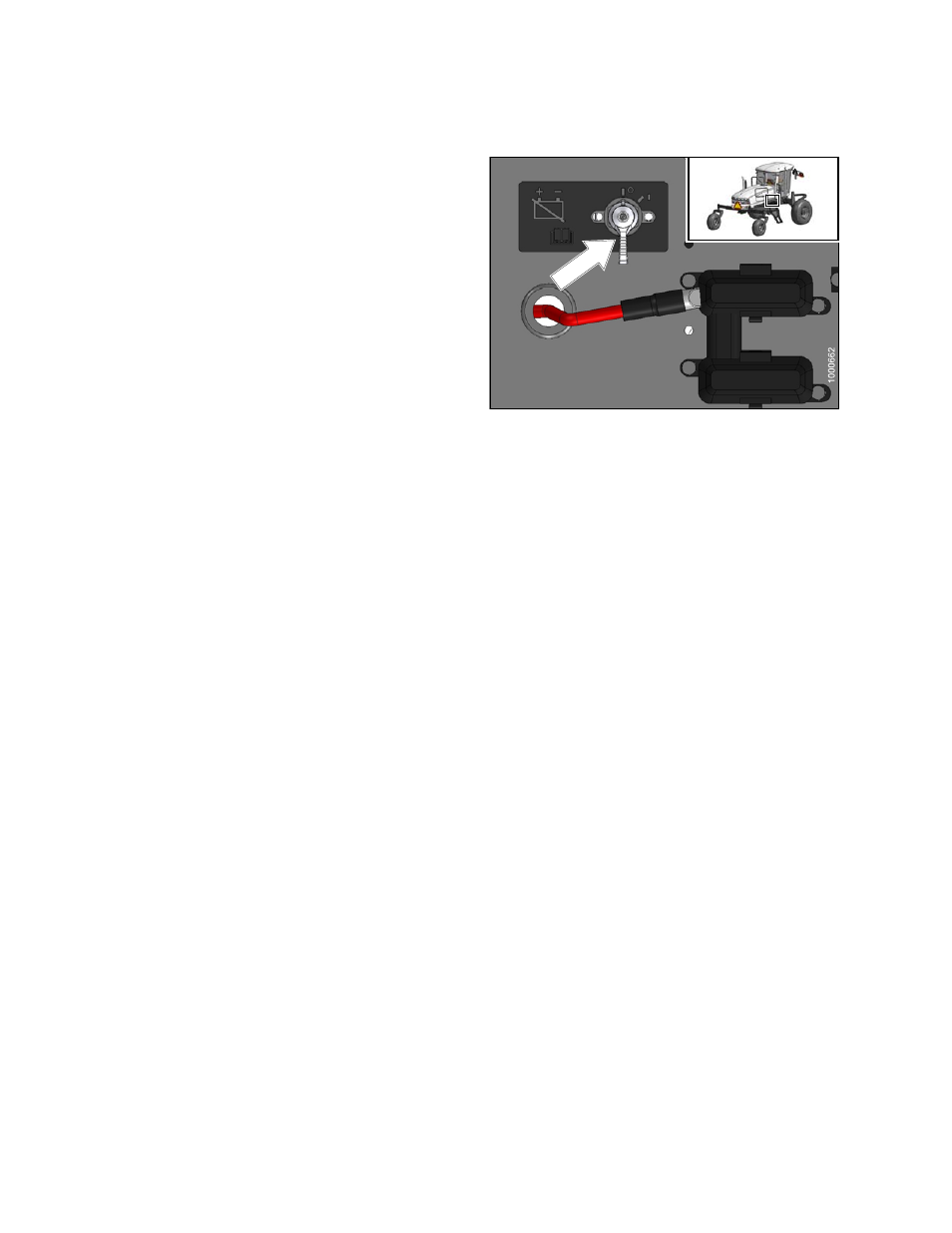

Figure 5.127: Electrical System
169883
328
Revision A
