OPERATION

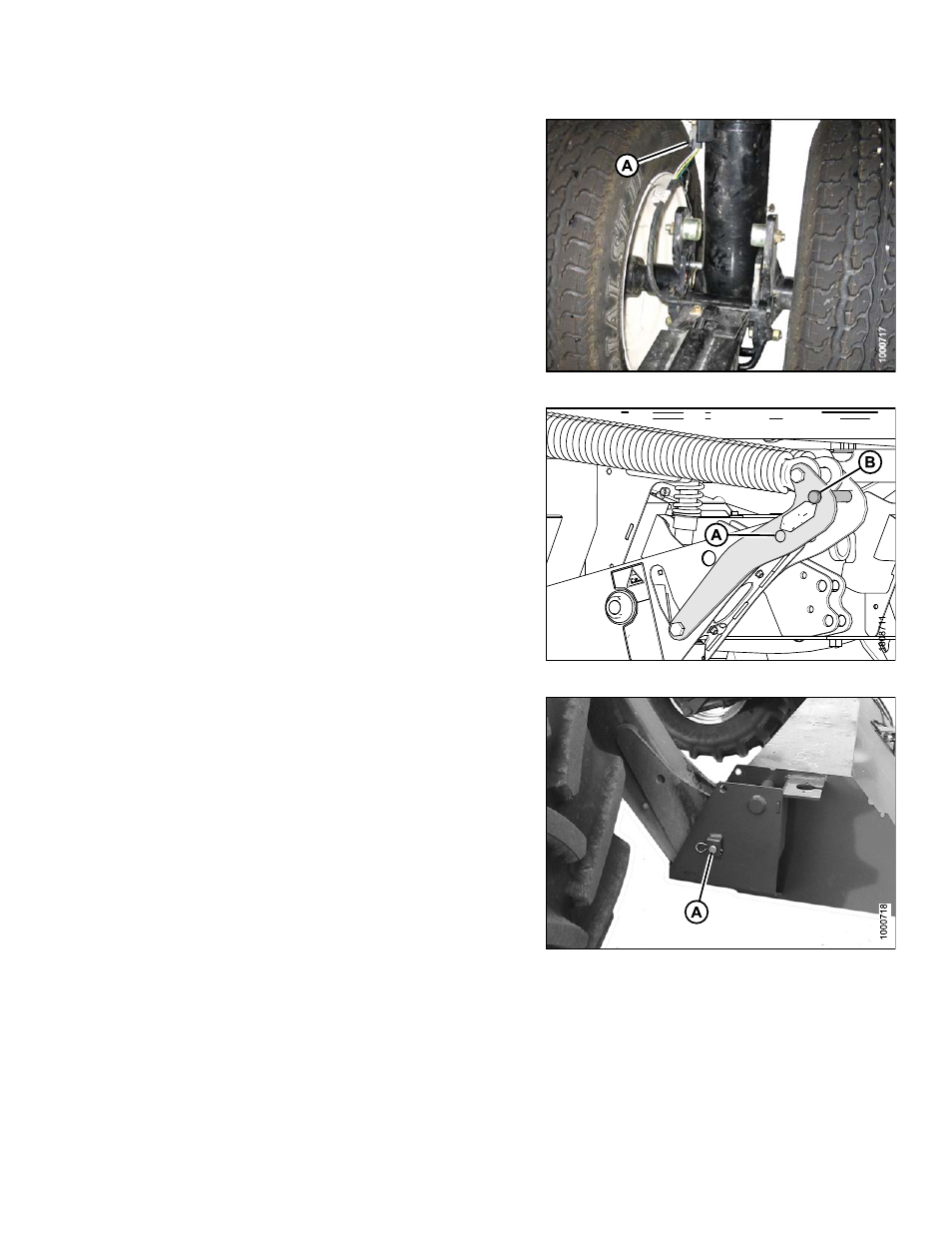

8. Make the electrical connection at the header wheel (A).
Figure 4.49: Header Transport Wheel
IMPORTANT:
To prevent damage to the lift system when
lowering header lift linkages without a header
or weight box attached to windrower, ensure
that float engagement pin is installed in
storage location (B) and NOT installed at hole
location (A).
Figure 4.50: Lift Linkage
9. Drive windrower so that windrower lift arms are
positioned into the weight box pockets.
10. Raise lift arms slightly, install locking pins (A) into
pockets, and through windrower header lift linkages.
Secure with hairpin.
NOTE: Pins (A) were previously removed from
the header lift linkage lower end.
Figure 4.51: Windrower Lift Linkage
