OPERATOR’S STATION
3.17 Header Controls
All header controls are conveniently located on the operator’s console and on the ground speed lever (GSL) handle.
NOTE: Some controls are optional equipment and may not be present in your unit. Some controls may be
installed, but will be nonfunctional for certain headers.
Refer to specific header sections in this manual for detailed operating procedures of all header controls.
3.17.1 Header Drive Switch

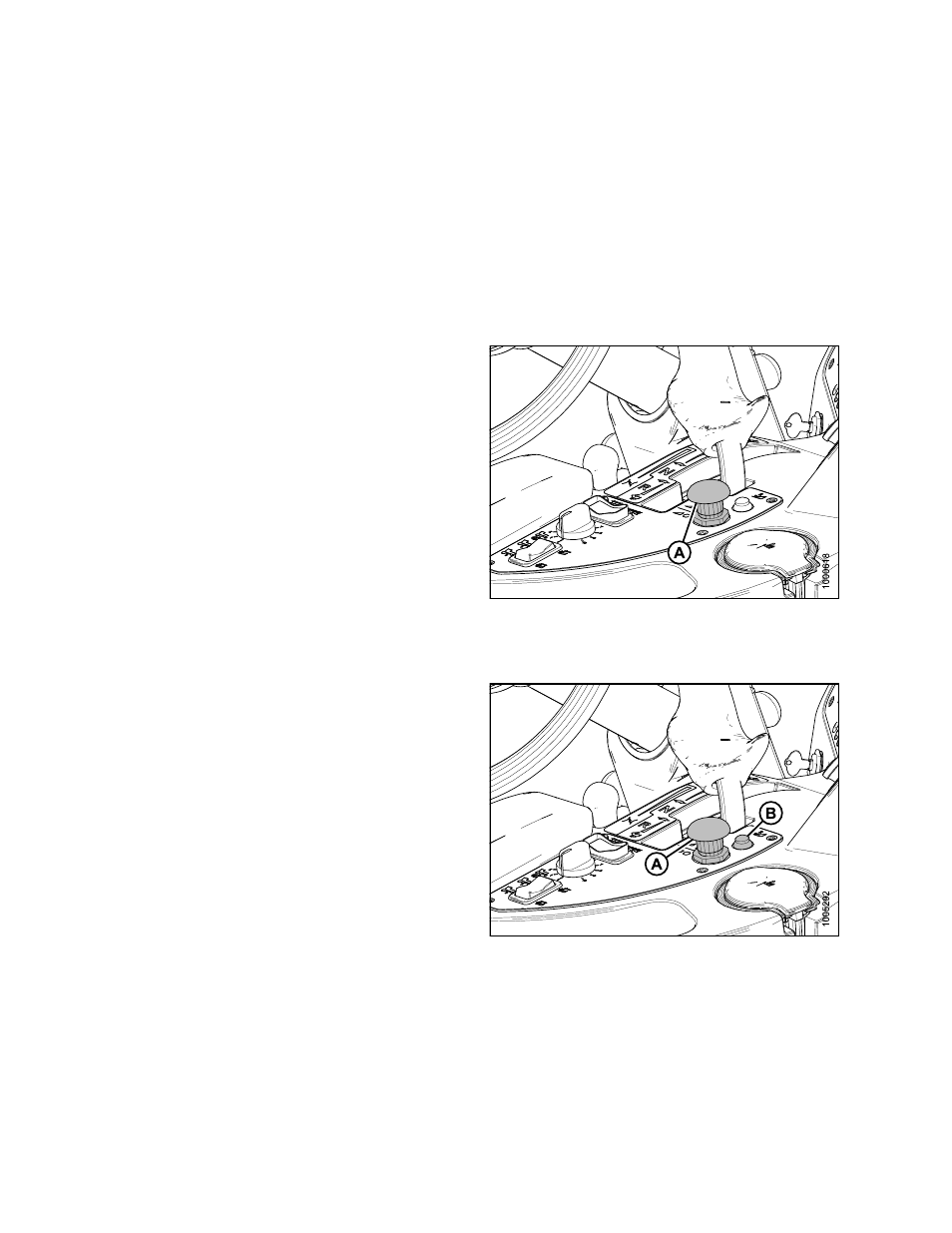

The header drive switch (A) engages and disengages the header drive.
To engage the header drive, push the switch to center and
pull up.
To disengage the header drive, push the switch down.
IMPORTANT:
Always move throttle lever back to IDLE before
engaging header drive. Do NOT engage header
with engine at full rpm.
Figure 3.50: Header Drive Switch
3.17.2 Header Drive Reverse Button
NOTE: The optional hydraulic reversing kit must be
installed on draper headers with a conditioner
and on auger headers. Rotary disc headers are
factory-equipped with the reverser.
• ENGAGE: Push and hold REVERSER button (B) and
engage header with Switch (A)
• DISENGAGE: Release REVERSER Button (B)
Figure 3.51: Header Drive Switches
