MAINTENANCE AND SERVICING
8. Move the screen cleaner assembly (C). Secure with
bolts and nuts (B).
9. Close the cooler box screen. Refer to Closing Cooler
Box Screen, page 321 .
10. Close the hood. Refer to 5.4.4 Closing Hood (Highest
Position), page 268 .

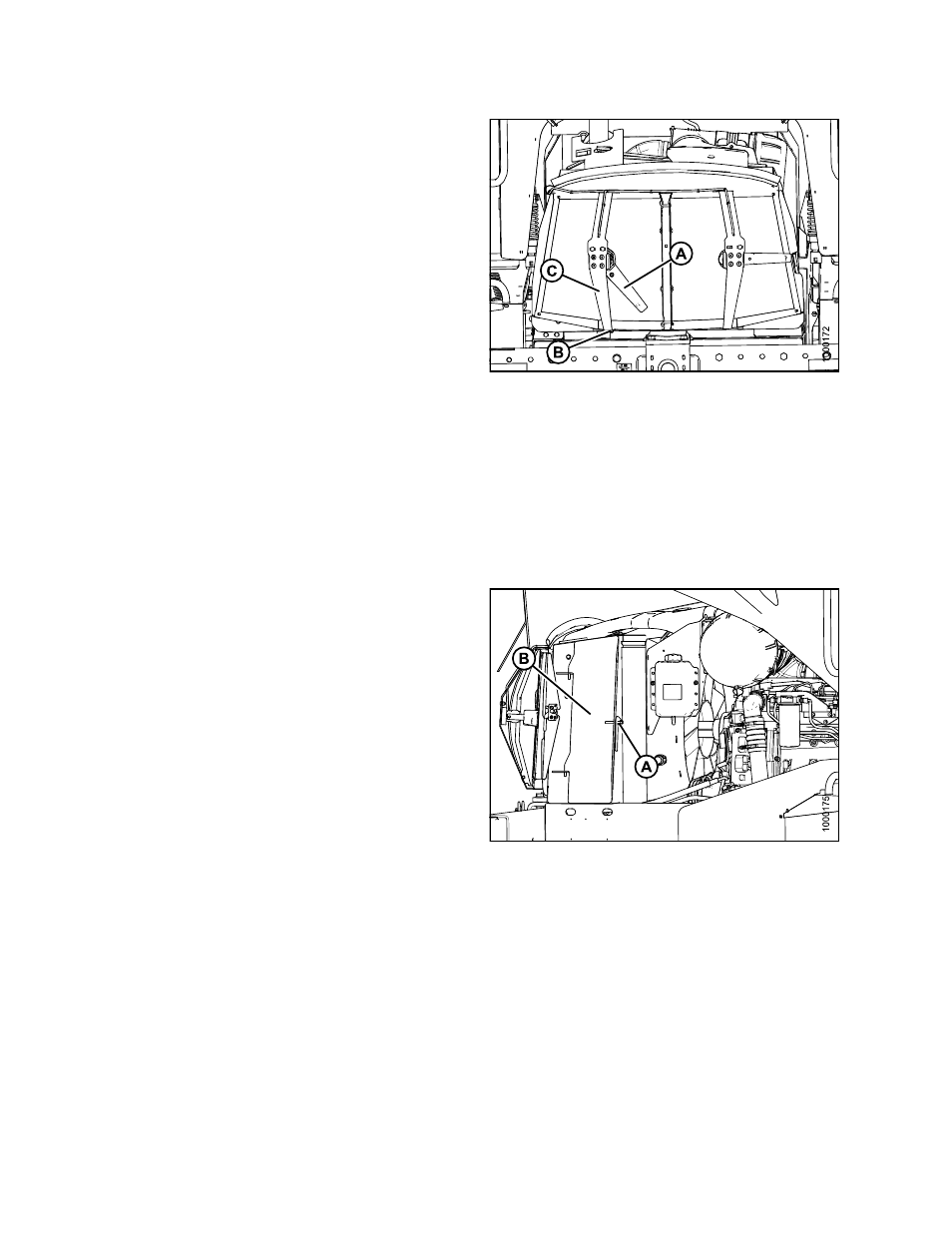

Figure 5.109: Engine Cooling System
Cleaning Cooler Box Components
The radiator and oil cooler should be cleaned daily with compressed air. More frequent cleaning may be necessary
in severe conditions. The charge air cooler and air conditioning condenser may also be cleaned at the same time.
To clean these components, proceed as follows:
1. Open cooler box screen. Refer to Opening Cooler Box
Screen, page 316 .
2. Lift latch (A) and open the right hand access door (B).
Figure 5.110: Engine Cooling System
