MAINTENANCE AND SERVICING
Turn Signal Indicators
If the turn signal indicators on the cab display module (CDM) do NOT function, contact your MacDon Dealer.
Circuit Breakers and Fuses
The circuit breakers and fuses are located inside the fuse box that is mounted on the frame under the right
cab-forward side platform.
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
The circuit breakers automatically reset. Fuses are the plastic blade type.
Access the breakers and fuses as follows:
1. Stop engine and remove key.
2. Move right cab-forward side platform rearward
(cab-forward).
3. Remove wing nut (A) and remove fuse box cover (B).
4. Refer to decal on inside of cover for identification of
fuses and circuit breakers.
5. A cover may be installed over the circuit breaker.
Remove it to access the breaker.

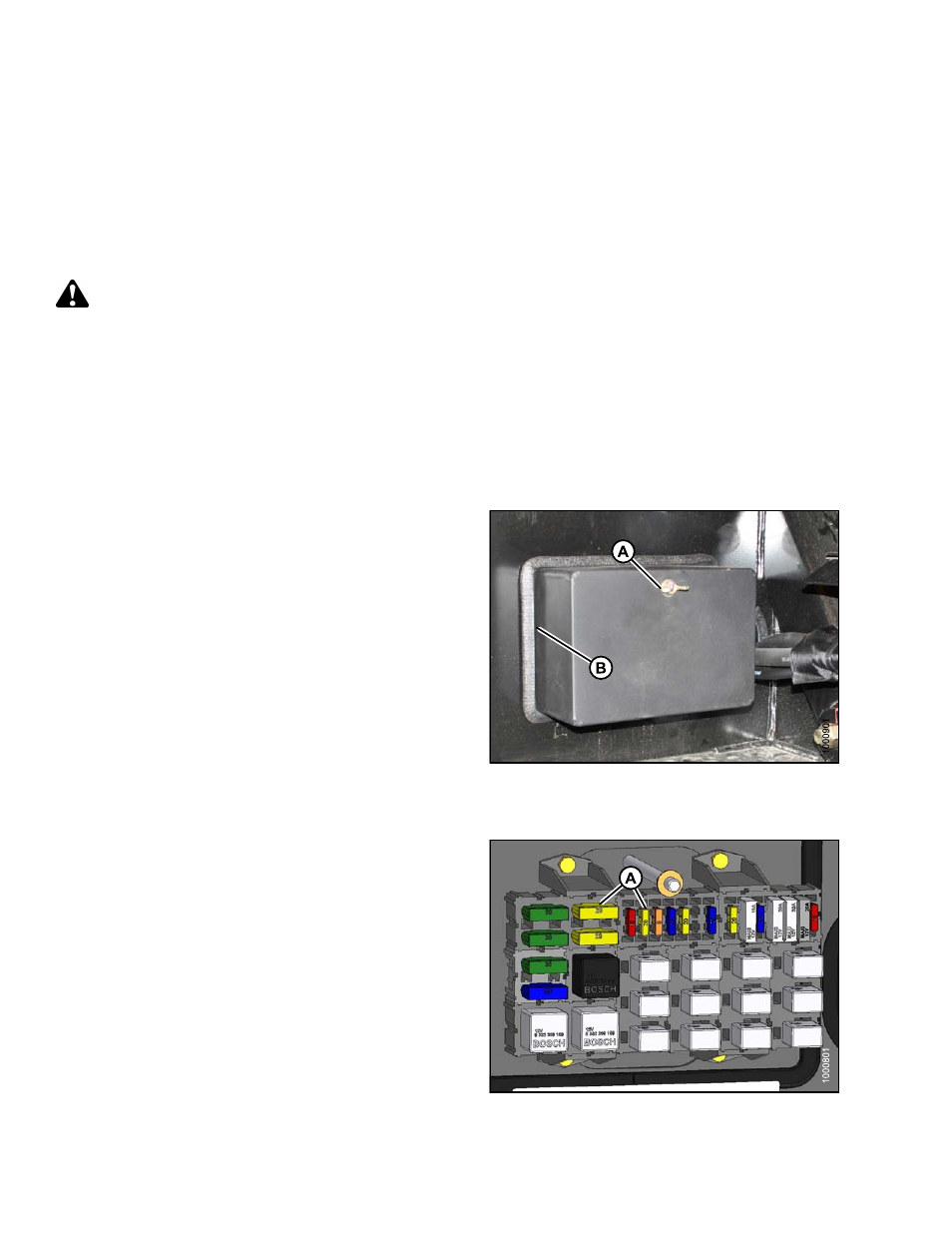

Figure 5.183: Fuse Box
Checking and Replacing Fuses
1. To check fuse, pull fuse (A) out of receptacle and
visually examine.
2. To replace fuse, insert new fuse into receptacle.
IMPORTANT:
Replacement fuses should match rating on decal
shown on following page.
Figure 5.184: Fuses
