OPERATION
4.5.3 Attaching an A-Series Header
Refer to the procedure that is appropriate for the center-link installed on the windrower:
• Attaching an A-Series Header: Hydraulic Center-Link with Optional Self-Alignment, page 180
• Attaching an A-Series Header: Hydraulic Center-Link without Self-Alignment, page 185
• Attaching an A-Series Header: Mechanical Center-Link, page 191
Attaching an A-Series Header: Hydraulic Center-Link with Optional Self-Alignment
To attach an A-Series header to a windrower equipped with a hydraulic center-link and optional self-alignment,
follow these steps:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.

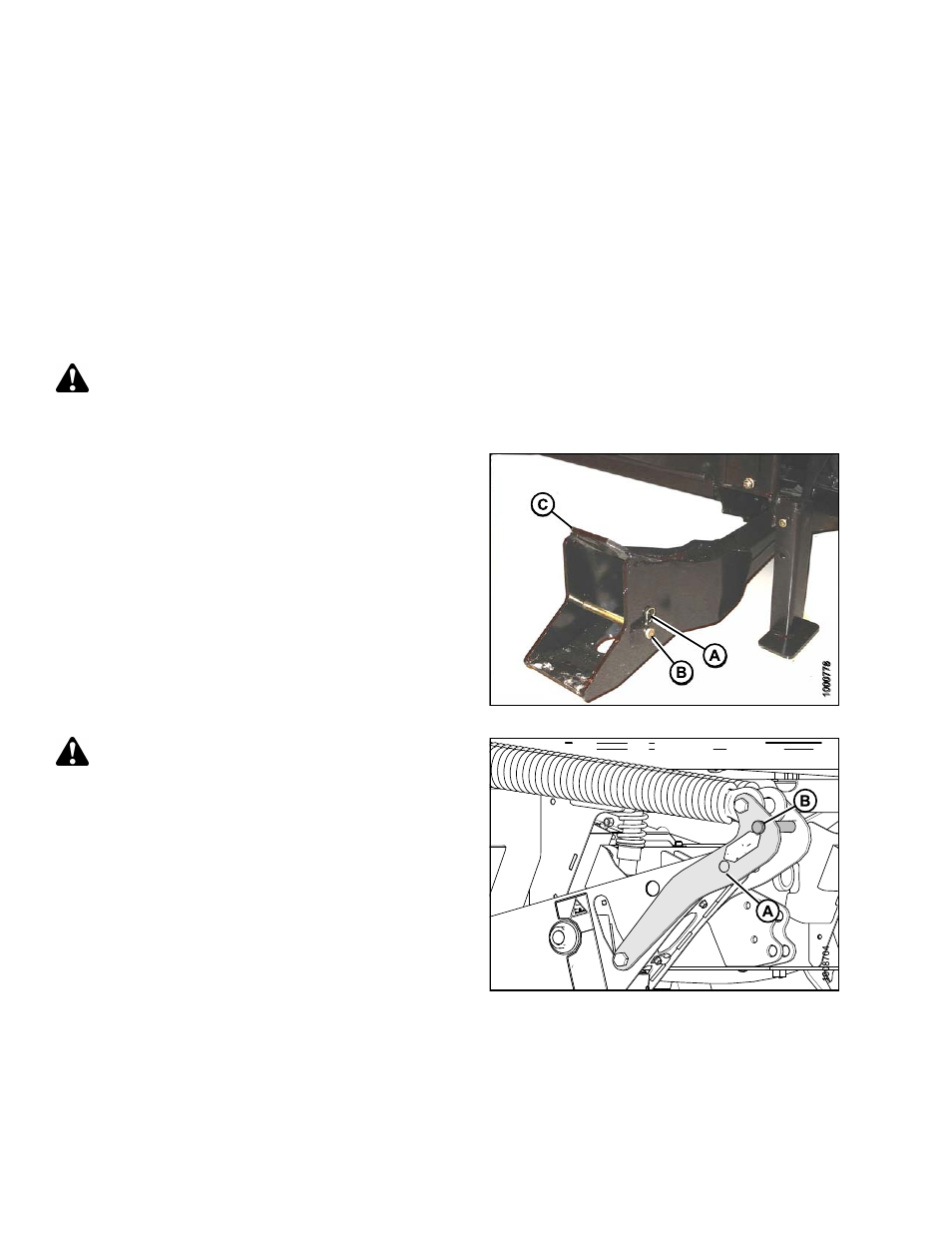

1. Remove hairpin (A) from pin (B) and remove pin from
left and right header boots (C) on header.
Figure 4.157: Header Boot
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT
installed at hole location (A).
Figure 4.158: Header Lift Linkage
169883
180
Revision A
