OPERATOR’S STATION

3.17.4

Console Header Switches

The operator’s console contains switches for the following header functions.

Deck Shift/Float Preset Switch

Draper Header with Deck Shift Option

• Controls deck shifting and float settings for double

windrowing options with a draper header.

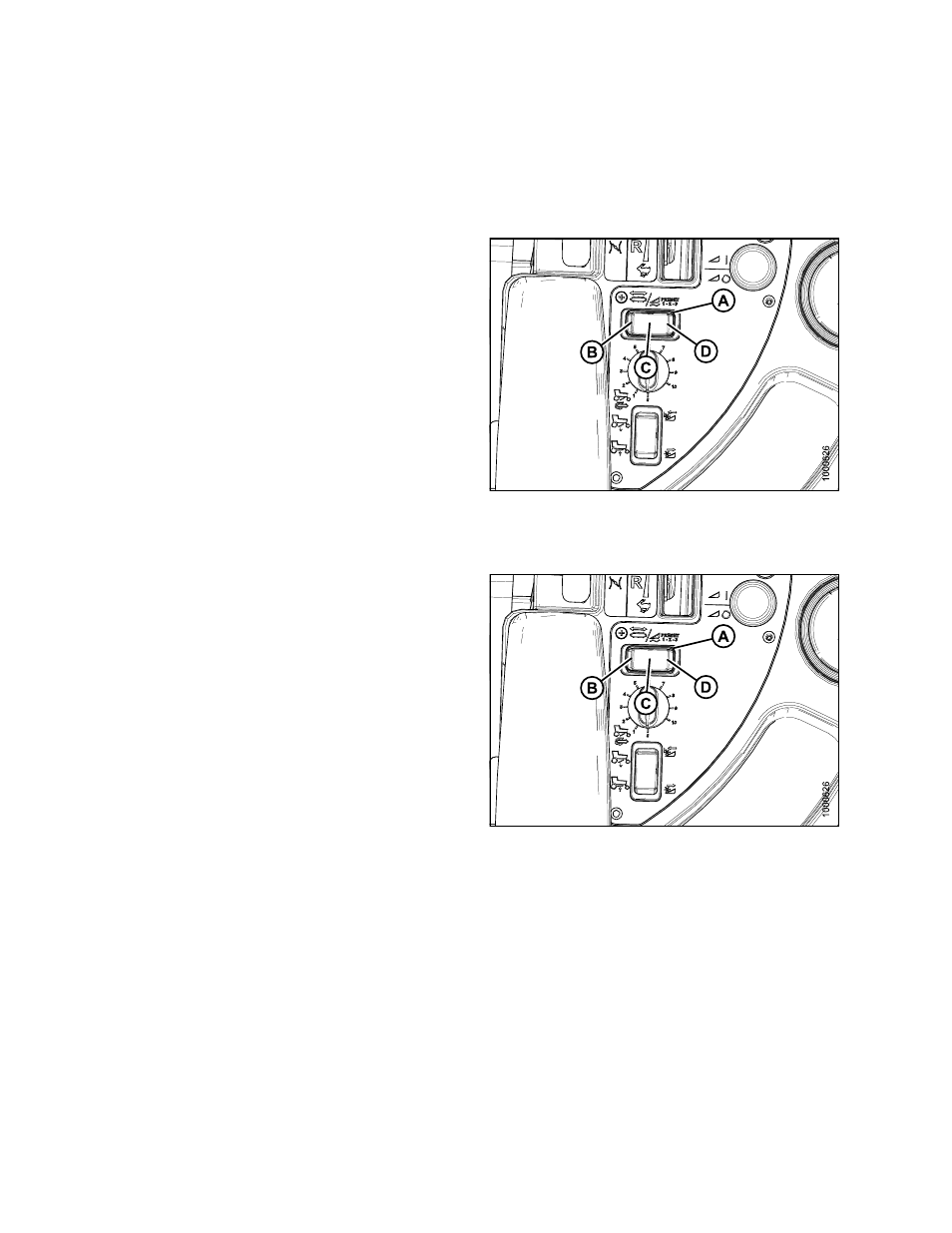

Figure 3.58: Header Switches

A - Deck Shift/Float Preset Switch

B - Left Side Delivery

C - Center Delivery

D - Right Side Delivery

Draper

Header

with

Fixed

Decks/Auger

Header/Rotary Header

• Selects preprogrammed header float settings. Refer

to

Checking Float, page 139

for instructions to preset

the float

NOTE:

Refer to the section in this manual that is
specific to your header for detailed switch
operating modes.

Figure 3.59: Header Switches

A - Deck Shift/Float Preset Switch

B - Float Preset 1

C - Float Preset 2

D - Float Preset 3

169883

70

Revision A
