MAINTENANCE AND SERVICING
Air Conditioning Condenser
The air conditioning condenser should be cleaned daily with compressed air. More frequent cleaning may be
necessary in severe conditions.
Cleaning the condenser can be done at the same time as the radiator, oil cooler, and charge air cooler. Refer to
Maintaining Engine Cooling Box, page 315 .
Air Conditioning Evaporator
The air conditioning evaporator should be checked annually for cleanliness. If the air conditioning system produces
insufficient cooling, a possible cause is clogged evaporator fins. Fins will clog up from the side opposite the
blowers. The evaporator is located inside the heating air conditioning unit under the cab. It is accessed by
removing the cover from the unit.
Removing Air Conditioning Cover
DANGER
Stop engine and remove key from ignition before
leaving operator's seat for any reason. A child or
even a pet could engage an idling machine.

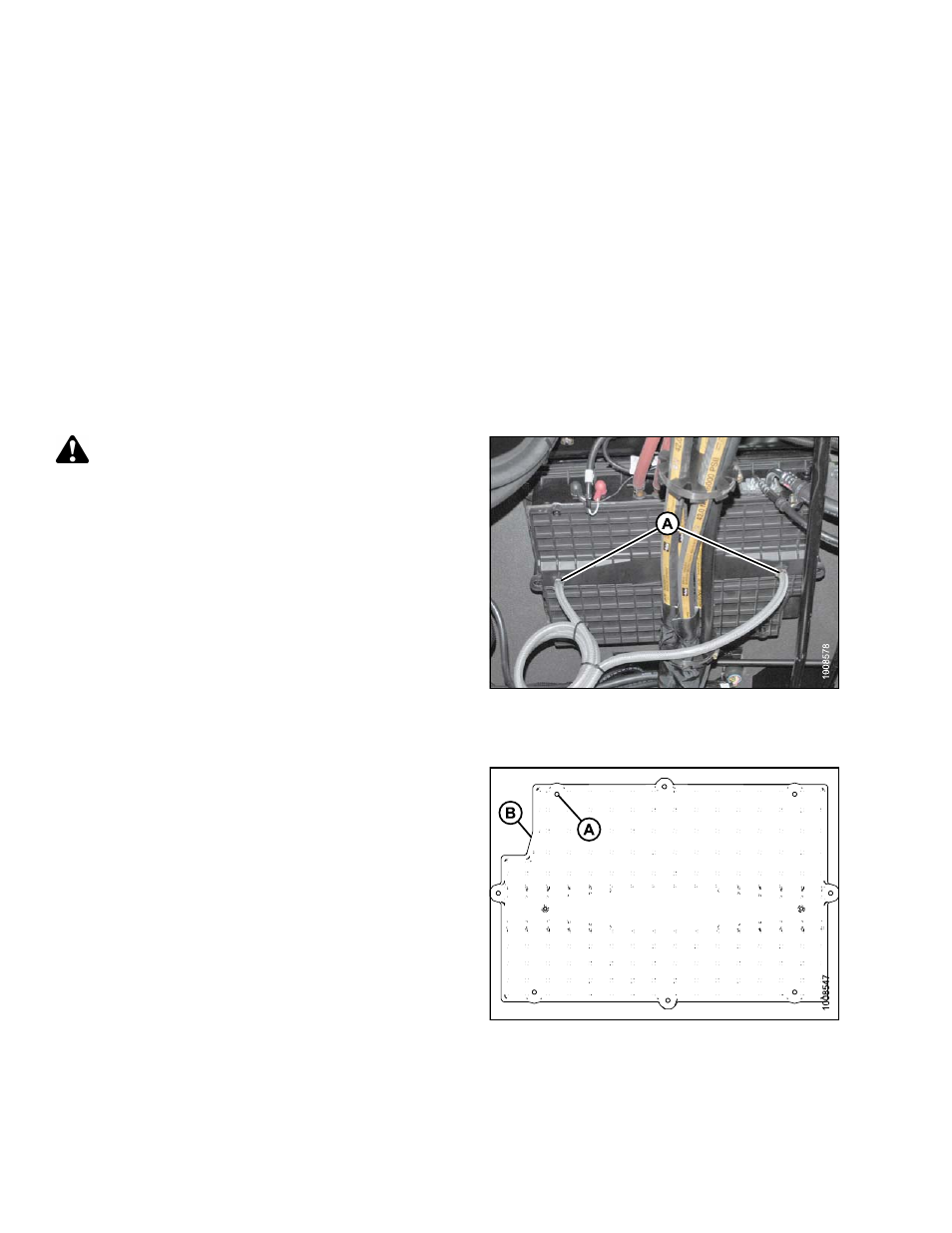

1. Loosen the clamps (A) on the two drain hoses and pull
the hoses off the air conditioning drain tubes.
Figure 5.53: Red Dot HVAC System
2. Remove the eight screws (A) that attach the cover (B)
and remove the cover.
Figure 5.54: Red Dot HVAC System
