Page 102: Operator’s station

3.18.5

Cab Display Module (CDM) Programming

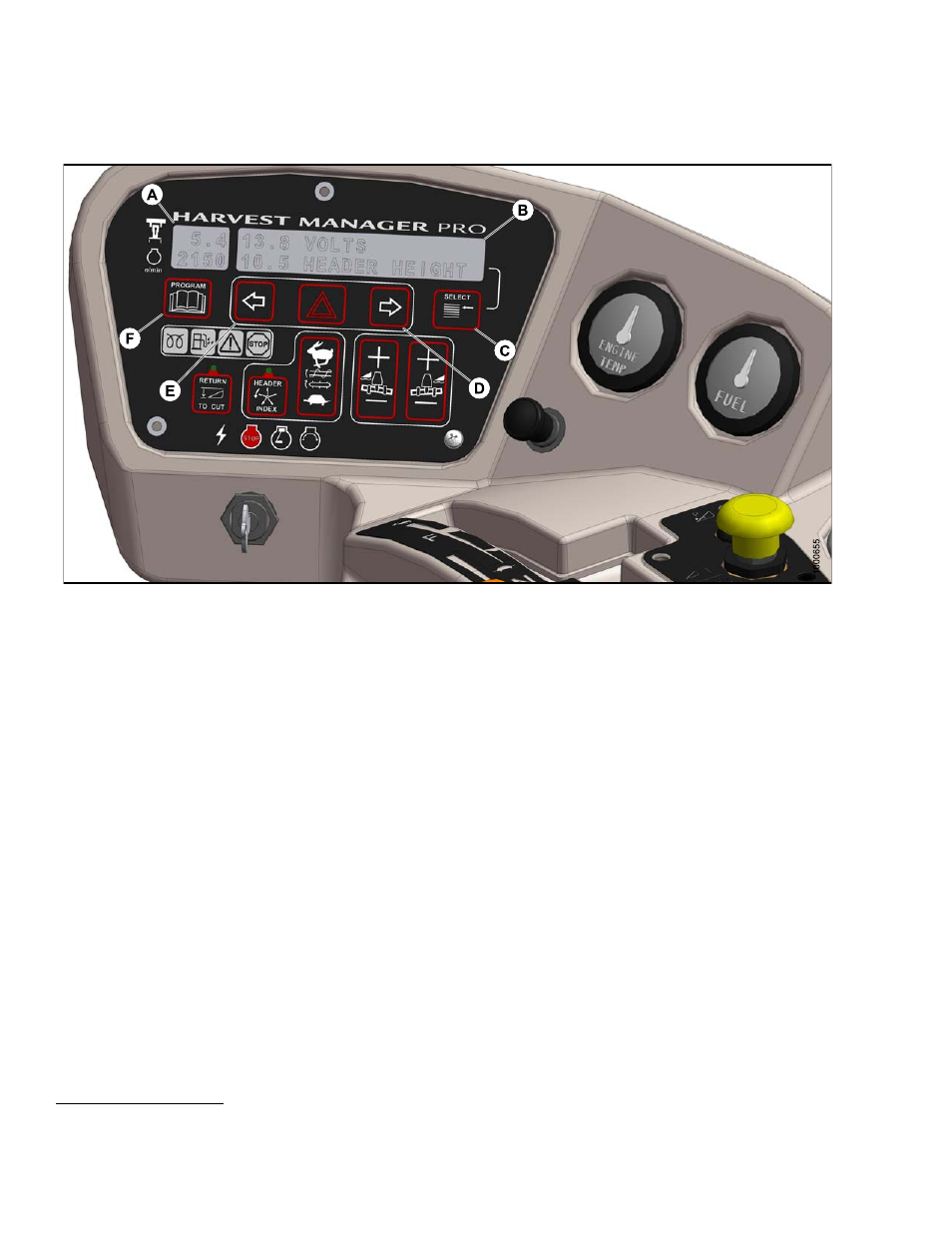

Figure 3.66: CDM

A - Side Display

B - Main Display

C - Select Switch

D - Menu Item Scroll Forward

E - Menu Item Scroll Backward

F - Program Switch

A – SIDE DISPLAY

displays software revision status.

• Upper Line – C### (CDM)

• Lower Line – M### (WCM)

B – MAIN DISPLAY

displays menu item and selection.

• Upper Line – Menu Item

• Lower Line – Selection

C – SELECT SWITCH

places monitor into Program Mode with PROGRAM switch. Press to accept menu item and

advance to next item.

D – MENU ITEM SCROLL FORWARD

displays value under menu item.

• Push to scroll forward

• Hold down for fast scroll

E – MENU ITEM SCROLL BACKWARD

displays value under menu item.

• Push to scroll backward

• Hold down for fast scroll

F – PROGRAM SWITCH

places monitor into program mode. Press while pressing SELECT switch.

12.

Fast scroll applies only when changing KNIFE SPEED, OVERLOAD PRESSURE, and TIRE SIZE.
