OPERATION
4.6.9 Deck Shift (Optional)
The hydraulic deck shift option allows you to control deck position and draper rotation from the operator’s station. It
enables crop delivery from left side, center, or right side of the header.
Deck Shift
CAUTION
Check to be sure all bystanders have cleared the area.
Shift decks as follows:
1. Engage header by pushing down on the yellow
HEADER DRIVE knob, and pulling up on the black
ring at the base of the switch (C).
2. Push the switch (A) to desired delivery position.
Deck(s) will move and direction of drapers will change
accordingly.
3. Operate windrower.

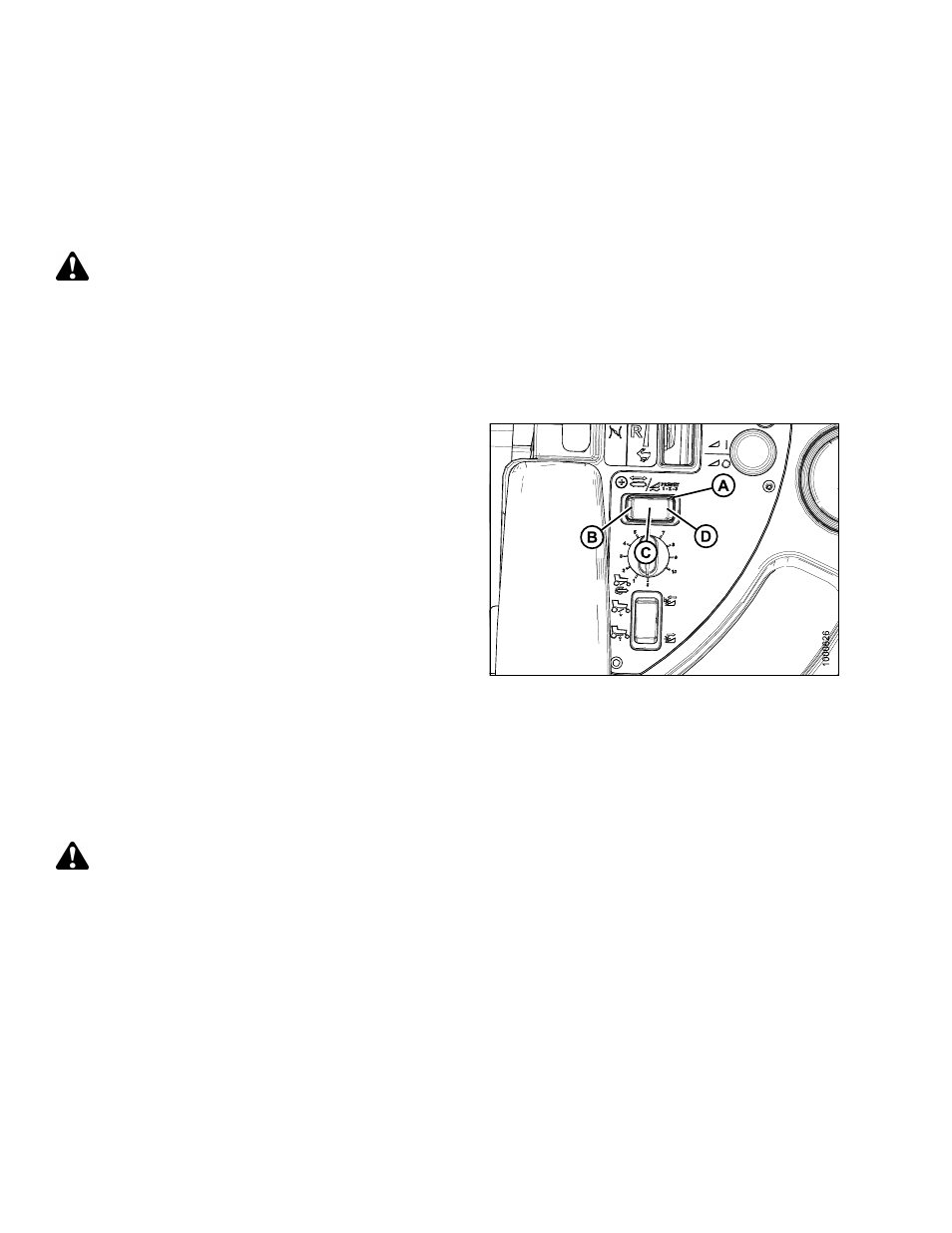

Figure 4.290: Deck Shift Switch
A - Deck Shift Switch B - Left Side Delivery
C - Center Delivery D - Right Side Delivery
Setting Float Options with Deck Shift
For draper headers equipped with the deck shift option, the header float can be set for each position of the decks.
The float is then maintained when the decks are shifted.
CAUTION
Check to be sure all bystanders have cleared the area.
Program the float as follows:
1. Engage header.
