Attaching, R-series, Header – MacDon M155 Operators Manual User Manual
Page 231: Mechanical, Danger

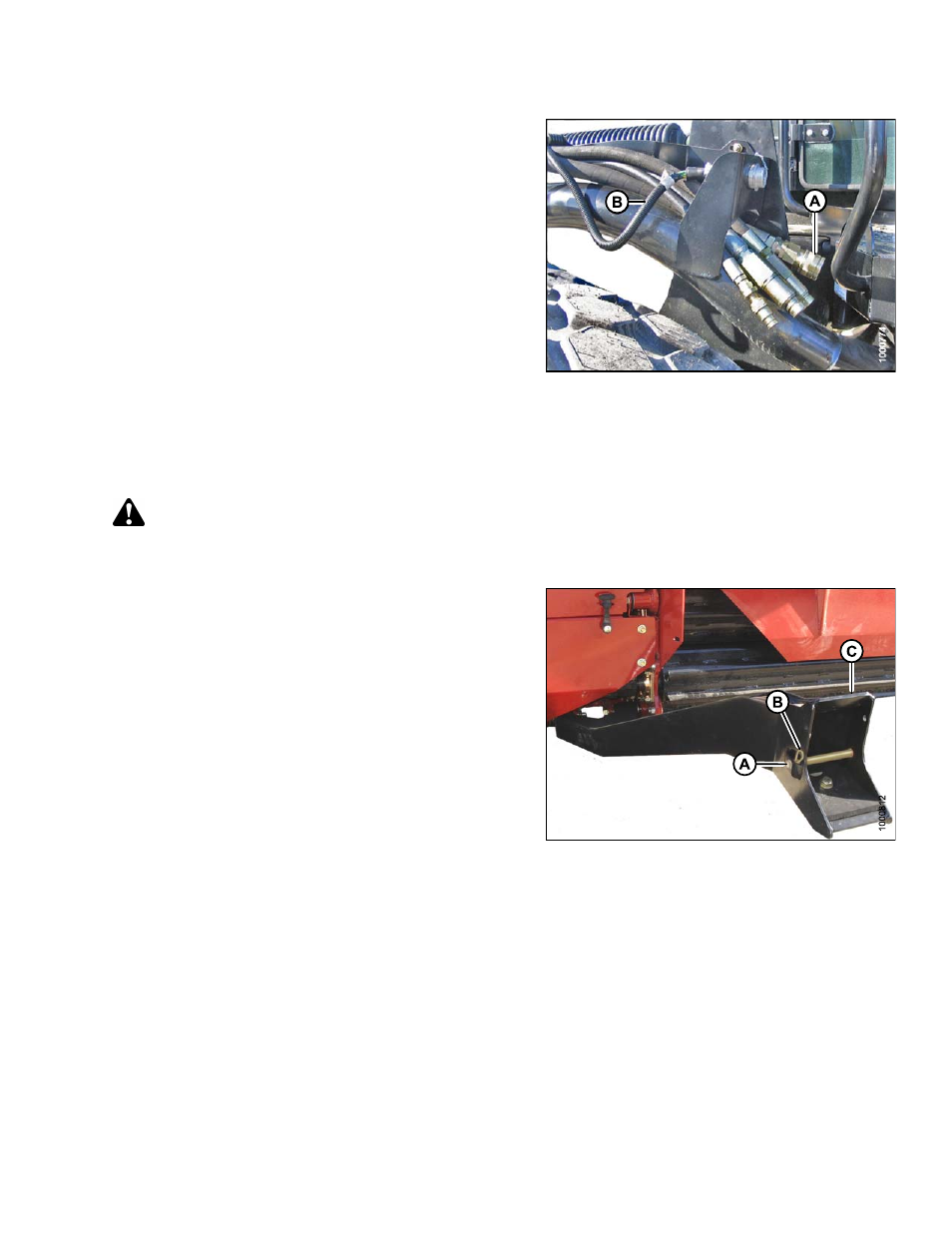

16. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the rotary disc header
operator’s manual.
Figure 4.247: Header Drive Hoses and Harness
Attaching an R-Series Header: Mechanical Center-Link
To attach an R-Series header to an M155 Self-propelled Windrower with the mechanical center-link option,
follow these steps:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Remove hairpin (B) from clevis pin (A) and remove pin
from on left and right header boots (C) on header.
Figure 4.248: Header Boot
169883
215
Revision A
