Commissioning
Acceptance of reloaded profile data
6
6.12
l
6.12−1 EDSVS9332K EN 8.0−07/2013
6.12 Acceptance of reloaded profile data
(
Stop!
When the controller is enabled, you may only transfer profile
data from the background data field (RAM2) to the active data
field (RAM1) if
ƒ the new profile data has only been changed slightly,
ƒ the number of profiles and the number of interpolation points
remains unchanged.
In C1317 you can select the mode for the profile data being transferred from
the background data field (RAM2) to the active data field (RAM1).
ƒ C1317 = 0
– Profile data are accepted with the controller being inhibited
(X5/28 = LOW) (Lenze setting).
ƒ C1317 = 1
– Profile data are accepted with the controller being enabled ("set−up
in the gap").
– The drive may switch to the new profile via the following error
(maximum torque). The best option for changeover is a rest phase or
a phase in which the profile data remains unchanged.
C1303/2
C1305/x C1306
C1304
C1322/7
C1323/7
C1301/x
C1315/x
C1316/x
RSP
&
data
analysis
CDATA−LOAD
C1317

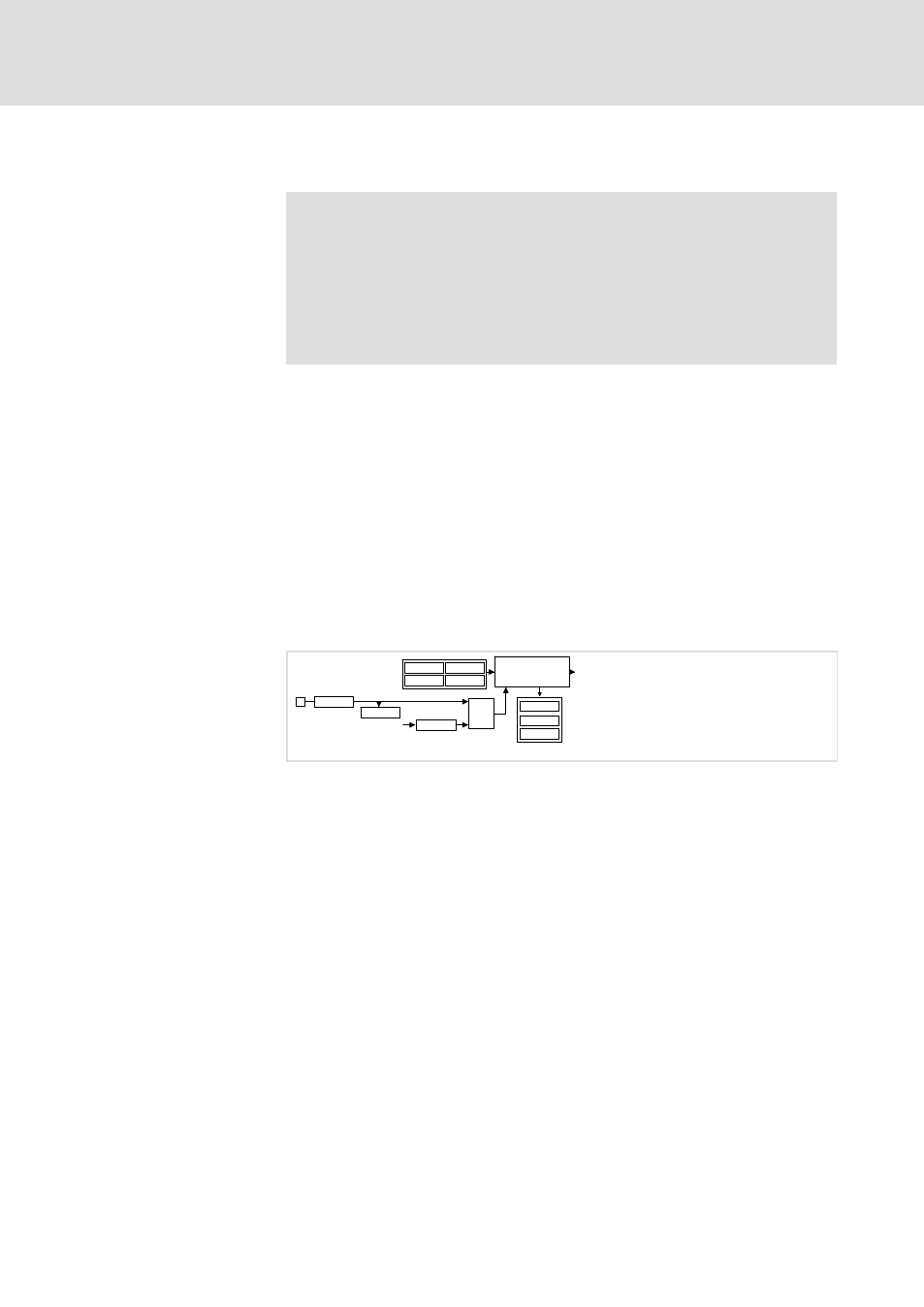

Fig. 6.12−1 Wiring of C1317 in the CDATA function block
ƒ The profile data is accepted at CDATA−LOAD = HIGH. The signal must be
applied for at least 50 ms.
ƒ During the acceptance CDATA−BUSY−LOAD is HIGH
ƒ The acceptance is completed when there is a HIGH−LOW edge at
CDATA−BUSY−LOAD.
Adjustment
