Wiring of the standard device
Standard devices in the power range 15 ... 30 kW
Motor connection
5
5.5
5.5.6
l
5.5−7 EDSVS9332K EN 8.0−07/2013
5.5.6 Motor connection
)
Note!
ƒ Fusing the motor cable is not required.
ƒ The drive controller features 2 connections for motor
temperature monitoring:
– Terminals T1, T2 for connecting a PTC thermistor or thermal
contact (NC contact).
– Pins X8/5 and X8/8 of the incremental encoder input (X8) for
connecting a KTY thermal sensor.
(
Stop!
Do not use lugs as strain relief.
PE
T1
T2
U V W
a
3.4 Nm
30 lb-in
a
0
9300vec131

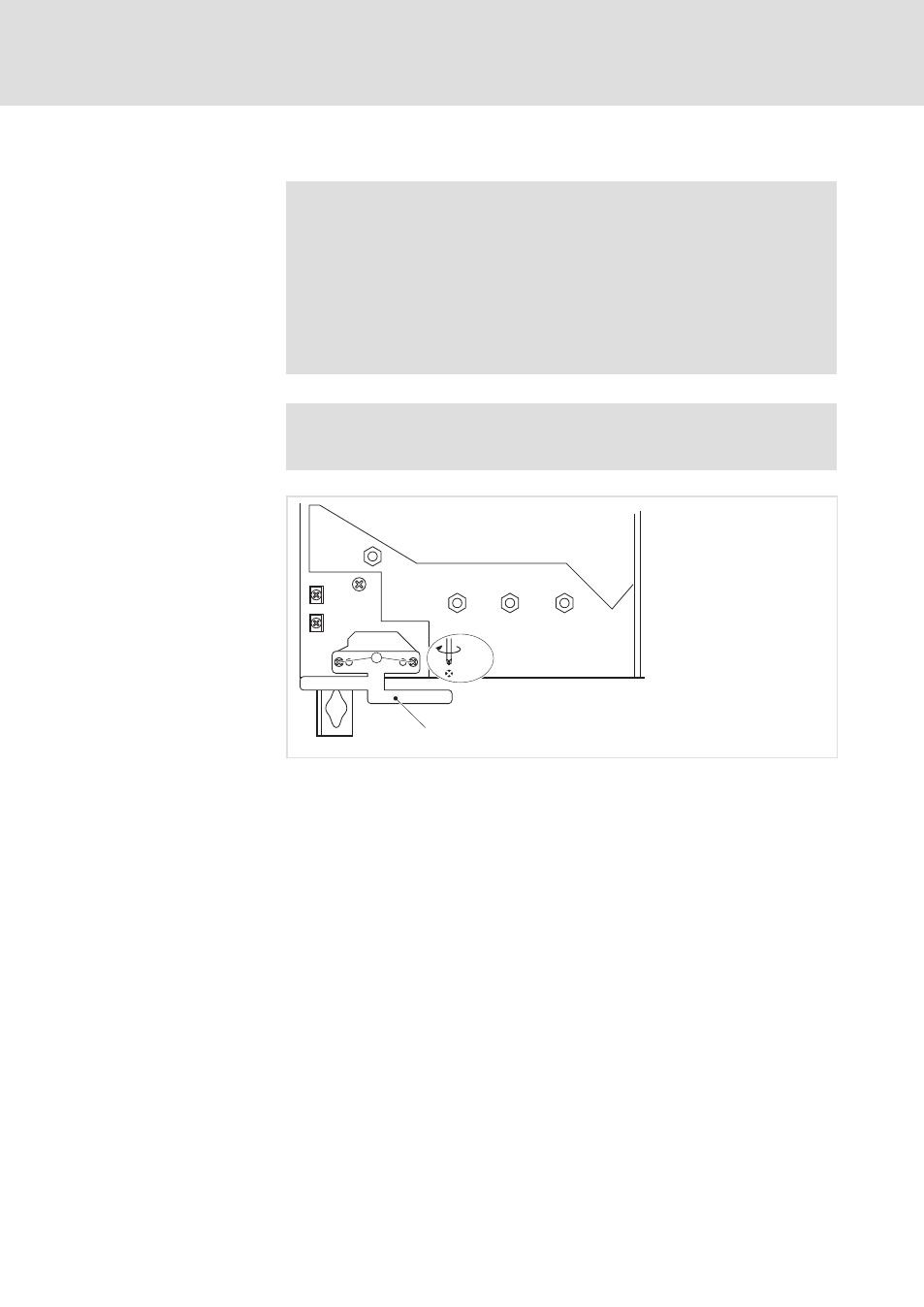

Fig. 5.5−3 Installation of shield sheet for drive controllers 15 ... 30 kW
0 Fasten the shield sheet with two self−tapping screws Ж 4 Ч 14 mm (a)
Shield sheet installation
