Commissioning
Generation of motion profiles
Profile data import
6
6.10
6.10.4
l
6.10−4 EDSVS9332K EN 8.0−07/2013
ƒ Each line contains the X and Y position of an interpolation point.
ƒ For the decimal sign a comma or a point can be used.
ƒ Between the two position specifications, there can be one or several
separators (space or tab character).
ƒ After the two position specifications, an optional comment can follow
in the same line separated at least by a separator and two slashes (//).
ƒ There can be space lines between the position specifications.
ƒ The interpolation points must be sorted in ascending order of the X
positions.
ƒ The file must at least contain two interpolation points.
1
4
7
6
8
5
2
3
9300kur053

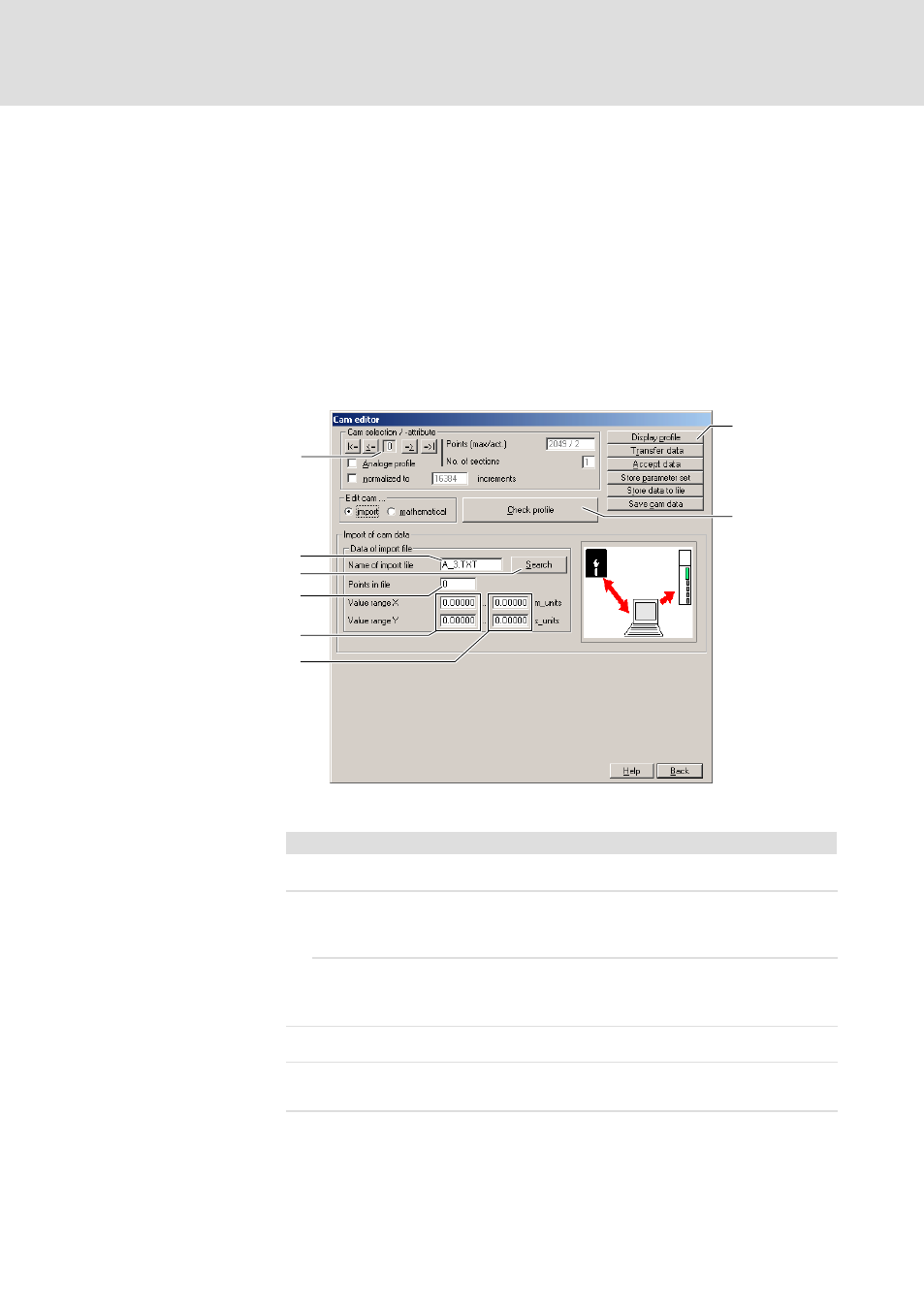

Fig. 6.10−3 Cam editor" dialog box
Procedure
1. Click on field (1) and enter the number of the profile for which you want to import the
data.
2. Select the ASCII file (*.txt) to be imported.
l Enter the path and the file name in field (2) or
l click on the "Search" button (3). In the "Select import file" dialog box you can select the
file directly.
After the file has been selected, the following is displayed:
l Field (4): The number of value pairs (interpolation points) found.
l Field (5): The minimum values in X and Y direction.
l Field (6): The maximum values in X and Y direction
3. Click on button (8) to display the profiles in another dialog box. From this dialog box, the
profiles can be printed.
4. Click on button (7) to calculate the profiles. At the same time it is checked whether there
are faulty entries (e.g. discontinuity of the profile) and whether all required conditions are
met.
