Commissioning
Adjusting the rotor position
6
6.8
l
6.8−2 EDSVS9332K EN 8.0−07/2013
9300std200

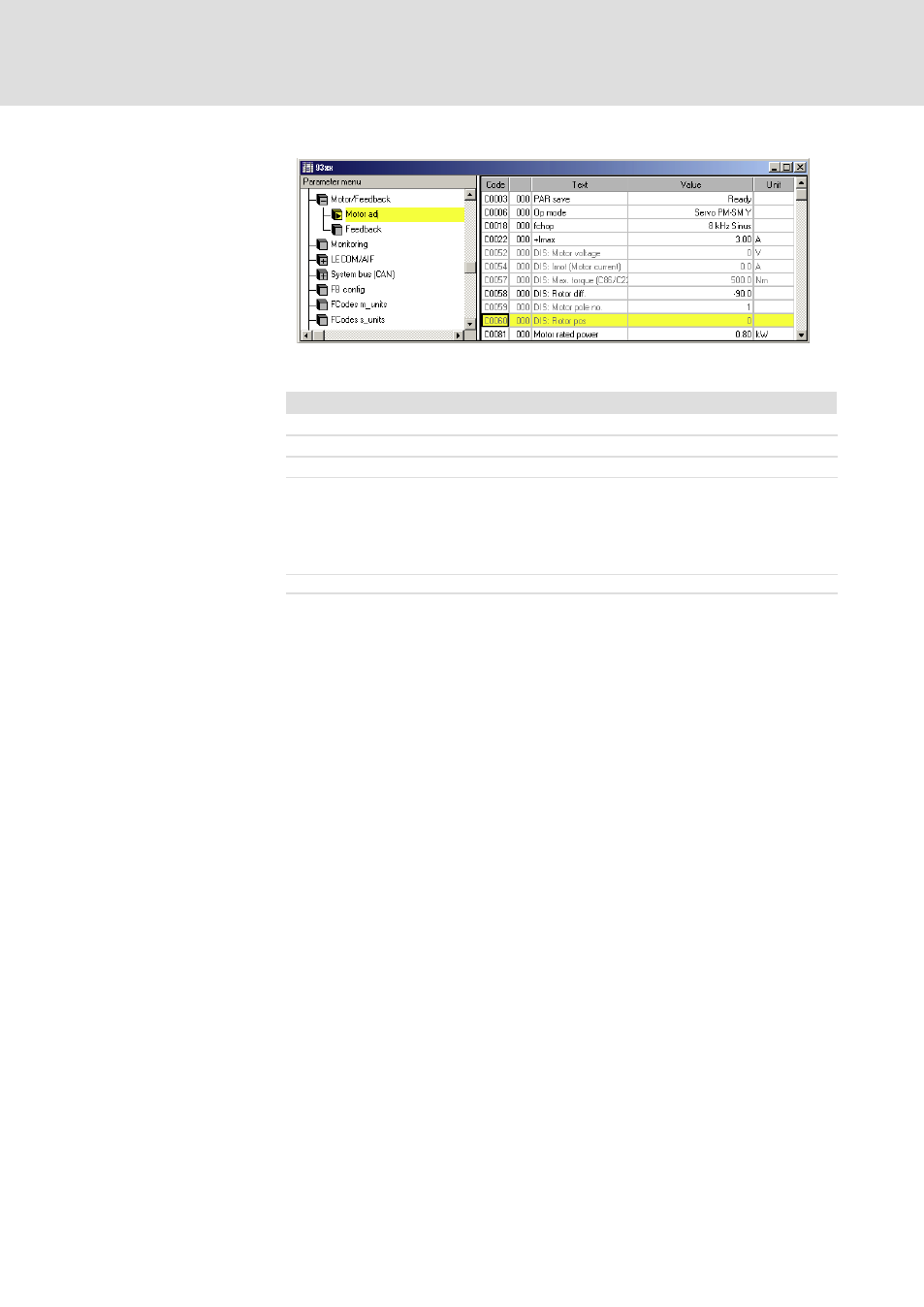

Fig. 6.8−1 "Motor adj" menu of the parameter menu
Procedure
1. Inhibit the controller (X5/28 = LOW).
2. Disconnect the motor from the gearbox/machine.
3. Open the "Parameter menu ® Motor/Feedback ® Motor adj" menu.
4. Turn the rotor to the right (when looking at the front end of the motor shaft). The value in
C0060 must increase.
l In C0060 the angle of rotation is displayed as a numerical value between 0 and 2047.
Note!
The actual value is only displayed if the selection cursor is placed on the code and [F6] is
pressed.
5. If the value decreases, swap the signals at X7/6 and X7/7 (+SIN and −SIN).
Resolver polarity check
