Commissioning
Generation of motion profiles
Saving of motion profiles
6
6.10
6.10.6
l
6.10−6 EDSVS9332K EN 8.0−07/2013
6.10.6 Saving of motion profiles
9300std232

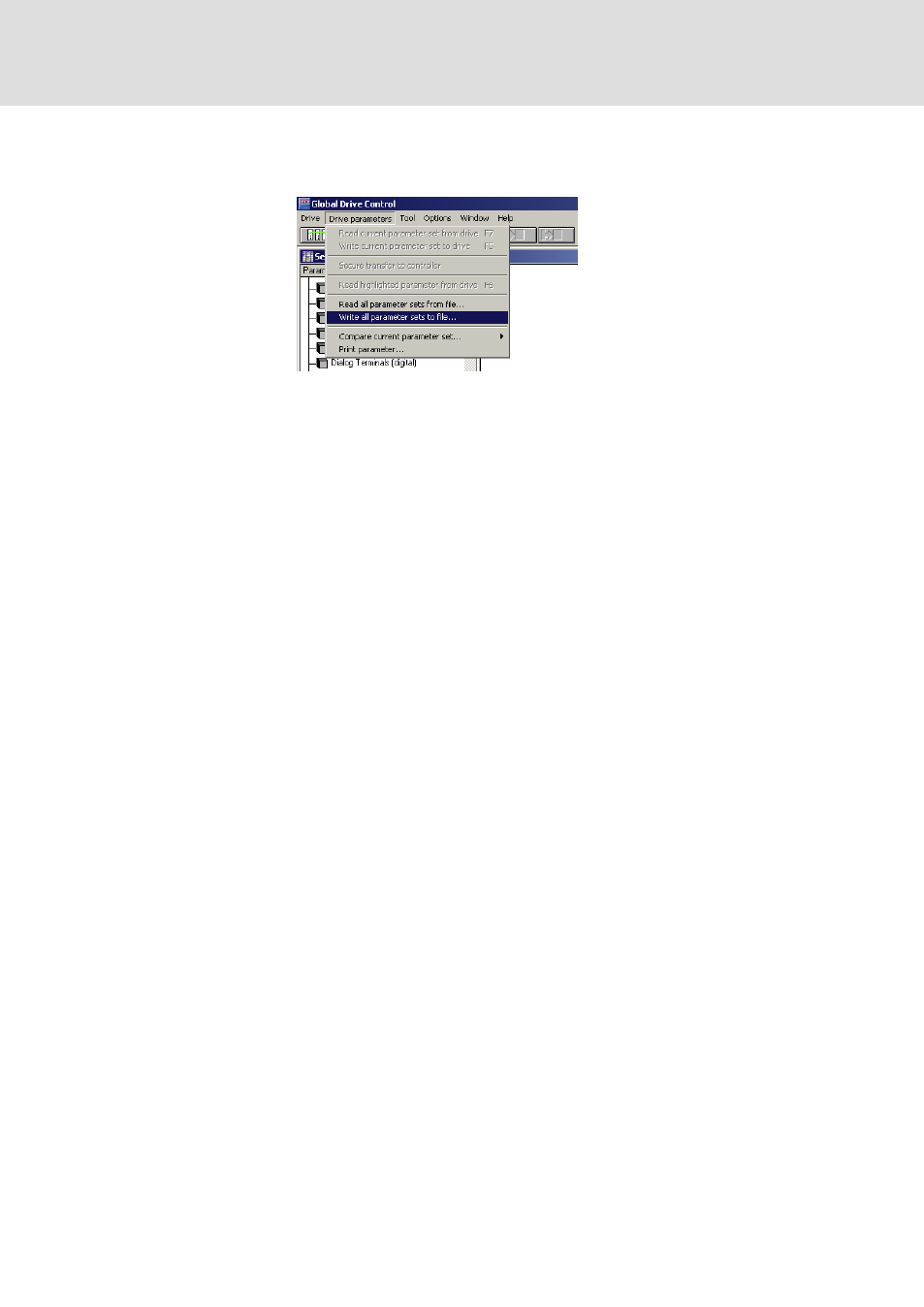

Fig. 6.10−5 "Drive parameters" menu
ƒ Execute Drive parameters
W Write all parameter sets to file ... in the
menu.
ƒ Select the drive and the directory in which the parameter set is to be
saved.
– The parameter set is saved in a GDC file.
– At the same time the profile data are saved in an LCA file.
ƒ When you load a saved parameter set in GDC with the Drive
parameters W Read all parameter sets from file ... command, you are
automatically asked if you want to load the profile data from the
corresponding LCA file.
Saving of the motion profile
in the profile editor using the
parameter set
