Drive PLC Developer Studio
Editors
7-60
l
DDS EN 2.3
7.8.3.4 Zoom action/ transition
Icon: - Menu: ExtrasWZoom action/transition Keyboard: +
Shortcut: +
The action of the first step of the selected block or the transition body of the first transition of the
selected block will be loaded into the editor in the language it was written in.
•
If the action or the transition body is empty, select the language it is to be written in.
7.8.3.5 Delete action/ transition
Icon: - Menu: ExtrasWDelete action/transition Keyboard: -
Use this command to delete the actions of the first step of the selected block or the transition body
of the first transition of the selected block.
•
If either the action, entry action or exit action of a step is implemented, it will be deleted with
this command. Otherwise, a dialog box will appear to select the action or actions to be
deleted.
•
If the cursor is in an IEC step action, only this association will be deleted.
•
If an IEC step with an associated action has been selected, the association will be deleted. IF
the IEC step has several actions, select an action from the dialog box.

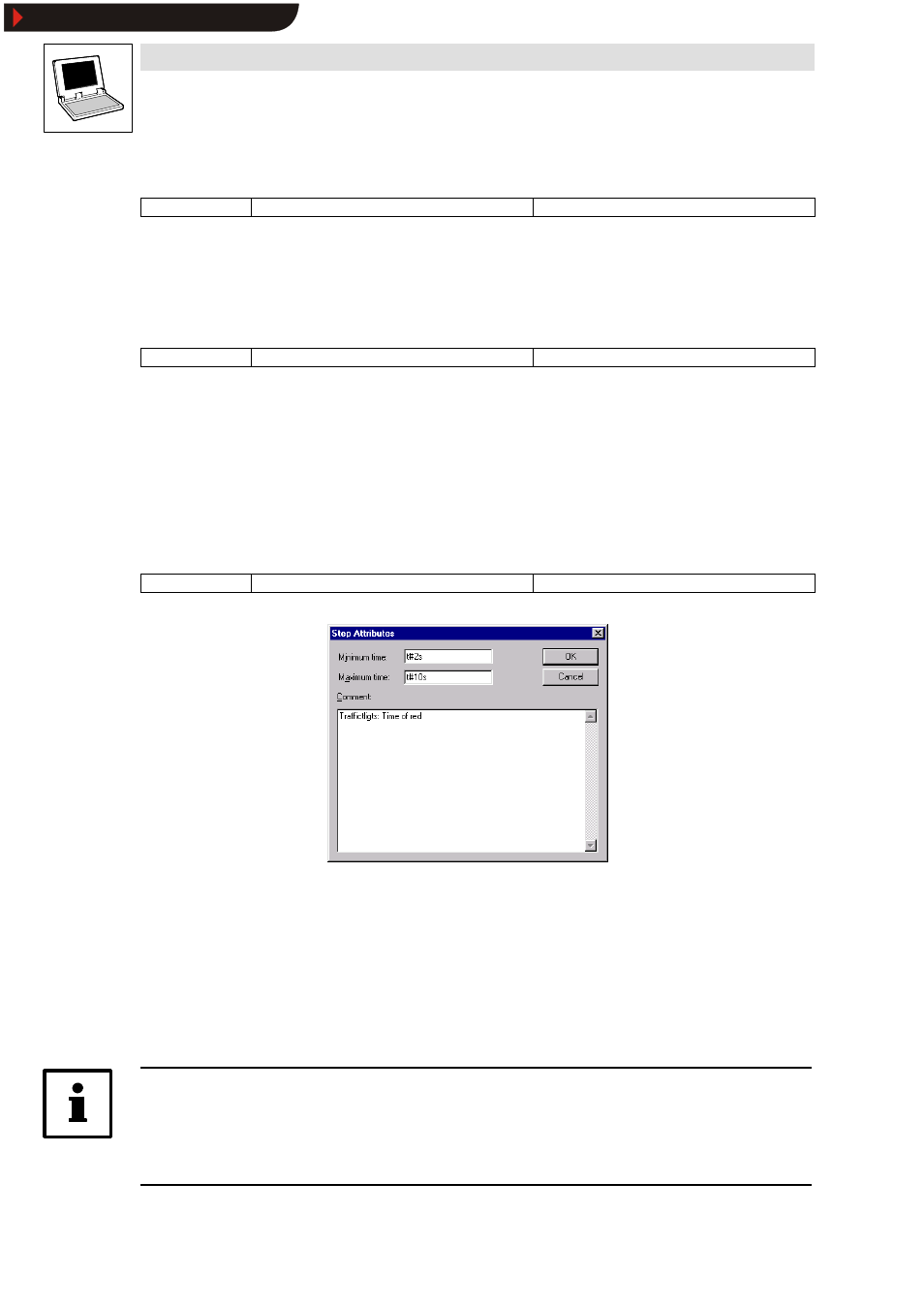

7.8.3.6 Step attributes
Icon: - Menu: ExtrasWStep attributes Keyboard: -
Use this command to open a dialog box for the editing of attributes for the selected step.
Three different entries are possible:
•
Use the input field Minimum time to specify the minimum time for processing this step. (Type
TIME )
Note: Even if the subsequent transition is TRUE , the step will remain active for this time.
•
Use the input field Maximum time to enter the maximum time for processing this step. (Type
TIME )
•
Use the input field Comment to enter a comment for the step.
Use Extras
➞ ➞ ➞ ➞Options to set the SFC editor to display comments or time settings for your steps. The
comment or time setting will then be displayed to the right of the step.
Tip!
SFC flags will be set to signal that the maximum time has been exceeded. These flags can be
interrogated by the user.
The time the step has already been active is displayed in online mode.
