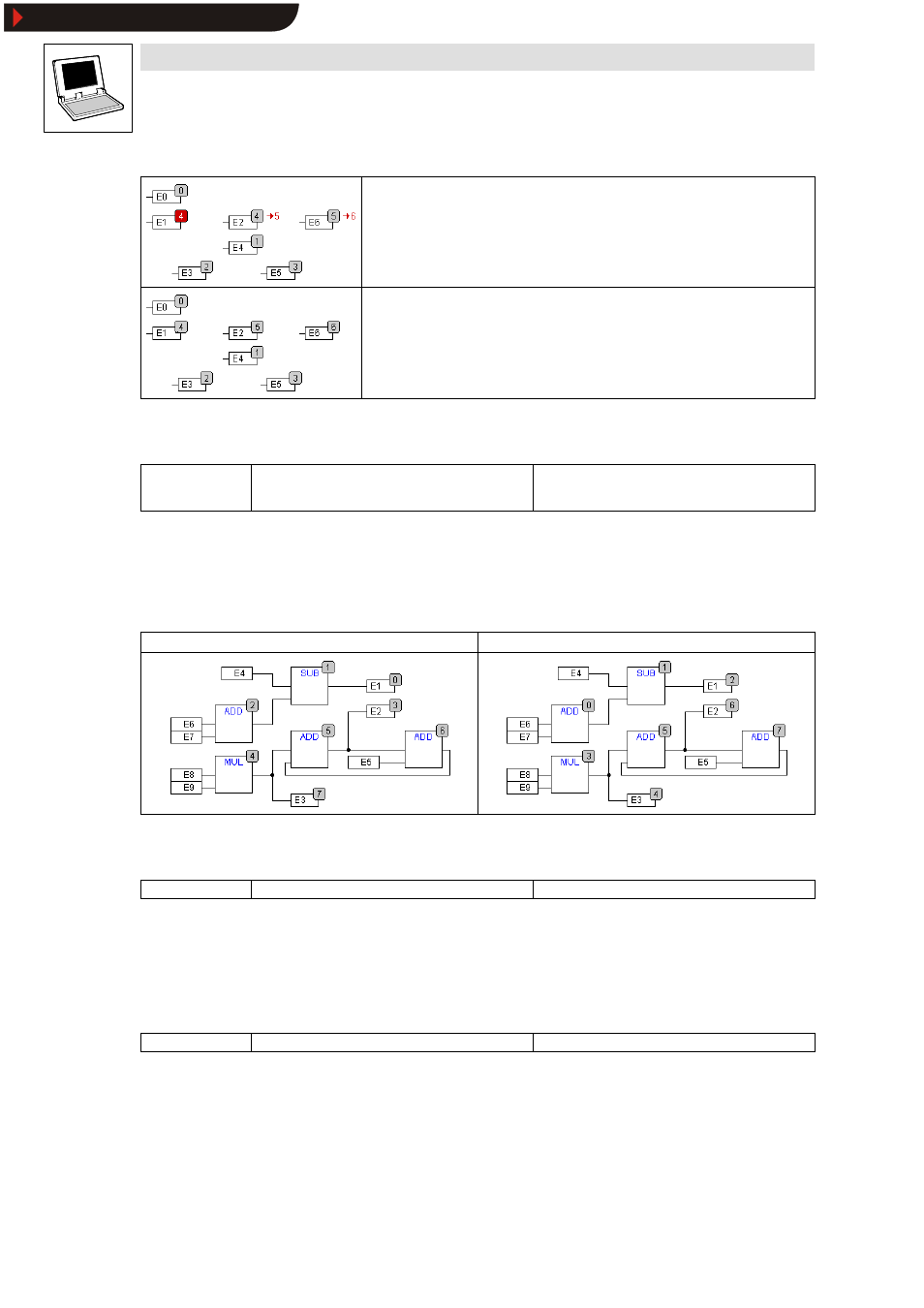

Drive PLC Developer Studio
Editors
7-52
l
DDS EN 2.3
Element E1 will be inserted with the sequence number of the topological descendant (E2),
increasing the sequence numbers of all topological descendants (E2, E6) by 1.
After command execution, the sample sequential function chart will look like this.
7.7.12.3
Arrange in accordance with the data flow
Icon:
-
Menu:
Extras WOrder
WArrange in accordance with the data
flow
Keyboard:
-
Use this command to arrange all elements in accordance with their data flow in the CFC editor.
•
This command is applied to all elements.
•
The processing sequence is determined by the data flow of the elements, not by their
position.
Before command execution:
After command execution:
7.7.12.4
Bring forward by one
Icon:
-
Menu:
ExtrasWOrderWBring forward by one
Keyboard:
-
Use this command to bring all selected elements forward by one position within the sequential
function chart in the CFC editor.
•
This does not apply for the elements at the beginning of the sequential function chart.
7.7.12.5
Send back by one
Icon:
-
Menu:
ExtrasWOrderWSend back by one
Keyboard:
-
Use this command to send all selected elements back by one position within the sequential function
chart in the CFC editor.
•
This does not apply for the elements at the end of the sequential function chart.
