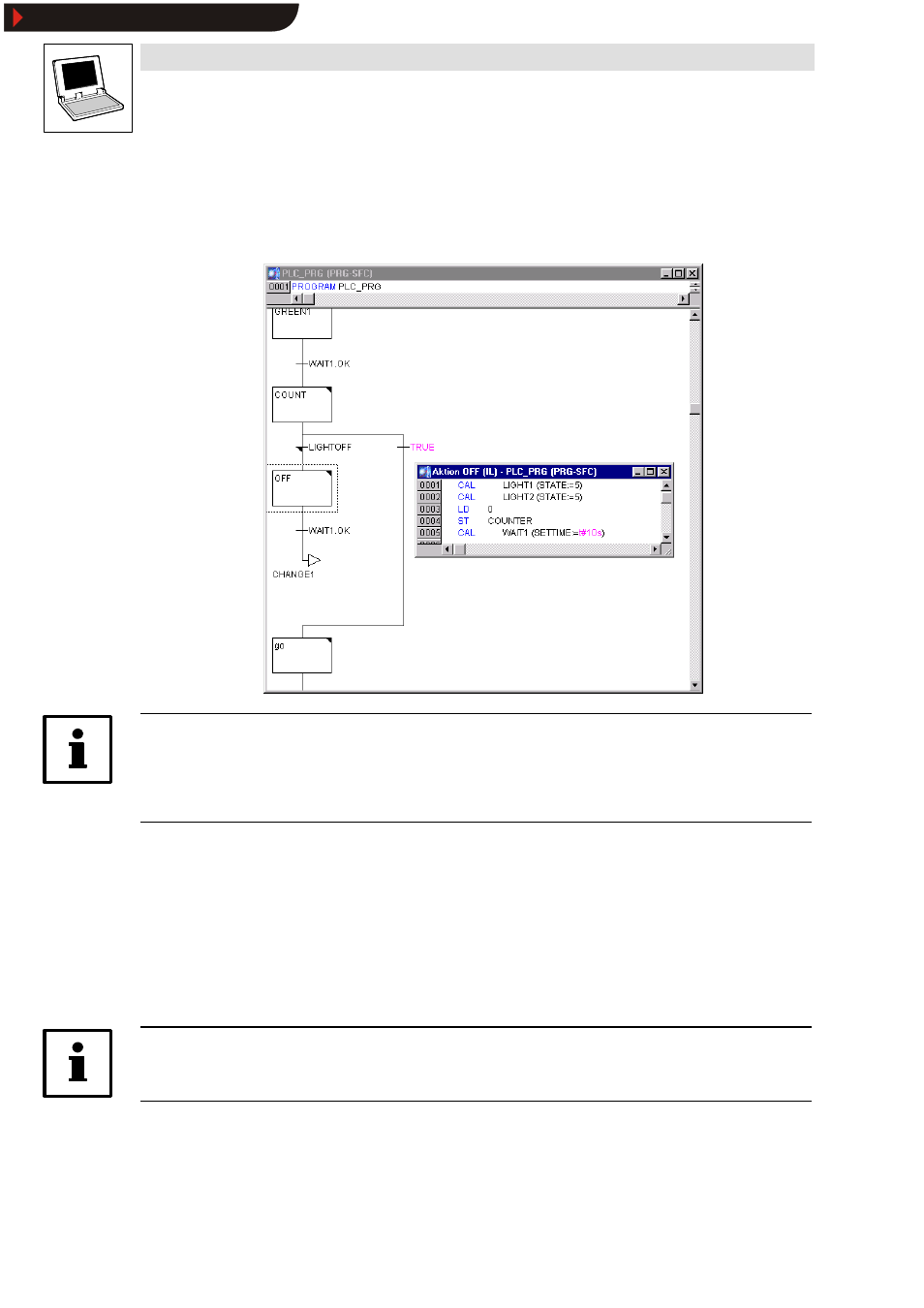

7.8 SFC editor
The graphic Sequential Function Chart editor describes the chronological sequence of various
actions within a program.
Tip!
The most essential commands for the SFC editor are also available in the shortcut menu
(right mouse key)
Tool tips display the full names of transitions, actions, etc.
7.8.1 Selecting blocks
A selected block is a set of SFC elements surrounded by a dotted rectangle.
•
Elements (steps, transitions, jumps) can be selected with a click or the arrow keys.
•
To select a set of several elements, select one and press the key before selecting the
element in the left- or right-hand bottom corner of the set. The resulting set is the smallest
contiguous set of elements containing these two elements.
Tip!
Note that all commands must comply with the language conventions to be executed.
