Drive PLC Developer Studio
Editors
7-36
l
DDS EN 2.3

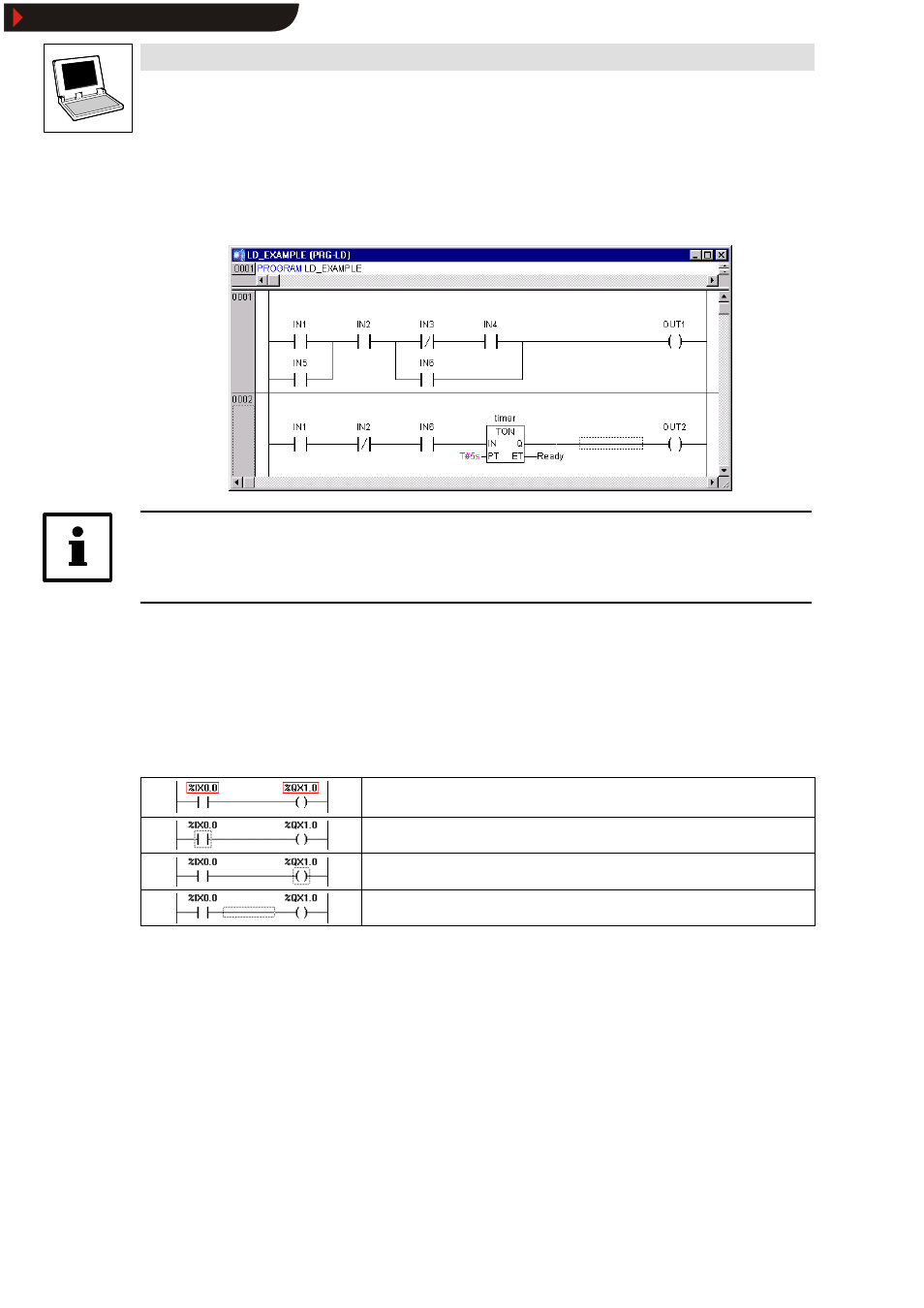

7.6 Ladder diagram editor
The ladder diagram editor is a graphic editor that uses a sequence of networks.
Tip!
The most essential LD editor commands are also available in the shortcut menu
(right mouse key).
7.6.1 Cursor positions in LD
Organization units with EN inputs and other organization units linked thereto are used as in the
function block diagram editor.
The cursor can have the following positions (function block and program calls can be used like
contacts):
Every text field (possible cursor positions identified with a frame)
Every contact or function block
Every coil
The connection link between contact and coil
